1
Engine displacement
autre
2
Year
1996
3
Trim
XLT RMK - 0960956
4
Parts Catalog

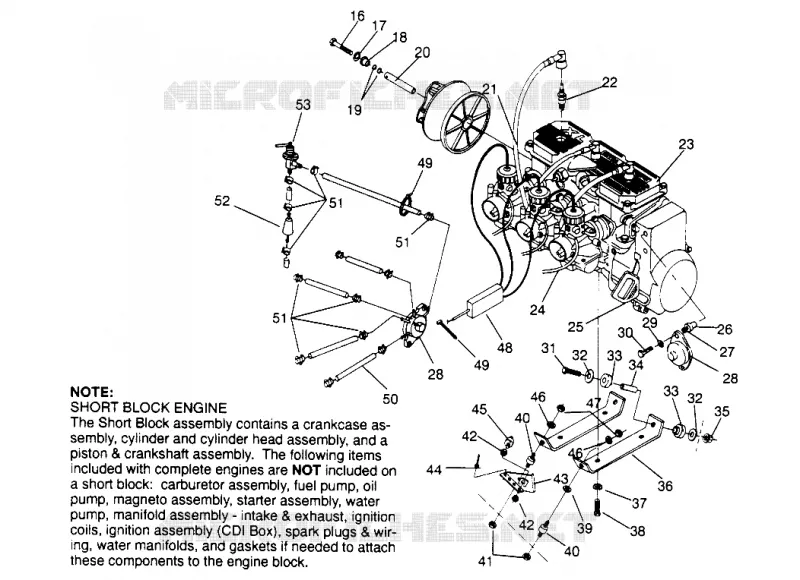

ENGINE MOUNTING XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960 (4931813181C005)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C004)
by
WATER PUMP XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C010)
ENGINE MOUNTING XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960 (4931813181C005)
16
BOLT
7512565
9999999
Not Available
17
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
18
WASHER CLUTCH RETAINER
5010287
$18,89 Unit Price incl. VAT
19
O-RING
5410507
$2,09 Unit Price incl. VAT
20
SPACER
5020513
$60,89 Unit Price incl. VAT
21
CONDUIT CONVOLUTED
4010051
9999999
Not Available
22
SPARKPLUG
3070166
$7,34 Unit Price incl. VAT
23
ENG.(S.B.)EC58PL-03
3084684
9990000
Not Available
24
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
25
HANDLE-RECOIL
5430520
Not Available
26
WELL NUT
7541923
$10,49 Unit Price incl. VAT
27
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
28
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
29
WASHER
7552604
$3,14 Unit Price incl. VAT
30
SCREW
7512279
$1,56 Unit Price incl. VAT
31
SCREW
7512530
$10,49 Unit Price incl. VAT
32
WASHER
7555740
$3,14 Unit Price incl. VAT
33
MOUNT ENGINE
5410390
9999999
Not Available
34
TUBE SPACER
5333354
9999999
Not Available
35
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
36
PLATE MTR.MT RH
5240796
9999999
Not Available
36
PLATE MTR.MT LH
5240795
Not Available
37
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
38
BOLT
7512575
9999999
Not Available
39
WASHER
7555721
$2,09 Unit Price incl. VAT
40
MOUNT
3110022
9999999
Not Available
41
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
42
NUT JAM
7542432
$7,34 Unit Price incl. VAT
43
LIMITER
1011503067
Not Available
44
RIVET
7661637
$2,09 Unit Price incl. VAT
45
MOUNT;TORQUESTOP;RUBBER
3110034
9999999
Not Available
46
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
47
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
48
CABLE THROTTLE W/OIL
7080458
9999999
Not Available
49
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
50
FUEL LINE; 600 CM
8450040600
Not Available
51
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
52
FUEL FILTER
2530008
9999999
Not Available
53
FUEL SHUT OFF VALVE
7052039
9999999
Not Available

Find the detailed ENGINE MOUNTING XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960 (4931813181C005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
