1
Engine displacement
autre
2
Year
1993
3
Trim
STORM SKS - 0932570
4
Parts Catalog
SEAT GAS TANK ASSEMBLY STORM/0932770 AND STORM SKS/0932570 (4923032303002A)
5
Parts Diagram
Parts Catalog
RECOIL STARTER ASSEMBLY STORM/0932770 AND STORM SKS/0932570 (4923032303036A)
by
NOSEPAN Storm/0932770 and Storm SKS/0932570 (4923032303003A)
SEAT GAS TANK ASSEMBLY STORM/0932770 AND STORM SKS/0932570 (4923032303002A)
1
SEAT/TANK ASM (STORM)
2681583
Not Available
1
SEAT/TANK ASM (STORM SKS) (SKS) (Incl. 4 5 7-13 16)
2681586
Not Available
2
COVER SEAT (STORM) (Storm)
2681584
Not Available
2
COVER; SEAT(STORM SKS)
2681598
9999999
Not Available
3
TAILLIGHT BULB
4030024
9999999
Not Available
4
BULB
4030045
9999999
Not Available
5
SCREW
7511840
9999999
Not Available
6
LENS TAILLIGHT
5430423
9999999
Not Available
7
HARNESS TAILLIGHT
2460398
Not Available
8
WASHER
7555746
7555904
$1,56 Unit Price incl. VAT
9
RIVET
7621467
$2,09 Unit Price incl. VAT
10
MOUNT REAR SEAT
1011855
9999999
Not Available
11
HOUSING TAILLIGHT
5431545
9999999
Not Available
12
COVER T/L PROTECTOR
5431436
9999999
Not Available
13
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
14
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
15
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
16
RIVET
7621467
$2,09 Unit Price incl. VAT
17
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
18
COMPRESSION RING
7080402
$3,14 Unit Price incl. VAT
19
LINE FUEL GOODYEAR 1/4SAE#30R
8450040
8450040-600
$136,49 Unit Price incl. VAT
20
SPRING
7042029
$10,49 Unit Price incl. VAT
21
FITTING OUTLET
7052023
$36,74 Unit Price incl. VAT
22
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
23
VENT LINE;1/8;BULK
8360009
8360009-600
$83,99 Unit Price incl. VAT
24
FITTING
7052077
9999999
Not Available
25
CABLE TANK RETENTION
7080473
9999999
Not Available
26
GROMMET GAS TANK
5410745
9999999
Not Available
27
GAS CAP GASKET
5810513
$15,74 Unit Price incl. VAT
28
CAP FUEL W/GAUGE
2511227
2511248
$83,99 Unit Price incl. VAT

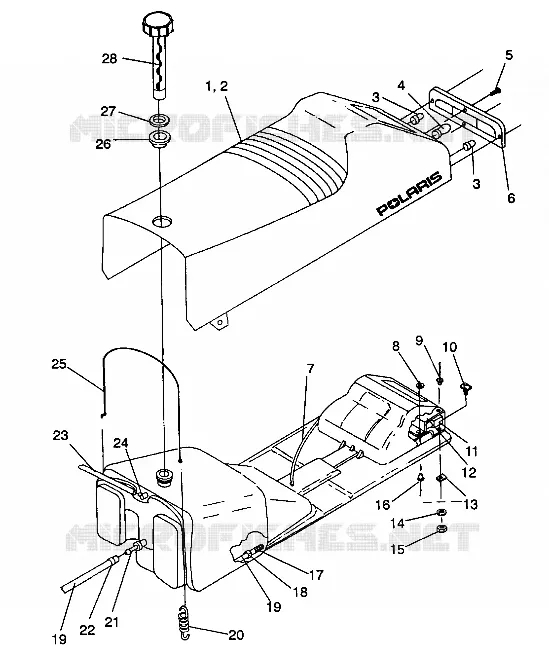

Find the detailed SEAT GAS TANK ASSEMBLY STORM/0932770 AND STORM SKS/0932570 (4923032303002A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
