CHASSIS AND SEAT ALL SWEDISH INDY MODELS (4914521452009A)
-
SEAT 2-UP (650SWED) [No Longer Available] (Incl. 2-8) 650 SKS
2681347
Not Available
-
SEAT ASM.(TRL.DEL.) Substituted by 2200749 (Incl. 35-38 42)
2681335
Not Available
-
CUSHION SEAT(88TRAIL) Substituted by 2200748 (Incl. 75-79) (TRAIL)
2681314
Not Available
-
SEAT 2-UP (400SWED) [No Longer Available] (Incl. 2-81 400 SKS
2681344
Not Available
1
SEAT ASM (#88SPORT) Substituted by 2200747 ((Incl. 75-79) (SPORT)
2681317
Not Available
2
COVER SEAT(#88 TRAIL) Substituted by 2200739 (TRAIL)
2681315
Not Available
2
COVER SEAT (400SWED) [No Longer Available]
2681345
Not Available
2
COVER SEAT (650SWED) [No Longer Available]
2681348
Not Available
2
COVER SEAT(#88 SPORT) Substituted by 2200738 (SPORT)
2681318
Not Available
2
COVER SEAT (TRL.DEL.) [No Longer Available]
2681334
Not Available
3
HOUSING TAILLIGHT
5430425
Not Available
4
BULB TAILLIGHT/TACH/SPEEDO (10)
4030015
$8,39 Unit Price incl. VAT
5
BULB BRAKELIGHT
4030019
9999999
Not Available
6
LENS TAILLIGHT
5430423
9999999
Not Available
7
SCREW
7511840
9999999
Not Available
8
BUCKLE&STRAP (Trail)
2681291
Not Available
8
BUCKLE&STRAP
2681290
9999999
Not Available
8
BUCKLE&STRAP [No Longer Available]
2681293
Not Available
9
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
10
WASHER(10)
7558221
$4,19 Unit Price incl. VAT
11
COVER TANK (400SWED) [No Longer Available]
2681346
Not Available
11
COVER TANK(#88SPORT) Substituted by 2200738 (SPORT)
2681319
Not Available
11
COVER TANK(#88) [No Longer Available] (TRAIL)
2681316
Not Available
11
COVER TANK [No Longer Available]
2681336
Not Available
11
COVER TANK (650SWED) [No Longer Available]
2681349
Not Available
12
GROMMET-GAS TANK
5430575
9999999
Not Available
13
GASKET-GAS CAP
5810142
5810513
$15,74 Unit Price incl. VAT
14
GAUGE GAS
2511149
2511246
$83,99 Unit Price incl. VAT
15
SPRING; TANK
7042020
9999999
Not Available
16
CUSHION TANK H.D.
5420126
9999999
Not Available
17
TANK GAS (Incl. 19-22)
2511150
Not Available
18
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
19
FITTING OUTLET
7052023
$36,74 Unit Price incl. VAT
20
KIT-TANK VENT
2200190
9990000
Not Available
21
VENT FITTING;TANK
5430669
9999999
Not Available
22
PAD-GAS TANK
5810063
9999999
Not Available
23
RIVET
7621457
$2,09 Unit Price incl. VAT
24
PLUG
7080288
Not Available
25
POP RIVET
7621402
$2,09 Unit Price incl. VAT
26
RIVET
7621452
9999999
Not Available
27
POP RIVET
7621330
$2,09 Unit Price incl. VAT
28
CLIP WIRING
4020035
9999999
Not Available
29
HINGE
5211047
9999999
Not Available
30
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
31
RIVET
7621429
$2,09 Unit Price incl. VAT
32
GUARD CLUTCH (SWED.)
1011701
9999999
Not Available
32
GUARD CLUTCH
1011517
9999999
Not Available
33
PIN-CLUTCH COVER
7080216
7080698
$17,84 Unit Price incl. VAT
34
PIN FRONT
7080311
9999999
Not Available
35
TUNNEL ASM.(400SKS)
1011676
Not Available
35
TUNNEL ASM.(650SKS) Substituted by 1011676
1011695
Not Available
35
TUNNEL (TRAIL) (TRAIL)
1011663
Not Available
35
TUNNEL ASM. (SKS) [No Longer Available] (SKS Only) w/1011694 (TRAIL)
1011675
Not Available
35
TUNNEL (SPORT) (SPORT)
1011662
Not Available
36
DESC NOT_AVAILABLE
5224348
Not Available
36
BUMPER;R.(N-INDY)
5224347
5224347-067
Not Available
37
DECAL TRACK Substituted by 7072872
7072132
Not Available
38
PANEL TUNNEL BACK Substituted by 5220478-067
5220478
Not Available
38
PANEL CLOSE-OFF REAR Substituted by 1011694-067 (Trail SKS Only)
1011694
Not Available
39
FLAP SNOWSILVER
5410394
5410394-1038
$194,24 Unit Price incl. VAT
40
RIVET
7621418
$2,09 Unit Price incl. VAT
41
BRKT R.SUSP LH MTG. Substituted by 1011749-067
1011666
Not Available
41
BRKT R.SUSP RH MTG. Substituted by 1011750-067
1011667
Not Available
42
FOOTREST RH REAR
5220894
9999999
Not Available
42
FOOTREST LH REAR
5220893
9999999
Not Available
43
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
44
BOLT
7512103
$6,29 Unit Price incl. VAT
45
RIVET(10)
7621222
9999999
Not Available
46
PLATE;TUNNEL;RH
5220635
9999999
Not Available
46
PLATE;TUNNEL;LH
5220634
9999999
Not Available
47
FOAM FILLER
5810201
Not Available
48
STRAP GAS TANK
5221722
9999999
Not Available
49
LINE FUEL (FT.)
8450003
8450003-1525
$136,49 Unit Price incl. VAT
50
BULKHEAD (TRAIL) (Trail)
1011612
Not Available
50
BULKHEAD (SPORT>) (Sport)
1011615
Not Available
50
DESC NOT_AVAILABLE (Incl. 51-53) 400 SKS
1011660
Not Available
50
DESC NOT_AVAILABLE (Incl. 51-53) 650 SKS
1011661
Not Available
51
SUPPORT MUFFLER Substituted by 1011601-067
1011601
Not Available
52
BRACKET
5221932
9999999
Not Available
53
RIVET(10)
7621301
9999999
Not Available
54
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
55
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
56
PAD LH FOOT SAFETY
5830007
9999999
Not Available
56
PAD RH FOOT SAFETY
5830008
9999999
Not Available
57
DECAL(47.5##)TUNNEL [No Longer Available]
7072078
Not Available
58
BRACKET; HINGE
5220406
5241437
Not Available
59
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
60
FOOTREST ASM LH
2200250
Not Available
60
FOOTREST ASM RH
2200254
Not Available
61
BRKT.
5220542
5220542-067
Not Available
62
SNAP-MALE
7080227
9999999
Not Available
63
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
64
DECAL WARNING [No Longer Available] (600 SE)
7072153
Not Available
65
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
66
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
67
SPACER R.BUMPER [No Longer Available]
5211109
Not Available
68
GRABBAR RH Substituted by 1011730-067
1011697
Not Available
68
GRABBAR LH Substituted by 1011729-067
1011696
Not Available
69
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
70
BOLT
7512240
9999999
Not Available
71
BACKREST ASM (400SCAND.) Substituted by 2681333 (Incl. 72) 400 SKS
2681357
Not Available
71
BACKREST ASM. [No Longer Available]
2681333
Not Available
71
BACKREST ASM.
2681356
9999999
Not Available
72
COVER BACKREST [No Longer Available]
2681332
Not Available
72
COVER BACKREST Substituted by 2681332
2681355
Not Available
72
COVER BACKREST
2681265
9999999
Not Available
73
KNOB ADJ.
7030007
9999999
Not Available
74
WASHER
7552604
$3,14 Unit Price incl. VAT
75
SCREW (10) [No Longer Available]
7511937
Not Available
76
GRIP; HAND
5431015
9999999
Not Available
77
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
78
BOLT
7512325
$4,19 Unit Price incl. VAT
79
CAP BUMPER
5430930
9999999
Not Available
80
SCREW
7511848
$7,34 Unit Price incl. VAT
81
SCREW
7511856
9999999
Not Available
82
REFLECTOR
5430781
Not Available
83
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
83
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
84
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
84
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
85
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
86
BRACKET; HITCH
5220941
9999999
Not Available
86
PLATE;HITCH MOUNT
5220942
9999999
Not Available
87
BOLT
7515444
7515521
$7,34 Unit Price incl. VAT
88
WASHER
7555803
9999999
Not Available
89
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
90
PLATE BACKING Substituted by 5211122-067
5211122
Not Available
91
DECAL
7072414
9999999
Not Available
92
TUNNEL REINFORCEMENT [No Longer Available] (SPORT)
5220395
Not Available

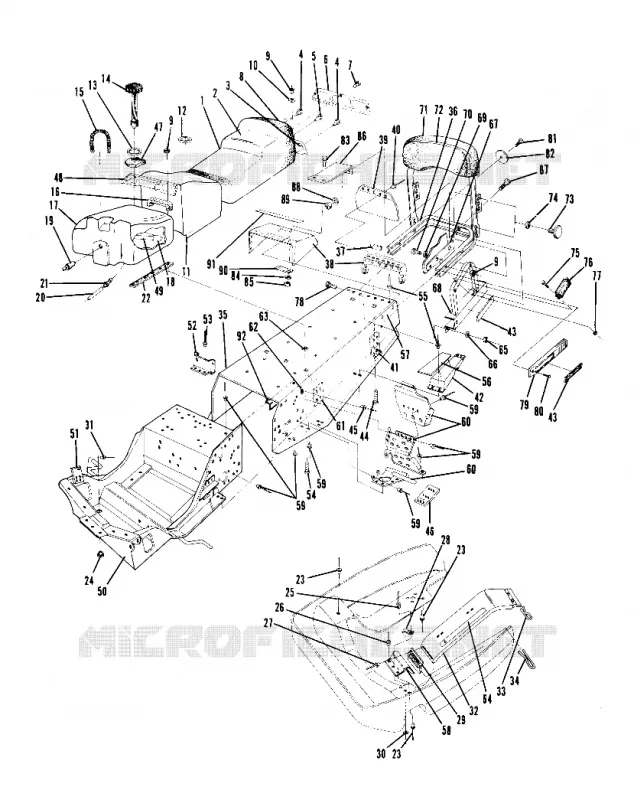

Find the detailed CHASSIS AND SEAT ALL SWEDISH INDY MODELS (4914521452009A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
