GEARCASE ASSEMBLY; RGR 570
1334341
$7 297,49 Unit Price incl. VAT
1
PLUG; M18 X 1.5
3234755
$52,49 Unit Price incl. VAT
2
SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM
3234756
$57,74 Unit Price incl. VAT
3
SCREW; TORX PAN HD M6 X 1 X 16
3234309
$13,64 Unit Price incl. VAT
4
HEX HEAD FLANGE SCREW 8MMX1.25MMX30MM
3234898
$17,84 Unit Price incl. VAT
5
SCREW
3235206
$13,64 Unit Price incl. VAT
6
SCREW
3235207
$19,94 Unit Price incl. VAT
7
SCREW 6 MM X 1.0 MM 40 MM
3235208
$20,99 Unit Price incl. VAT
8
SOCKET HEAD SCREW; 6 MM X 1 MM X 18 MM
3235332
$7,34 Unit Price incl. VAT
9
SCREW CAP; 8 MM X 1.25 MM X 20 MM
3236169
$17,84 Unit Price incl. VAT
10
HEXFLANGE NUT; NYLON; 8 MM X 1.25 MM
3235210
$14,69 Unit Price incl. VAT
11
CUP WASHER
3234091
$17,84 Unit Price incl. VAT
12
WASHER
3235211
$19,94 Unit Price incl. VAT
13
WASHER
3235212
$25,19 Unit Price incl. VAT
14
WASHER 22.5 X 30 X 1.5
3236410
$14,69 Unit Price incl. VAT
15
PIN; DOWEL; 6 X 20
3234330
$13,64 Unit Price incl. VAT
16
SPRING-SLOTTED PIN;6MM
7043746
$15,74 Unit Price incl. VAT
17
DOWEL PIN; 3 X 40
3236286
$25,19 Unit Price incl. VAT
18
PIN DOWEL 6X10
3236295
$20,99 Unit Price incl. VAT
19
SNAP RING
7710434
$7,34 Unit Price incl. VAT
20
SNAP RING
3233106
$10,49 Unit Price incl. VAT
21
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
22
RETAINING RING
3233364
$12,59 Unit Price incl. VAT
23
RING RETAININGBASICINTRNL2.047
3234269
$17,84 Unit Price incl. VAT
24
RETAINING RING
3234090
$19,94 Unit Price incl. VAT
25
RETAINING RING
3234205
$20,99 Unit Price incl. VAT
26
RETAINING RING
3235214
$17,84 Unit Price incl. VAT
27
RETAINING RING
3235216
$19,94 Unit Price incl. VAT
28
PINION SHAFT
3235429
$330,74 Unit Price incl. VAT
29
THRUST WASHER
3233378
$17,84 Unit Price incl. VAT
30
THRUST WASHER; .446 X .88 X .025
3234642
$19,94 Unit Price incl. VAT
31
SHIM 1.180 X .995(9)
3234272
$68,24 Unit Price incl. VAT
32
SHIM; 2.040 OD X 1.630 ID
3234273
$26,24 Unit Price incl. VAT
33
NEEDLE BEARING
3233014
$74,54 Unit Price incl. VAT
34
BEARING
3233019
$54,59 Unit Price incl. VAT
35
BEARING
3233020
$80,84 Unit Price incl. VAT
36
BALL BEARING
3233268
$88,19 Unit Price incl. VAT
37
BALL BEARNING
3234065
$80,84 Unit Price incl. VAT
38
NEEDLE BEARING
3233384
$54,59 Unit Price incl. VAT
39
BALL BEARING
3235218
$101,84 Unit Price incl. VAT
40
BALL BEARING
3234652
$27,29 Unit Price incl. VAT
41
COMPRESSION SPRING
3233830
$19,94 Unit Price incl. VAT
42
COMPRESSION SPRING
3234078
$47,24 Unit Price incl. VAT
43
COMPRESSION SPRING
3234089
$52,49 Unit Price incl. VAT
44
TORSION RETURN SPRING
3234276
$16,79 Unit Price incl. VAT
45
SPRING COMPRSSN.54ODX.44IDX.05
3234277
$26,24 Unit Price incl. VAT
46
SPRING WASHER
3235327
$17,84 Unit Price incl. VAT
47
SNORKLE TUBE
3234278
$188,99 Unit Price incl. VAT
48
SHIFT DRUM
3235463
$519,74 Unit Price incl. VAT
49
DIFFERENTIAL CARRIER; MACHINED
3236287
$314,99 Unit Price incl. VAT
50
SECTOR GEAR; 16 TOOTH
3233839
$68,24 Unit Price incl. VAT
51
SECTOR GEAR; 31 TOOTH CUT TO 11 TOOTH
3233832
$68,24 Unit Price incl. VAT
52
FORK SHIFT
3235455
$173,24 Unit Price incl. VAT
53
PARK PLATE
3235456
$73,49 Unit Price incl. VAT
54
DETENT STAR
3235603
$73,49 Unit Price incl. VAT
55
IDLER SHAFT; 29 TOOTH
3235223
$204,74 Unit Price incl. VAT
56
REVERSE SHAFT 25T
3235451
$272,99 Unit Price incl. VAT
57
GEAR OUTPUT 14T MACH
3236290
$309,74 Unit Price incl. VAT
58
GEAR 53T OUTPUT
3236291
$488,24 Unit Price incl. VAT
59
GEAR OUTPUT 14T DISCONNECT MAC
3236289
$314,99 Unit Price incl. VAT
60
SHAFT FRONT OUTPUT LONG
3236439
$246,74 Unit Price incl. VAT
61
BELLCRANK
3235474
$62,99 Unit Price incl. VAT
62
SHIFT COLLAR
3234073
$57,74 Unit Price incl. VAT
63
TUBE-VENT 90-1/4 HOSE
3234230
$19,94 Unit Price incl. VAT
64
LOW GEAR; 67 TOOTH
3235232
$230,99 Unit Price incl. VAT
65
6 FACE ENGAGEMENT DOG
3235233
$241,49 Unit Price incl. VAT
66
GEAR; 53 TOOTH
3235234
$157,49 Unit Price incl. VAT
67
STAGE 3 GEAR; 46 TOOTH
3235236
$204,74 Unit Price incl. VAT
68
SHIFT SHAFT
3235238
$68,24 Unit Price incl. VAT
69
GEAR; 48 TOOTH
3235450
$246,74 Unit Price incl. VAT
70
PARK/LOW SHIFT DOG
3235457
$272,99 Unit Price incl. VAT
71
SHIFT RAIL; SHAFT
3235542
$52,49 Unit Price incl. VAT
72
48T 6 FACE SPROCKET
3235755
$152,24 Unit Price incl. VAT
73
DIFFERENTIAL PIN
3236292
$194,24 Unit Price incl. VAT
74
SNORKEL GEAR; 13 TOOTH
3236412
$272,99 Unit Price incl. VAT
75
DOG; ENGAGEMENT
3236293
$257,24 Unit Price incl. VAT
76
WELD-REAR MOUNT BRKT
3235510
$99,74 Unit Price incl. VAT
77
SECTOR GEARS COVER
3235713
$209,99 Unit Price incl. VAT
78
PINION SHAFT SUBASSEMBLY
3235336
9999999
Not Available
79
SHIFT FORK SUBASSEMBLY
3235454
$167,99 Unit Price incl. VAT
80
ROLLER PAWL
3235452
$68,24 Unit Price incl. VAT
81
CASE SUBASSEMBLY; RIGHT
3235756
$818,99 Unit Price incl. VAT
82
BEVEL PINION; 10T
3236288
$257,24 Unit Price incl. VAT
83
DIFFERENTIAL SUBASSEMBLY
3236285
$719,24 Unit Price incl. VAT
84
SUBASSEMBLY LH CASE
3236550
$1 139,24 Unit Price incl. VAT
85
FORK RETAINER
3234934
$19,94 Unit Price incl. VAT
86
CENTER DRIVE BEARING COVER
3235241
$89,24 Unit Price incl. VAT
87
BRKT-MOUNT(430592)
3235350
$16,79 Unit Price incl. VAT
88
BRKT-MNT HARNESS
5257251
$57,74 Unit Price incl. VAT
89
BRKT-REAR MOUNT
3235511
$99,74 Unit Price incl. VAT
90
WASHER THRUST 40.83X56.25X0.38
3236294
$20,99 Unit Price incl. VAT
92
SILENT CHAIN
3234737
$314,99 Unit Price incl. VAT
93
GEAR POSITION SWITCH PIN
7661999
$220,49 Unit Price incl. VAT
94
SOLENOID
3235478
$545,99 Unit Price incl. VAT
95
TRANSMISSION SPEED SENSOR
4013908
4082135
$204,74 Unit Price incl. VAT
96
TRIPLE LIP SEAL; 25 X 80 X 10
3234113
$68,24 Unit Price incl. VAT
97
SEAL
3234851
$68,24 Unit Price incl. VAT
98
VITON TRIPLE LIP SEAL; 40 X 70 X 7
3235052
$57,74 Unit Price incl. VAT
99
O-RING
3234302
$13,64 Unit Price incl. VAT
100
O-RING
3233836
$12,59 Unit Price incl. VAT
101
O-RING
3233828
$12,59 Unit Price incl. VAT

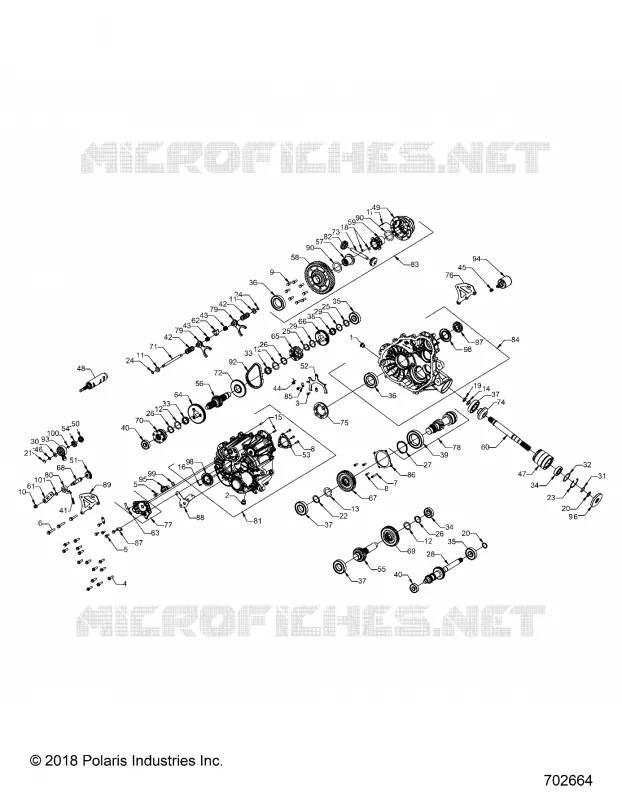

Find the detailed DRIVE TRAIN, MAIN GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
