1
Engine displacement
780
2
Year
1997
3
Trim
INTL SL 780 - I974088
4
Parts Catalog
FUEL TANK SL 780 B974088 AND INTL. SL 780 I974088 (4940924092A009)
5
Parts Diagram
Parts Catalog
by
FUEL SYSTEM SL 780 B974088 AND INTL. SL 780 I974088 (4940924092A010)
FUEL TANK SL 780 B974088 AND INTL. SL 780 I974088 (4940924092A009)
1
2
2
2
2
3
4
5
6
6
7
8
9
10
11
12
13
13
14
14
15
15
16
16
17
18
19
20
1
2
2
2
2
3
4
5
6
6
7
8
9
10
11
12
13
13
14
14
15
15
16
16
17
18
19
20
1
SCREW
7511873
9999999
Not Available
2
CAP FUEL BLK
5432612070
Not Available
2
CAP ASMFUEL
2653009
9999999
Not Available
3
GASKET FUEL CAP
5810871
9999999
Not Available
4
RIVET (50)
7621491
9999999
Not Available
5
INLET FUEL BLK(PWC)
5432613070
Not Available
6
COUPLING
7080442
Not Available
7
CHAIN
7080440
9999999
Not Available
8
WASHER; FLAT; S.S.
7555837
9999999
Not Available
9
SEAL FUEL INLET
5810931
9999999
Not Available
10
CLAMP-HOSE 2.75 -SS
7080446
$20,99 Unit Price incl. VAT
11
HOSE FILL FUEL
5411229
9999999
Not Available
12
HOSE CLAMP
7080439
$17,84 Unit Price incl. VAT
13
BOLT; S.S.
7515365
9999999
Not Available
14
WASHER LOCK S.S.
7552610
9999999
Not Available
15
WASHER S.S.
7555834
9999999
Not Available
16
BUSHING FUEL TANK(10)
5333114
9999999
Not Available
17
TANK FUEL 12.5GAL(PWC)
5432505
9999999
Not Available
18
SENDER/PICKUP ASM FUEL 3 TUBE
2410073
Not Available
19
GASKET
5810858
9999999
Not Available
20
BOLT SS.
7512045
9999999
Not Available

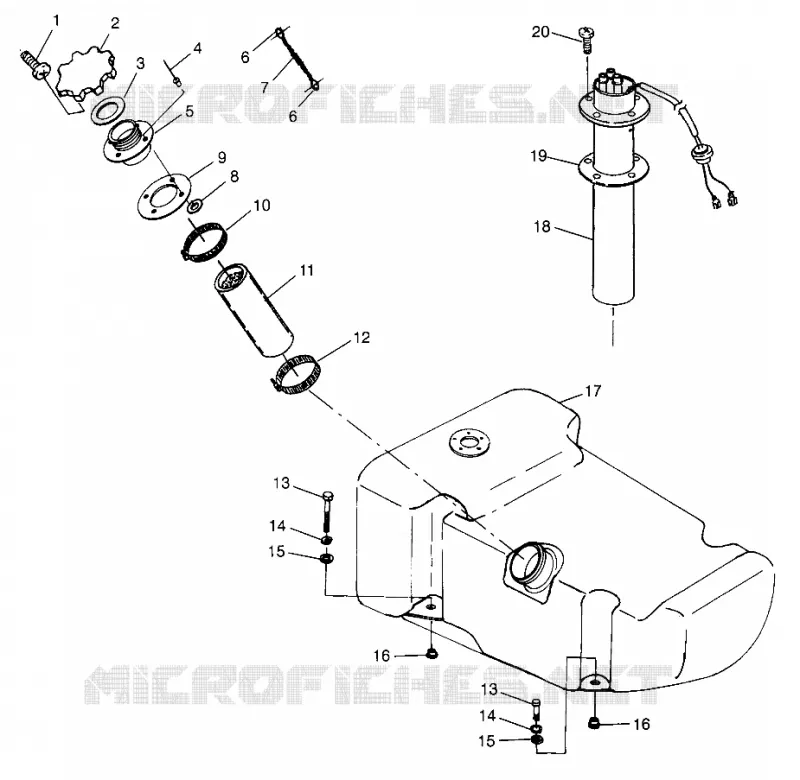

Find the detailed FUEL TANK SL 780 B974088 AND INTL. SL 780 I974088 (4940924092A009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
