1
Engine displacement
700
2
Year
1997
3
Trim
700 RMK - 0970966
4
Parts Catalog
REAR TORQUE ARM 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970 (4938573857B014)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM (SKS) 700 SKS 0970566 AND EUROPEAN 700 SKS E970566 (4938573857B013)
by
DRIVE CLUTCH 700 RMK 0970966, 700 SKS 0970566 AND EUROPEAN 700 SKS E970566 (4938573857C001)
REAR TORQUE ARM 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970 (4938573857B014)
1
2
3
4
4
4
5
6
7
8
9
9
9
10
11
12
13
14
15
16
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
18
19
19
19
20
20
20
20
21
22
22
22
23
23
24
25
26
27
28
29
1
2
3
4
4
4
5
6
7
8
9
9
9
10
11
12
13
14
15
16
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
18
19
19
19
20
20
20
20
21
22
22
22
23
23
24
25
26
27
28
29
1
2
3
4
4
4
5
6
7
8
9
9
9
10
11
12
13
14
15
16
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
18
19
19
19
20
20
20
20
21
22
22
22
23
23
24
25
26
27
28
29
1
SCREW SEMS
7517236
9999999
Not Available
2
SHAFT R.TORQUE UPPER
5020845
9999999
Not Available
3
ARM R.TORQUE BLK
1541152067
Not Available
4
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
5
SHAFT
5333536
9999999
Not Available
6
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
7
EYE BOLT
7010050
9999999
Not Available
8
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
9
NUT NYLOK
7542344
$7,34 Unit Price incl. VAT
10
SCREW
7517232
$36,74 Unit Price incl. VAT
11
PUSH ON CLIP
7080394
$4,19 Unit Price incl. VAT
12
ROLLER SPRING ADJUSTED
5431168
9999999
Not Available
13
COLLAR;BRG LOCK
5010404
9999999
Not Available
14
SCREW-SOCKETSET
7512257
$7,34 Unit Price incl. VAT
15
CARRIER WHEEL
1543023
9999999
Not Available
16
WASHER THRUST
7555787
9999999
Not Available
17
TORISON SPRING; RIGHT; .421 DIA
7041462067
Not Available
17
SPRING LH TORS(.437/77)
7041465067
Not Available
17
SPRING LH TORS(.406DIA)
7041463067
Not Available
17
SPRING RH TORS(.406DIA)
7041464067
Not Available
17
SPRING RH TORS(.437/77)
7041466067
Not Available
17
SPRING LH TORS(.421DIA)
7041461067
Not Available
18
TORSION SPRING SLEEVE
5431923
9999999
Not Available
19
WASHER
7555716
$3,14 Unit Price incl. VAT
20
STRAP-LIMITER RR SA
5411062
9999999
Not Available
20
STRAP LIMITER
5411061
9999999
Not Available
21
SCREW
7517313
$9,44 Unit Price incl. VAT
22
PIVOT TUBE BUSHING
5020561
9999999
Not Available
23
WAVE SPRING WASHER
7555795
$2,09 Unit Price incl. VAT
24
SPACER
5333559
9999999
Not Available
25
RODSHOCKX10BLK
1541154067
Not Available
26
BOLT
7515472
$4,19 Unit Price incl. VAT
27
SHOCK GAS R.TRACK
7041438
9999999
Not Available
28
BUSHING
5010422
$18,89 Unit Price incl. VAT
29
SCREW
7512410
7515540
$9,44 Unit Price incl. VAT

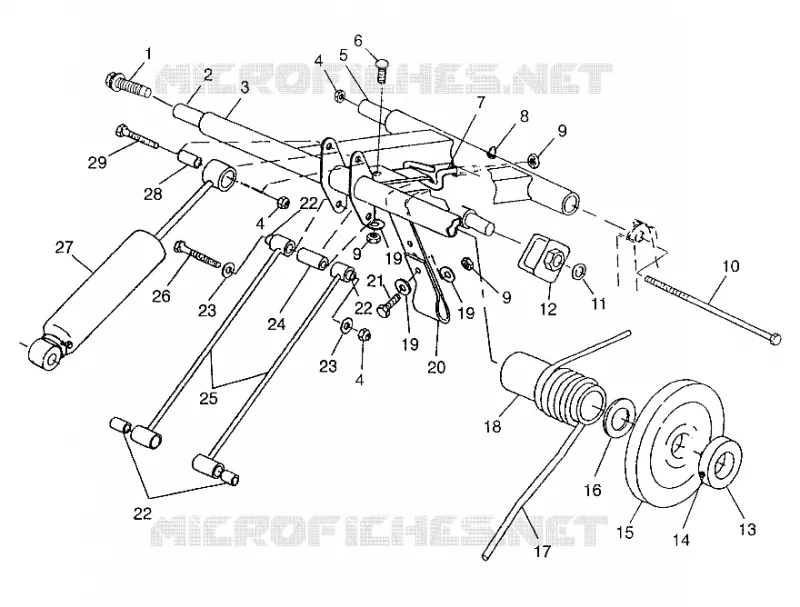

Find the detailed REAR TORQUE ARM 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970 (4938573857B014) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
