SUSPENSION ASSEMBLY NO. 1540546 (4909550955011A)
1
RAIL RH [No Longer Available] (Incl. 3-5 7-9)
1540541
Not Available
1
RAIL LH [No Longer Available] (Incl. 3-5 7-9)
1540540
Not Available
2
SCREW
7512227
$6,29 Unit Price incl. VAT
3
RIVET(10)
7621435
$2,09 Unit Price incl. VAT
4
COVER-RAIL TIP
5430627
9999999
Not Available
5
WASHER
7555746
7555904
$1,56 Unit Price incl. VAT
6
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
7
BUMPER-SUSPENSION
5410315
9999999
Not Available
8
RIVET (50)
7661609
9999999
Not Available
9
PALNUT(10)
7670009
9999999
Not Available
10
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
11
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
12
SPACER OUTER
5332784
9999999
Not Available
13
WHEEL-BOGIE
1543011
9999999
Not Available
14
TUBE; SUSPENSION
5332783
9999999
Not Available
15
ROLLER-SPRING BOGIE
5430629
9999999
Not Available
16
BLOCK-IDLER BOLT ADJ.
5130530
$62,99 Unit Price incl. VAT
17
SCREW
7515433
$3,14 Unit Price incl. VAT
18
SPACER
5332787
9999999
Not Available
19
ROLLER-SPRING
5430540
9999999
Not Available
20
WASHER
7555743
9999999
Not Available
21
NUT
7542425
9999999
Not Available
22
WASHER FLAT
7555732
9999999
Not Available
23
WHEEL IDLER
1594031
Not Available
24
SPACER
5330153
Not Available
25
BUSHING
7556301
$6,29 Unit Price incl. VAT
26
NUT
7542404
$3,14 Unit Price incl. VAT
27
SCREW 3/8-16X3 1/2HXHD TAP
7515459
$10,49 Unit Price incl. VAT
28
BOLT
7515317
$9,44 Unit Price incl. VAT
29
ARM REAR PIVOT Substituted by 1540493-067
1540493
Not Available
30
SHAFT-PIVOT ARM
5020415
9999999
Not Available
31
NUT SHOULDER
7542326
$36,74 Unit Price incl. VAT
32
SPACER
5330152
9999999
Not Available
33
SHAFT REAR IDLER
5020416
Not Available
34
BOLT(10)
7515432
9999999
Not Available
35
SPACER-CARR.WHEEL
5332730
9999999
Not Available
36
TRACK CARRIER WHEEL
1543017
9999999
Not Available
37
WASHER
7555726
$3,14 Unit Price incl. VAT
38
SPRING-SUSP.R.LH Substituted by 7041269
7041128
Not Available
38
SPRING-SUSP.R.RH
7041129
7041270
Not Available
39
TUBE-SPRING
5521089
9999999
Not Available
40
TORQUE ARM REAR SUSP. Substituted by 1540494-067
1540494
Not Available
41
SPACER
5332786
$13,64 Unit Price incl. VAT
42
BOLT
7515306
9999999
Not Available
43
SHOCK-SUSP
7041130
Not Available
44
BUSHING
5430537
$7,34 Unit Price incl. VAT
45
SPACER
5332631
$11,54 Unit Price incl. VAT
46
NUT LOCK
7542302
$7,34 Unit Price incl. VAT
47
AXLE
5020426
9999999
Not Available
48
SHAFT-PIVOT ARM
5020413
Not Available
49
SLIDER BLUE
5521140
9999999
Not Available
50
TORQUE ARM FRONT Substituted by 1540492-067
1540492
Not Available
51
TUBE BLK F.SPRING Substituted by 5332751-067
5332751
Not Available
52
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
53
WASHER
7555716
$3,14 Unit Price incl. VAT
54
STRAP; LIMITER
5410380
9999999
Not Available
56
SHAFT MOUNTING
5010149
9999999
Not Available
57
SPRING-FRONT SUSP.
7041133
Not Available
58
ROLLER-SPRING LIMITER [No Longer Available]
5430630
Not Available
59
SPACER-SPRING ROLLER
5521111
Not Available
60
SHAFT-PIVOT ARM
5020392
5020723
$47,24 Unit Price incl. VAT
61
BOLT
7512247
9999999
Not Available
62
INSERT-WHEEL
5430789
5431531
$19,94 Unit Price incl. VAT
63
BOLT
7512404
$7,34 Unit Price incl. VAT
64
NUT LOCK
7542403
9999999
Not Available
65
BOLT
7512659
9999999
Not Available
66
WASHER
7555804
$7,34 Unit Price incl. VAT
67
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
68
BOGIE WHEEL BRACKET
5130570
$89,24 Unit Price incl. VAT

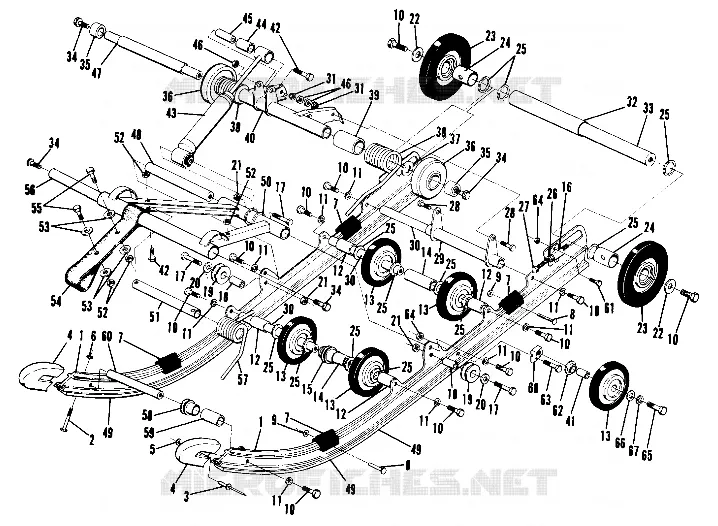

Find the detailed SUSPENSION ASSEMBLY NO. 1540546 (4909550955011A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

OTHERS autre 1985
