Engine displacement
500
2
Year
2008
3
Trim
SPORTSMAN X2 500 EFI - A08TN50AT/AX/AZ
4
Parts Catalog
CYLINDER AND HEAD
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, REAR DRIVE SHAFT
by
ENGINE, FUEL INJECTOR
CYLINDER AND HEAD
1
2
3
4
4
5
6
7
8
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
38
39
1
2
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
CYLINDER ASSEMBLY
3089256
9999999
Not Available
2
HEAD CYLINDER ASSEMBLY
3085527
9999999
Not Available
3
STRAIGHT PIN
3084857
9999999
Not Available
4
GUIDE VALVE
3084994
9999999
Not Available
5
INTAKE VALVE SEAL
3084858
9999999
Not Available
6
O-RING
3084867
9999999
Not Available
7
WATER OUT ADAPTER
3084870
9999999
Not Available
8
FLANGE BOLT
3084877
9999999
Not Available
9
CAMSHAFT ADAPTER
3084866
9999999
Not Available
10
ROCKER COVER
3085073
9999999
Not Available
11
ROCKER COVER GASKET
3085074
9999999
Not Available
12
GASKET
3084861
9999999
Not Available
13
PLUG
3084860
9999999
Not Available
14
EXHAUST VALVE SEAL
3084859
9999999
Not Available
15
BOLT-FLANGE
3087158
9999999
Not Available
16
BOLT
3084875
9999999
Not Available
17
BOLT-ROCKER SHAFT
3085854
9999999
Not Available
18
VALVE ROCKER SHAFT SUPPORT
3084864
9999999
Not Available
19
BOLT
3084876
9999999
Not Available
20
ROCKER SHAFT SUPPORT VALVE; MAG
3084863
9999999
Not Available
21
NUT
3087199
9999999
Not Available
22
WASHER SPRING
3080051
9999999
Not Available
23
STUD
3085326
9999999
Not Available
24
PLUG; BLIND
3084862
9999999
Not Available
25
BOLT FLANGE
3086781
9999999
Not Available
26
EXHAUST GASKET ASSEMBLY
3085075
9999999
Not Available
27
SOCKET HEAD BOLT
3081330
9999999
Not Available
28
CAMSHAFT COVER
3089242
9999999
Not Available
29
BOLT FLANGE
3084873
9999999
Not Available
30
PIPE-2 ELBOW
3084130
9999999
Not Available
31
CYLINDER GASKET
3089966
9999999
Not Available
32
PAN HEAD SCREW
3081497
9999999
Not Available
33
OIL FILTER UNION
3089956
9999999
Not Available
34
KNOCK PIPE
3087266
9999999
Not Available
35
GASKET HEAD ASSEMBLY
3085371
9999999
Not Available
36
INTAKE ADAPTER GASKET
3085655
9999999
Not Available
37
INTAKE PIPE
3089898
9999999
Not Available
38
BAND ASM.
3084045
9999999
Not Available
39
ADAPTOR
3089748
9999999
Not Available

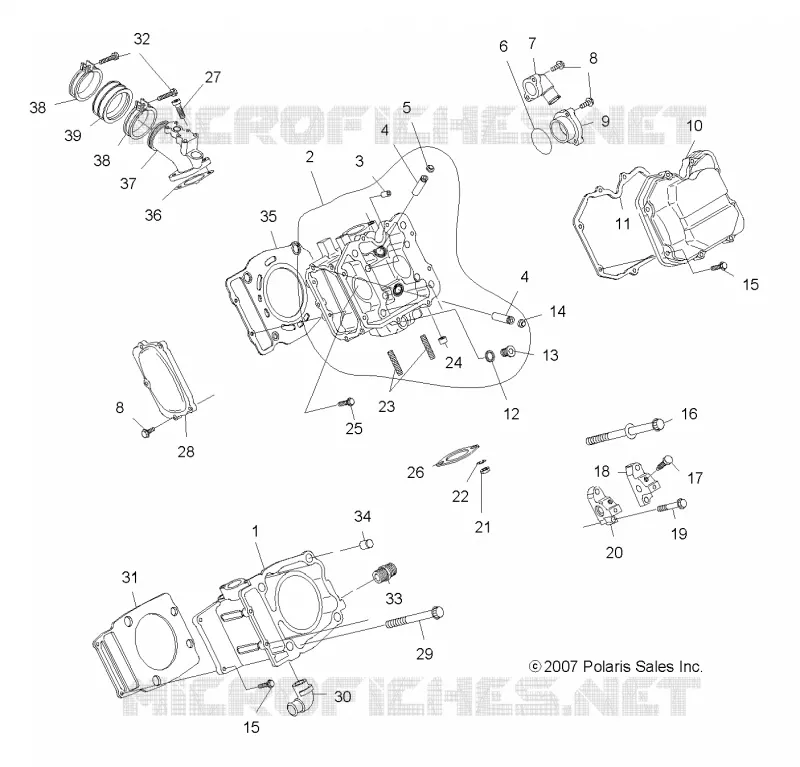

Find the detailed CYLINDER AND HEAD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
