1
Engine displacement
785
2
Year
1998
3
Trim
INTL SLX PRO 785 - I984978
4
Parts Catalog
CARBURETOR
5
Parts Diagram
Parts Catalog
BILGE PUMP
by
OIL PUMP
CARBURETOR
1
2
2
2
2
2
2
2
3
4
5
5
6
6
6
7
7
7
8
8
8
8
8
8
8
8
9
9
10
10
11
11
12
13
13
14
15
15
16
16
17
17
18
18
19
20
21
21
22
22
22
22
22
22
22
23
23
24
24
25
25
26
26
26
27
27
27
28
28
29
29
29
30
30
30
31
31
32
33
33
33
34
34
34
35
36
37
38
38
39
39
39
40
40
40
41
41
42
42
43
44
44
45
46
46
47
47
48
49
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
64
64
64
65
66
67
68
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
82
82
83
1
2
2
2
2
2
2
2
3
4
5
5
6
6
6
7
7
7
8
8
8
8
8
8
8
8
9
9
10
10
11
11
12
13
13
14
15
15
16
16
17
17
18
18
19
20
21
21
22
22
22
22
22
22
22
23
23
24
24
25
25
26
26
26
27
27
27
28
28
29
29
29
30
30
30
31
31
32
33
33
33
34
34
34
35
36
37
38
38
39
39
39
40
40
40
41
41
42
42
43
44
44
45
46
46
47
47
48
49
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
64
64
64
65
66
67
68
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
82
82
83
1
PACKING
3140069
Not Available
2
SCREW(10)
3140065
9999999
Not Available
3
PIPE ASM;VINYL;3
3140109
9999999
Not Available
4
SCREW
3140027
9999999
Not Available
5
SPRING
3140054
9999999
Not Available
6
O-RING (GASKET)
3140006
9999999
Not Available
7
FILTER
3140039
9999999
Not Available
8
CLIP
3140133
9999999
Not Available
9
HOSE
3140128
Not Available
10
CLIP Substituted by 3140133
3140124
Not Available
11
HOSE
3140147
Not Available
12
NIPPLE
3140144
9999999
Not Available
13
HOSE
3140134
9999999
Not Available
14
HOSE
3140145
9999999
Not Available
15
SCREW
3140157
9999999
Not Available
16
COVER ASM.
3140153
Not Available
17
GASKET
3140152
9999999
Not Available
18
DIAPHRAGM
3140151
Not Available
19
O-RING
3140154
9999999
Not Available
20
BODY ASM;PUMP
3140146
9999999
Not Available
21
DIAPHRAGM
3140149
Not Available
22
SEAL
3130515
9999999
Not Available
23
RING
3140143
9999999
Not Available
24
SPRING
3140142
9999999
Not Available
25
LEVER CHOKE
3140138
Not Available
26
WASHER SPRING
3140078
9999999
Not Available
27
NUT
3140079
Not Available
28
SPRING
3140159
9999999
Not Available
29
NUT
3140011
9999999
Not Available
30
WASHER SPRING
3140012
9999999
Not Available
31
LEVER ASMTHROTTLE
3140125
9999999
Not Available
32
LEVER; THROTTLE
3140070
9999999
Not Available
33
SPRING
3140003
Not Available
34
RING
3140002
9999999
Not Available
35
CARBURETOR ASM.
3140169
9999999
Not Available
36
WASHER
3140091
9999999
Not Available
37
PLATE
3140090
9999999
Not Available
38
SCREW
3140100
9999999
Not Available
39
GASKET CARB (SLX PRO 785)
3240358
Not Available
40
NUT FLANGE(10)
3240058
9999999
Not Available
41
HOSE ASM. (Incl. Spiral Tube Clamps)
3140161
Not Available
42
RING
3140126
Not Available
43
LEVER THROTTLE
3140127
9999999
Not Available
44
HOSE
3140139
9999999
Not Available
45
BODY ASMPUMP
3140150
9999999
Not Available
46
RING
3140080
9999999
Not Available
47
RING
3140137
9999999
Not Available
48
ADJUSTER
3140048
9999999
Not Available
49
WASHER
3140014
Not Available
50
RING
3140049
9999999
Not Available
51
NEEDLEVALVE ASM.
3140040
9999999
Not Available
52
CLIP
3140148
Not Available
53
PLATE
3140037
Not Available
54
SCREW (10)
3140038
9999999
Not Available
55
SPRING 80GRM CARB-HIGH ELEV
3130491
9999999
Not Available
56
PIN
3140036
9999999
Not Available
57
ARM
3140041
9999999
Not Available
58
DIAPHRAGM ASM.
3140044
9999999
Not Available
59
COVER
3140045
9999999
Not Available
60
SCREW (10)
3140034
Not Available
61
BODY ASM.
3140035
9999999
Not Available
62
GASKET
3140043
9999999
Not Available
63
SCREW (1)
3140018
Not Available
64
MAIN JET#155
3130571
3130570
$16,79 Unit Price incl. VAT
64
MAIN JET;#150
3130569
9999999
Not Available
65
BOLT
3140155
9999999
Not Available
66
PILOT-JET 105
3140170
9999999
Not Available
67
O-RING
3140053
9999999
Not Available
68
WASHER
3140052
Not Available
69
SPRING
3140051
9999999
Not Available
70
ADJUSTER
3140160
Not Available
71
LEVER ASMTHROTTLE.
3140129
9999999
Not Available
72
SCREW
3140158
9999999
Not Available
73
SEAL
3140136
9999999
Not Available
74
SPRING
3140135
9999999
Not Available
75
SCREW
3140019
9999999
Not Available
76
LEVER ASMCHOKE
3140132
9999999
Not Available
77
SPRING
3140013
Not Available
78
SCREW ASM.
3140015
9999999
Not Available
79
COVER ASM;PUMP
3140140
9999999
Not Available
80
SCREW
3140098
9999999
Not Available
81
JET
3140141
9999999
Not Available
82
SCREW
3140009
9999999
Not Available
83
PLATE
3140156
Not Available

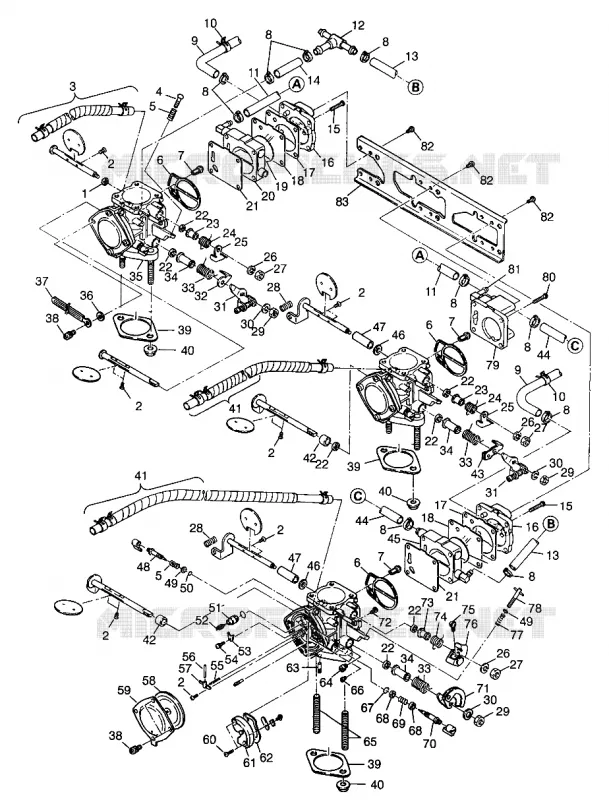

Find the detailed CARBURETOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
