DRIVE TRAIN, MAIN GEARCASE
1
2
2
3
4
4
5
6
7
7
8
9
10
11
12
13
13
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
29
30
31
32
33
33
34
35
35
36
37
38
38
39
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
63
64
65
66
67
69
70
71
71
72
72
73
73
74
75
76
77
78
79
80
81
82
1
1
2
3
4
4
4
4
1
ASM-GEARCASE NO DIFF SNGL
1333079
9999999
Not Available
2
TRIPER LIP SEAL
3233878
$57,74 Unit Price incl. VAT
3
GEARCASE COVER; LEFT; MACHINED
3235264
$598,49 Unit Price incl. VAT
4
BALL BEARING
3233268
$88,19 Unit Price incl. VAT
5
CHAIN
3234057
$519,74 Unit Price incl. VAT
6
MAIN GEARCASE; RIGHT; MACHINED
3235265
9999999
Not Available
7
BEARING
3233018
$47,24 Unit Price incl. VAT
8
SPROCKET; 19 TOOTH
3234060
$451,49 Unit Price incl. VAT
9
OIL DEFLECTOR
3234061
3239943
$52,49 Unit Price incl. VAT
10
SCREW
3233749
$10,49 Unit Price incl. VAT
11
GEAR OUTPUT
3234062
$493,49 Unit Price incl. VAT
12
RING-RETAINING
3233699
$13,64 Unit Price incl. VAT
13
SCREW TAPPINGHEXHEAD1/4-20X.75
3234247
$10,49 Unit Price incl. VAT
14
COVER-CENTER DRIVE BEARING
3234063
$62,99 Unit Price incl. VAT
15
RETAINING RING
3233364
$12,59 Unit Price incl. VAT
16
SHIM; 1.700 X 1.385
3234271
$47,24 Unit Price incl. VAT
17
BALL BEARNING
3234065
$80,84 Unit Price incl. VAT
18
PINION; 13T CENTER DRIVE
3234263
$818,99 Unit Price incl. VAT
19
RETAINING RING
3234067
$14,69 Unit Price incl. VAT
20
WASHER
3233176
$17,84 Unit Price incl. VAT
21
SPUR; GEAR
3234352
9999999
Not Available
22
BEARING; NEEDLE
3233009
$68,24 Unit Price incl. VAT
23
WASHER
3233855
$19,94 Unit Price incl. VAT
24
DOG; L/P
3234257
$283,49 Unit Price incl. VAT
25
ENGAGEMENT DOG 6 FACE
3234258
$178,49 Unit Price incl. VAT
26
RETAINING RING
3233306
$9,44 Unit Price incl. VAT
27
THRUST WASHER; 1.300 X .995 X .065
3234248
$17,84 Unit Price incl. VAT
28
SPROCKET; 6-FACE; 38 TOOTH
3234290
$283,49 Unit Price incl. VAT
29
REVERSE SHAFT; 26 TOOTH
3234280
$488,24 Unit Price incl. VAT
30
GEAR; 33T 6-FACE
3234291
$325,49 Unit Price incl. VAT
31
SHIFT COLLAR
3234073
$57,74 Unit Price incl. VAT
32
PLATE-PARK 12 FACE
3233915
$73,49 Unit Price incl. VAT
33
BEARING; BALL; 17 X 40 X 12
3234274
$47,24 Unit Price incl. VAT
34
SEAL
3234851
$68,24 Unit Price incl. VAT
35
BEARING
3233019
$54,59 Unit Price incl. VAT
36
INPUT SHAFT; 37 TOOTH
3234348
9999999
Not Available
37
CHAIN; .25 P X .40 W X 50 L
3234264
$188,99 Unit Price incl. VAT
38
SHIFT FORK
3234077
$335,99 Unit Price incl. VAT
39
COMPRESSION SPRING
3234078
$47,24 Unit Price incl. VAT
40
RAIL-SHIFT SHAFT
3234079
3235542
$52,49 Unit Price incl. VAT
41
DOWEL PIN
3233432
$13,64 Unit Price incl. VAT
42
TORISON SPRING
3233431
$47,24 Unit Price incl. VAT
43
CHAIN TENSIONER CAM
3233434
$26,24 Unit Price incl. VAT
44
CHAIN TENSIONER SHOE
3233433
$62,99 Unit Price incl. VAT
45
DRUM SHIFT
3234360
$335,99 Unit Price incl. VAT
46
SECTOR GEAR; 31 TOOTH CUT TO 11 TOOTH
3233832
$68,24 Unit Price incl. VAT
47
SHIFT SHAFT
3233831
$115,49 Unit Price incl. VAT
48
O-RING
3233869
$10,49 Unit Price incl. VAT
49
DETENT PAWL
3233829
$68,24 Unit Price incl. VAT
50
COMPRESSION DETENT SPRING
3234578
$26,24 Unit Price incl. VAT
51
GEARCASE COVER
3234188
$209,99 Unit Price incl. VAT
52
BELLCRANK 510 HOLE 92 DEGREE
3234584
$52,49 Unit Price incl. VAT
53
NUT-LOCK HEX FLANGE NYLON 5/16
3233961
$5,24 Unit Price incl. VAT
54
SWITCH-ROTARY 6 PIN
3233835
3236115
$225,74 Unit Price incl. VAT
55
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
56
SECTOR GEAR; 16 TOOTH
3233839
$68,24 Unit Price incl. VAT
57
DETENT STAR
3233909
$52,49 Unit Price incl. VAT
58
O-RING
3233076
$11,54 Unit Price incl. VAT
59
SNORKEL; 13 TOOTH
3234262
$608,99 Unit Price incl. VAT
60
BALL BEARING
3233265
$68,24 Unit Price incl. VAT
61
RING RETAINING BSCEXTERNAL0.84
3234336
$10,49 Unit Price incl. VAT
62
SNORKLE TUBE
3234278
$188,99 Unit Price incl. VAT
63
SCREW-TORX TRUSS HD
3234086
$10,49 Unit Price incl. VAT
64
SHIM 1.180 X .995(9)
3234272
$68,24 Unit Price incl. VAT
65
SNAP RING
3233106
$10,49 Unit Price incl. VAT
66
TRIPLE LIP SEAL; 25 X 80 X 10
3234113
$68,24 Unit Price incl. VAT
67
TUBE-VENT 90-1/4 HOSE
3234230
$19,94 Unit Price incl. VAT
69
PIN DOWEL 5/16 X 1.0
3234244
$13,64 Unit Price incl. VAT
70
PLUG
3233194
3233794
$31,49 Unit Price incl. VAT
71
COMPRESSION SPRING
3234089
$52,49 Unit Price incl. VAT
72
RETAINING RING
3234090
$19,94 Unit Price incl. VAT
73
CUP WASHER
3234091
$17,84 Unit Price incl. VAT
74
RING RETAININGBASICINTRNL2.047
3234269
$17,84 Unit Price incl. VAT
75
SHIM; 2.040 OD X 1.630 ID
3234273
$26,24 Unit Price incl. VAT
76
BEARING; NEEDLE
3233103
$54,59 Unit Price incl. VAT
77
SENSOR-SPEED TRANS
4012167
4082135
$204,74 Unit Price incl. VAT
78
O-RING
3234302
$13,64 Unit Price incl. VAT
79
SUBASSEMBLY 59 TOOTH; OUTPUT; FINAL
3234421
9999999
Not Available
80
SCR-TAPPING HEX WASHER HD 5/16
3234114
$13,64 Unit Price incl. VAT
81
DISC-LOCKOUT
3234081
3235243
$17,84 Unit Price incl. VAT
82
PLUG; .75 HOLLOW HEX MAGNETIC
3234529
3233794
$31,49 Unit Price incl. VAT

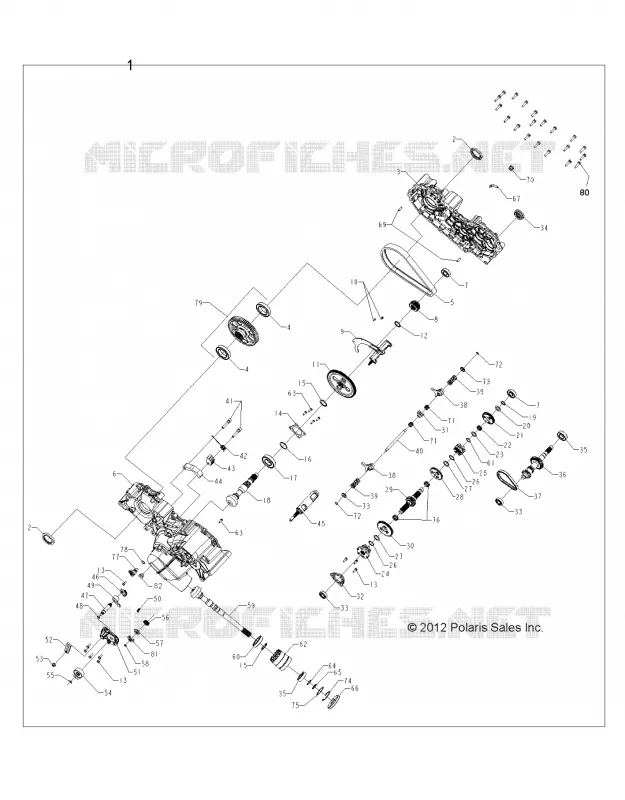

Find the detailed DRIVE TRAIN, MAIN GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

SPORTSMAN 500 HD 500 2013
