ENGINE, WATER COOLING SYSTEM for POLARIS RANGER 1000 DIESEL CREW MD from 2018

ENGINE, WATER COOLING SYSTEM

1

RADIATOR ASSEMBLY

1240663

$1 244,24 Unit Price incl. VAT

2

BOLT 6 MM X 15 MM

7519585

$17,84 Unit Price incl. VAT

3

CORE RADIATOR ASSEMBLY

1240664

$876,74 Unit Price incl. VAT

4

CAP

1240694

$73,49 Unit Price incl. VAT

5

FAN ASSEMBLY

2411816

$645,74 Unit Price incl. VAT

6

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

7

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

8

SURGE TANK

5439202

$178,49 Unit Price incl. VAT

9

GASKET

5810279

$4,19 Unit Price incl. VAT

10

FUEL LINE; 95 CM

845000395

Not Available

11

COOLANT TUBE; 1 IN

5138504

9999999

Not Available

12

HOSE-UPPER RAD

5414289

$167,99 Unit Price incl. VAT

13

RADIUS HOSE; LOWER

5414290

$83,99 Unit Price incl. VAT

14

ENGINE HOSE; DIESEL

5415076

$68,24 Unit Price incl. VAT

15

ENGINE HOSE; OUTER

5415827

$99,74 Unit Price incl. VAT

16

ENGINE HOSE BYPASS; DIESEL

5415078

$68,24 Unit Price incl. VAT

17

TEE CONNECTOR; 1 X 1 X 0.5

7052530

$10,49 Unit Price incl. VAT

18

SPRINGBAND CLAMP; 35/12

7080844

$19,94 Unit Price incl. VAT

19

RADIATOR SHROUD; FRONT; GLOSS BLACK

5454760070

Not Available

20

RADIATOR MOUNT BRACKET; LEFT; BLACK

5256596329

Not Available

21

RADIATOR MOUNT BRACKET; RIGHT; BLACK

5256597329

Not Available

22

GROMMET

7052028

$11,54 Unit Price incl. VAT

23

HOSE CLAMP; 25-40 MM

7081192

$14,69 Unit Price incl. VAT

24

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

25

CLAMP-HOSE SPRING 20MM

7081719

$10,49 Unit Price incl. VAT

26

SCREW #14 X 1 HI/LO

7518158

$9,44 Unit Price incl. VAT

27

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

28

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

29

CLIP

7670102

$4,19 Unit Price incl. VAT

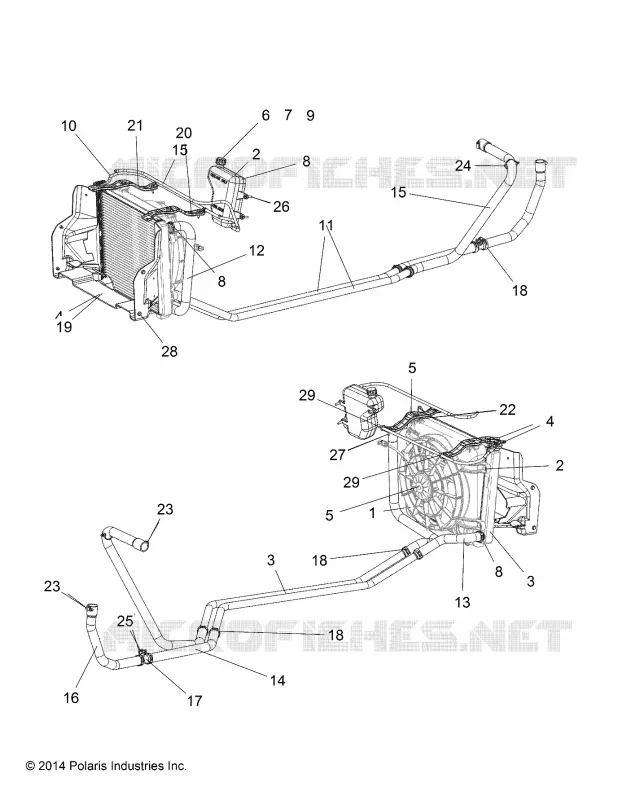

Find the detailed ENGINE, WATER COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
