1
Engine displacement
600
2
Year
1995
3
Trim
600 XCR - 0951676
4
Parts Catalog
STEERING ASSEMBLY 600 XCR 0951676 (4929132913B007)
5
Parts Diagram
Parts Catalog
STEERING
by
FRONT TORQUE ARM 600 XCR 0951676 (4929132913B012)
STEERING ASSEMBLY 600 XCR 0951676 (4929132913B007)
1
2
3
3
4
4
4
5
6
7
8
8
8
9
9
9
9
10
10
10
10
10
10
10
10
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
12
13
13
14
15
16
17
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
19
19
20
21
22
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
36
37
1
HOOP STEERING
1011513067
Not Available
2
CLIP
7080278
9999999
Not Available
3
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
4
BOLT-CARRIAGE
7512275
9999999
Not Available
5
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
6
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
7
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
8
RIVET
7661637
$2,09 Unit Price incl. VAT
9
NUT LOCK
7542403
9999999
Not Available
10
ROD END RH
7060125
7060165
$99,74 Unit Price incl. VAT
10
ROD END;LH
7060124
7060164
$99,74 Unit Price incl. VAT
11
NUT LH (10)
7542424
$1,56 Unit Price incl. VAT
11
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
12
ROD-DRAG LINK
5332712
9999999
Not Available
13
BOLT
7512404
$7,34 Unit Price incl. VAT
14
MT;RUBBER;TORQUE STOP
3110041
9999999
Not Available
15
NUT JAM
7542432
$7,34 Unit Price incl. VAT
16
LIMITER TORQUE PTO BLK.
1012044067
Not Available
17
RIVET(50)
7621340
9999999
Not Available
18
ROD END; RH
7060152
7060167
$99,74 Unit Price incl. VAT
18
ROD END; LH
7060151
7060166
$99,74 Unit Price incl. VAT
19
ROD TIE BLK.
5020715067
Not Available
20
PLATE LH BOOTSEAL BLK.
5210959067
Not Available
21
BOOT LH
5410388
9999999
Not Available
22
BUSHING
3563907
$7,34 Unit Price incl. VAT
23
WASHER WAVE
7555735
$7,34 Unit Price incl. VAT
24
BOLT
7512682
9999999
Not Available
25
BLOCK-CTR.STEERING
5130534
Not Available
26
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
27
BOOT-TIE ROD
5410328
9999999
Not Available
28
PLATE BOOTSEAL BLK.
5210904067
Not Available
29
POP RIVET
7621323
$2,09 Unit Price incl. VAT
30
BLOCK STEERING
5630375
Not Available
31
FITTING-LUBE.
7080220
9999999
Not Available
32
STRG.ASM CTR.
1822223
Not Available
33
BOLT
7515528
$15,74 Unit Price incl. VAT
34
BUSHING
5010322
Not Available
35
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
36
WASHER
7555721
$2,09 Unit Price incl. VAT
37
NUT
7542712
$17,84 Unit Price incl. VAT

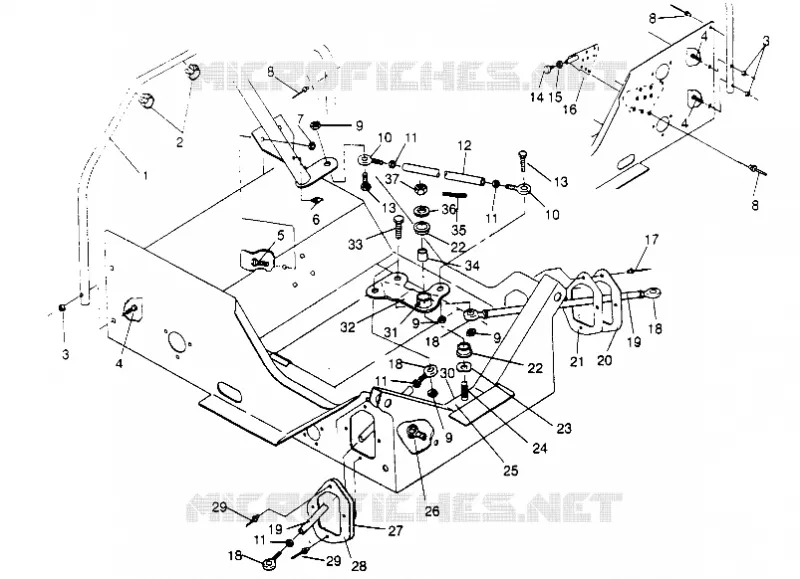

Find the detailed STEERING ASSEMBLY 600 XCR 0951676 (4929132913B007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
