1
Engine displacement
600
2
Year
2003
3
Trim
600 XC SP EDGE M-10 F/O
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
CONSOLE
by
DRIVE CLUTCH (ELECTRIC START MODELS)
COOLING SYSTEM
1
HOSE-PUMP/BOTTLE 500/600
5412165
9999999
Not Available
2
TUBING-CONVOLUTED 1.25 X3
5521510
9999999
Not Available
3
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
4
COOLANT WELD; BOTTLE 5/8 BYPASS
2520314
9999999
Not Available
5
PRESSURE CAP; 13 LB
2511270
9999999
Not Available
6
FUEL LINE; 1/4 ID
84500031525
Not Available
7
HOSE-BYPASS 1/2
5412174
9999999
Not Available
8
SPRING-HOSE RETAINER .965 O.D.
7042134
9999999
Not Available
9
HOSE ENG.OUT/BRK COOLER
5411956
9999999
Not Available
10
HOSE-WEAR STRIP/BRK COOLER
5412163
9999999
Not Available
11
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
12
WELD-WEAR STRIP COOLERM10
1240097
9999999
Not Available
13
SPRING BAND CLAMPS; 32/12
7080843
$7,34 Unit Price incl. VAT
14
WEAR STRIP CROSSOVER HOSE
5411854
9999999
Not Available
15
HOSE-COOLER/BOTTLE 500/600
5412180
9999999
Not Available
16
HOSE-CENTER COOLER/WEAR STRIP
5412162
9999999
Not Available
17
RIVET-3/16-.214-.420 (50)
7661130
$2,09 Unit Price incl. VAT
18
RIVET
7661637
$2,09 Unit Price incl. VAT
19
WELD-COOLER CENTER
2520255
9999999
Not Available
20
CLAMP
7080533
9999999
Not Available
21
CLAMP HOSE 1.375 VNL ECOATED
7080908
9999999
Not Available
22
CLAMP HOSE SS
7080560
$20,99 Unit Price incl. VAT
23
CLAMP HOSE 1 IN NYLON
7080653
$9,44 Unit Price incl. VAT

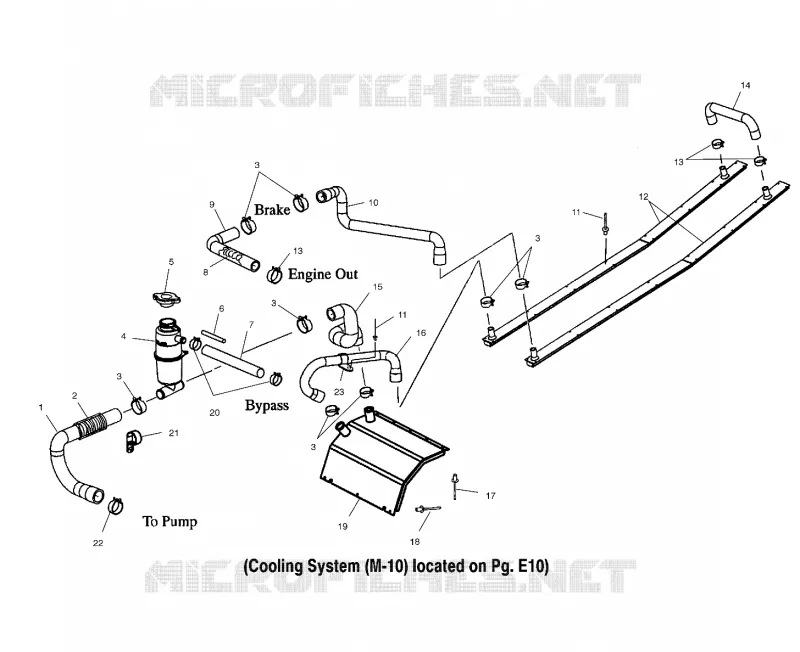

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
