DRIVE TRAIN, MAIN GEARCASE
1
2
3
4
4
5
5
6
6
6
7
8
9
10
10
11
12
13
13
14
15
16
16
17
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
35
36
37
38
39
39
40
41
41
42
43
43
44
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
65
66
67
68
69
70
71
72
72
73
73
74
77
78
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
2
95
96
1
2
3
4
5
6
7
8
1
PDS TRANMISSION ASSEMBLY; 6X6
1333498
9999999
Not Available
2
HEX PLUG W/ O-RING; HOLLOW
3233794
$31,49 Unit Price incl. VAT
3
SCREW
3233749
$10,49 Unit Price incl. VAT
4
SCREW-TORX TRUSS HD
3234086
$10,49 Unit Price incl. VAT
5
SCR-TAPPING HEX WASHER HD 5/16
3234114
$13,64 Unit Price incl. VAT
6
SCREW TAPPINGHEXHEAD1/4-20X.75
3234247
$10,49 Unit Price incl. VAT
7
NUT-LOCK HEX FLANGE NYLON 5/16
3233961
$5,24 Unit Price incl. VAT
8
NUT-HEX M16 X 2.0
3234776
$19,94 Unit Price incl. VAT
9
WASHER
3233855
$19,94 Unit Price incl. VAT
10
CUP WASHER
3234091
$17,84 Unit Price incl. VAT
11
LOCKING WASHER; 17 X 30
3234777
$78,74 Unit Price incl. VAT
12
DOWEL PIN
3233432
$13,64 Unit Price incl. VAT
13
PIN; DOWEL
3233247
9999999
Not Available
14
SNAP RING
3233106
$10,49 Unit Price incl. VAT
15
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
16
RETAINING RING
3233306
$9,44 Unit Price incl. VAT
17
RETAINING RING
3233364
$12,59 Unit Price incl. VAT
18
RING-RETAINING
3233699
$13,64 Unit Price incl. VAT
19
RETAINING RING
3234067
$14,69 Unit Price incl. VAT
20
RING RETAININGBASICINTRNL2.047
3234269
$17,84 Unit Price incl. VAT
21
RETAINING RING
3234090
$19,94 Unit Price incl. VAT
22
RING-RETAINING BEVELED INTERNA
3234158
$41,99 Unit Price incl. VAT
23
RING RETAINING BSCEXTERNAL0.84
3234336
$10,49 Unit Price incl. VAT
24
RING-RETAINING INTERN DHO STZD
3235849
$57,74 Unit Price incl. VAT
25
SHAFT-INPUT 39T REM BOSS
3235782
9999999
Not Available
26
WASHER
3233176
$17,84 Unit Price incl. VAT
27
SHIM KIT
3233611
$52,49 Unit Price incl. VAT
28
SHIM 1.180 X .995(9)
3234272
$68,24 Unit Price incl. VAT
29
SHIM; 2.040 OD X 1.630 ID
3234273
$26,24 Unit Price incl. VAT
30
THRUST WASHER; 1.300 X .995 X .065
3234248
$17,84 Unit Price incl. VAT
31
SHIM; 2.750 X 3.3125 X .050
3235850
$204,74 Unit Price incl. VAT
32
BEARING; NEEDLE
3233009
$68,24 Unit Price incl. VAT
33
BEARING
3233018
$47,24 Unit Price incl. VAT
34
BEARING
3233019
$54,59 Unit Price incl. VAT
35
BEARING; NEEDLE
3233103
$54,59 Unit Price incl. VAT
36
BALL BEARING
3233265
$68,24 Unit Price incl. VAT
37
BALL BEARNING
3234065
$80,84 Unit Price incl. VAT
38
BALL BEARING
3233714
9999999
Not Available
39
BEARING; BALL; 17 X 40 X 12
3234274
$47,24 Unit Price incl. VAT
40
NEEDLE BEARING; .75 X 1 X .625
3234799
$27,29 Unit Price incl. VAT
41
DOUBLE ROW BALL BEARING
3235851
$178,49 Unit Price incl. VAT
42
TORISON SPRING
3233431
$47,24 Unit Price incl. VAT
43
COMPRESSION SPRING
3234078
$47,24 Unit Price incl. VAT
44
COMPRESSION SPRING
3234089
$52,49 Unit Price incl. VAT
45
COMPRESSION DETENT SPRING
3234578
$26,24 Unit Price incl. VAT
46
SNORKLE TUBE
3234278
$188,99 Unit Price incl. VAT
47
GEARCASE COVER
3234188
$209,99 Unit Price incl. VAT
48
GEARCASE-MAIN MACH RH
3235852
$1 086,74 Unit Price incl. VAT
49
DRUM SHIFT
3234360
$335,99 Unit Price incl. VAT
50
PLATE-PARK 12 FACE
3233915
$73,49 Unit Price incl. VAT
51
SECTOR GEAR; 16 TOOTH
3233839
$68,24 Unit Price incl. VAT
52
SECTOR GEAR; 31 TOOTH CUT TO 11 TOOTH
3233832
$68,24 Unit Price incl. VAT
53
DETENT PAWL
3233829
$68,24 Unit Price incl. VAT
54
DETENT STAR
3233909
$52,49 Unit Price incl. VAT
55
GEAR OUTPUT
3234062
$493,49 Unit Price incl. VAT
56
SNORKEL; 13 TOOTH
3234262
$608,99 Unit Price incl. VAT
57
PINION; 13T CENTER DRIVE
3234263
$818,99 Unit Price incl. VAT
58
SHAFT-REVERSE 26T
3234071
9999999
Not Available
59
CHAIN TENSIONER SHOE
3233433
$62,99 Unit Price incl. VAT
60
CHAIN TENSIONER CAM
3233434
$26,24 Unit Price incl. VAT
61
BELLCRANK 510
3234232
9999999
Not Available
62
SHIFT SHAFT
3233831
$115,49 Unit Price incl. VAT
63
SHIFT COLLAR
3234073
$57,74 Unit Price incl. VAT
64
RAIL-SHIFT SHAFT
3234079
3235542
$52,49 Unit Price incl. VAT
65
SHIFT FORK
3234077
$335,99 Unit Price incl. VAT
66
TUBE-VENT 90-1/4 HOSE
3234230
$19,94 Unit Price incl. VAT
67
SPROCKET-24T 6 FACE ENGAGEMENT
3233854
$257,24 Unit Price incl. VAT
68
LOW GEAR 33 TOOTH
3233852
9999999
Not Available
69
DOG; L/P
3234257
$283,49 Unit Price incl. VAT
70
ENGAGEMENT DOG 6 FACE
3234258
$178,49 Unit Price incl. VAT
71
SPROCKET; 19 TOOTH; 1.25 IN
3234441
$257,24 Unit Price incl. VAT
72
GEAR-35T HELICAL
3235783
3236032
$262,49 Unit Price incl. VAT
73
SHAFT-PINION 10T STRAIGHTBEVEL
3235855
$803,24 Unit Price incl. VAT
74
COUPLER
3235925
$204,74 Unit Price incl. VAT
77
COVER-CENTER DRIVE BEARING
3234063
$62,99 Unit Price incl. VAT
78
BRKT-MOUNT(430592)
3235350
$16,79 Unit Price incl. VAT
79
OIL DEFLECTOR
3234061
3239943
$52,49 Unit Price incl. VAT
80
SPACER
3235243
$17,84 Unit Price incl. VAT
81
CHAIN; .25 P X .40 W X 50 L
3234264
$188,99 Unit Price incl. VAT
82
CHAIN PITCHES; 3/8 X 1.25 X 86
3234442
$640,49 Unit Price incl. VAT
83
GEAR POSITION SWITCH PIN
7661999
$220,49 Unit Price incl. VAT
84
TRANSMISSION SPEED SENSOR
4013908
4082135
$204,74 Unit Price incl. VAT
85
O-RING
3233076
$11,54 Unit Price incl. VAT
86
O-RING
3234302
$13,64 Unit Price incl. VAT
87
O-RING
3233869
$10,49 Unit Price incl. VAT
88
TRIPLE LIP SEAL; 25 X 80 X 10
3234113
$68,24 Unit Price incl. VAT
89
TRIPLE LIP SEAL; 40 X 72 X 7
3235924
$73,49 Unit Price incl. VAT
90
TRIPLE LIP SEAL; 40 X 70 X 7
3234300
$57,74 Unit Price incl. VAT
91
O-RING 2-023 NITRIL
3234785
$17,84 Unit Price incl. VAT
92
SEAL
3234851
$68,24 Unit Price incl. VAT
93
TRIPLE LIP SEAL; 40 X 85 X 7
3235856
$73,49 Unit Price incl. VAT
94
HEX PLUG W/ O-RING; HOLLOW
3233794
$31,49 Unit Price incl. VAT
95
BALL BEARING; 20 X 47 X 14
3235969
$54,59 Unit Price incl. VAT
96
BEARING-BALL 6205R25X52X15
3235585
$54,59 Unit Price incl. VAT

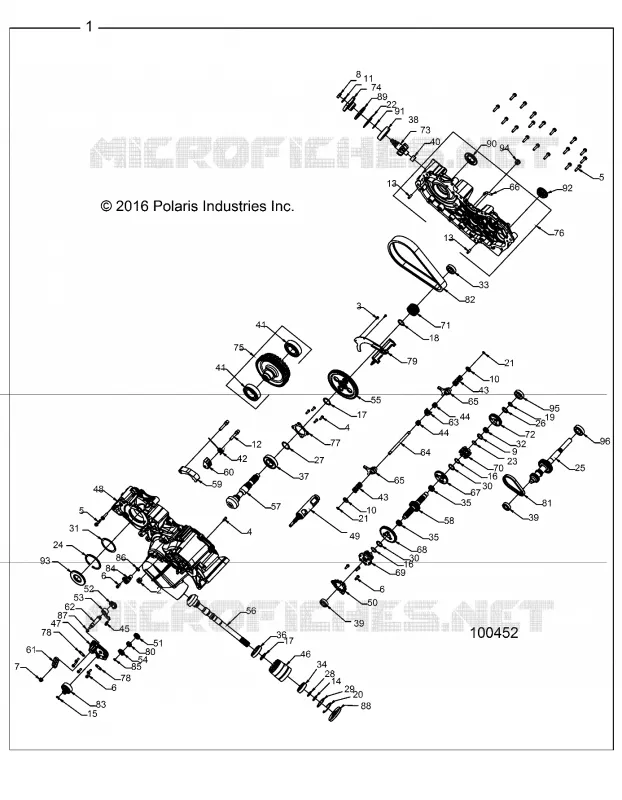

Find the detailed DRIVE TRAIN, MAIN GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
