1
Engine displacement
500
2
Year
1998
3
Trim
500 - 0982764B
4
Parts Catalog

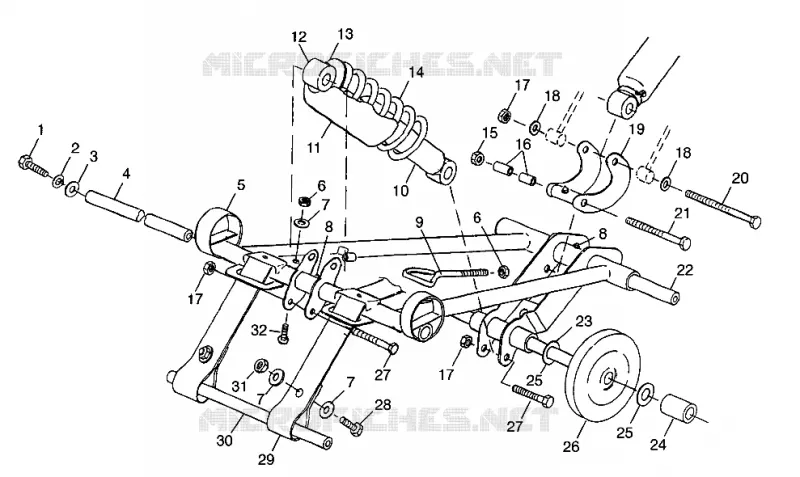

FRONT TORQUE ARM 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B009)
5
Parts Diagram
Parts Catalog
STEERING
by
REAR TORQUE ARM 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B010)
FRONT TORQUE ARM 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B009)
1
SCREW
7517247
9999999
Not Available
2
WASHER SPRINGLOCK
7553001
7552603
$1,56 Unit Price incl. VAT
3
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
4
SHAFT
5131450
9999999
Not Available
5
ARM FR.TORQUE X-10 QA BLK
1541203067
Not Available
6
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
7
WASHER
7555716
$3,14 Unit Price incl. VAT
8
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
9
EYE BOLT
7010050
9999999
Not Available
10
RETAINER SPRING
5241276067
Not Available
11
SPRING SHIELD
5430671
9999999
Not Available
12
SHOCK FR.TRACK
7041430
9999999
Not Available
13
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
14
COMPRESSION SPRING MEDIUM GLOSS BLACK
7041253067
Not Available
15
NUT LOCK
7542403
9999999
Not Available
16
PIVOT TUBE BUSHING
5020561
9999999
Not Available
16
SPACER
5333028
9999999
Not Available
17
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
18
WAVE SPRING WASHER
7555795
$2,09 Unit Price incl. VAT
19
ARM SHOCK
1540942067
Not Available
20
BOLT
7515472
$4,19 Unit Price incl. VAT
21
BOLT
7515438
$9,44 Unit Price incl. VAT
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
SPACER OUTER
5332784
9999999
Not Available
25
BUSHING
7556301
$6,29 Unit Price incl. VAT
26
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
27
SCREW
7515433
$3,14 Unit Price incl. VAT
28
SCREW
7517313
$9,44 Unit Price incl. VAT
29
STRAP LIMITER FRONT
5411045
9999999
Not Available
30
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
31
NUT NYLOK
7542344
$7,34 Unit Price incl. VAT
32
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT

Find the detailed FRONT TORQUE ARM 500 INDY 0982764(A)(B) AND EUROPEAN 500 INDY E982764A (4942104210B009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
