1
Engine displacement
500
2
Year
1992
3
Trim
500 SP EFI - 0920674
4
Parts Catalog
THROTTLE BODY 500 SP/500 SKS (4921262126043A)
5
Parts Diagram
Parts Catalog
COOLING SYSTEM 500 SP/500 SKS (4921262126037A)
by
FUEL PUMP 500 SP/500 SP (4921262126044A)
THROTTLE BODY 500 SP/500 SKS (4921262126043A)
1
THROTTLEBODY ASM.
3084350
Not Available
2
REGULATOR ASM.
3084351
Not Available
3
SENSORTHROTTLE POS.
3084055
9999999
Not Available
4
INJECTOR FUEL
3084056
Not Available
5
O RING CONNECTOR
3084057
Not Available
6
INSULATOR UPPER
3084058
Not Available
7
INSULATOR LOWER
3084059
9999999
Not Available
8
SCREW
3084359
Not Available
9
STAY PLATE
3084391
9999999
Not Available
10
JOINT PIPE
3084062
Not Available
11
O RING
3084063
Not Available
12
SCREW
3084064
9999999
Not Available
13
SCREW
3084065
Not Available
14
PIPE FUEL DELIVERY
3084363
Not Available
15
WIRE STAY (Wire)
3084364
Not Available
16
SCREW ADJUST.
3084068
9999999
Not Available
17
SPRING
3084069
Not Available
18
WASHER(10)
3084070
Not Available
19
SPRING
3084071
Not Available
20
NUT
3084072
Not Available
21
SCREW ADJUST.
3084073
9999999
Not Available
22
SCREW
3084392
Not Available
23
GASKET
3084385
Not Available
24
PIPE RUBBER
3084393
Not Available
25
CAP RUBBER
3084077
Not Available
26
THROTTLEBODY 1 ASM.
3084309
Not Available
27
FUEL LINE
8450045
8450123-153
$157,49 Unit Price incl. VAT
28
THROTTLEBODY 3 ASM.
3084311
9999999
Not Available
29
CLAMP HOSE
3084312
Not Available
30
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
31
CLAMP HOSE(SCREW TYPE)
7080417
$17,84 Unit Price incl. VAT
32
CABLE TIE
7080418
9999999
Not Available
33
FUEL LINE;(HI-PRESS.)
8450044
8450123-153
$157,49 Unit Price incl. VAT

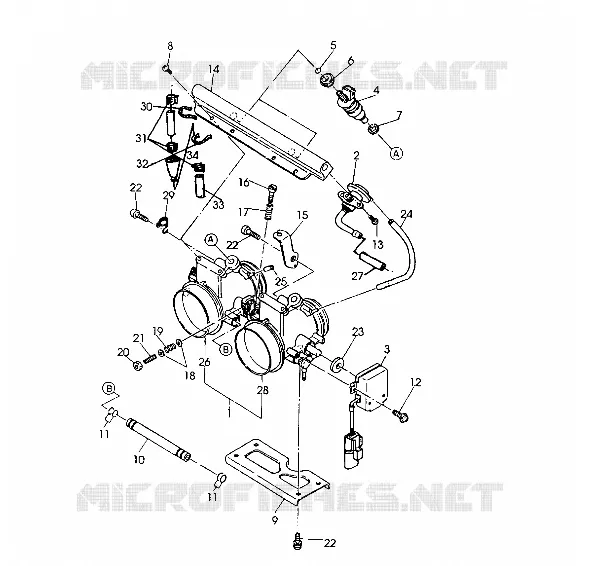

Find the detailed THROTTLE BODY 500 SP/500 SKS (4921262126043A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
