1
Engine displacement
1000
2
Year
2020
3
Trim
RZR RS1
4
Parts Catalog
ENGINE, CRANKSHAFT
5
Parts Diagram
Parts Catalog
CAM CHAIN AND TENSIONER
by
CYLINDER HEAD
ENGINE, CRANKSHAFT
1
1
2
3
3
4
4
5
5
5
5
5
6
6
6
6
7
8
8
8
9
10
1
CRANKSHAFT ASSEMBLY
3023169
3023103
$1 900,49 Unit Price incl. VAT
1
CRANKSHAFT ASSEMBLY
3023103
$1 900,49 Unit Price incl. VAT
2
BALANCE SHAFT ASSEMBLY
1204835
$677,24 Unit Price incl. VAT
3
CONNECTING ROD ASSEMBLY
3023077
3024568
$157,49 Unit Price incl. VAT
3
CONNECTING ROD ASSEMBLY
1204907
3024568
$157,49 Unit Price incl. VAT
4
BOLT FLANGE MJ9 X 1 X 40
7520378
$10,49 Unit Price incl. VAT
4
CONNECTING ROD BOLT
7519310
7520378
$10,49 Unit Price incl. VAT
5
MAIN GEARCASE; 41 MM; GREEN
3514662003
Not Available
5
MAIN BEARING; 41 MM; BLUE
3514662002
Not Available
5
MAIN BEARING; 41 MM; WHITE
3514662001
Not Available
5
MAIN BEARING; RED
3514662005
Not Available
5
MAIN BEARING; 41 MM; YELLOW
3514662004
Not Available
6
CON ROD BEARING; 41 MM; GREEN
3514663003
Not Available
6
CONNECTING ROD BEARING; 41MM; WHITE
3514663001
Not Available
6
BEARING-CON ROD; G-90; 41MM; YELLOW
3514663004
Not Available
6
CONNECTING ROD BEARING; 41 MM; BLUE
3514663002
Not Available
7
BALL SHAFT BEARING; 38 X 41 X 17.5
3514756
$16,79 Unit Price incl. VAT
8
MAIN BEARING; CENTER; LOWER
3514803004
Not Available
8
MAIN BEARING; CENTER; LOWER; BLUE
3514803002
Not Available
8
MAIN BEARING; CENTER; LOWER; GREEN
3514803003
Not Available
9
CRANKSHAFT SEAL
3610284
3610419
Not Available
10
WOODRUFF KEY
7721122
$13,64 Unit Price incl. VAT

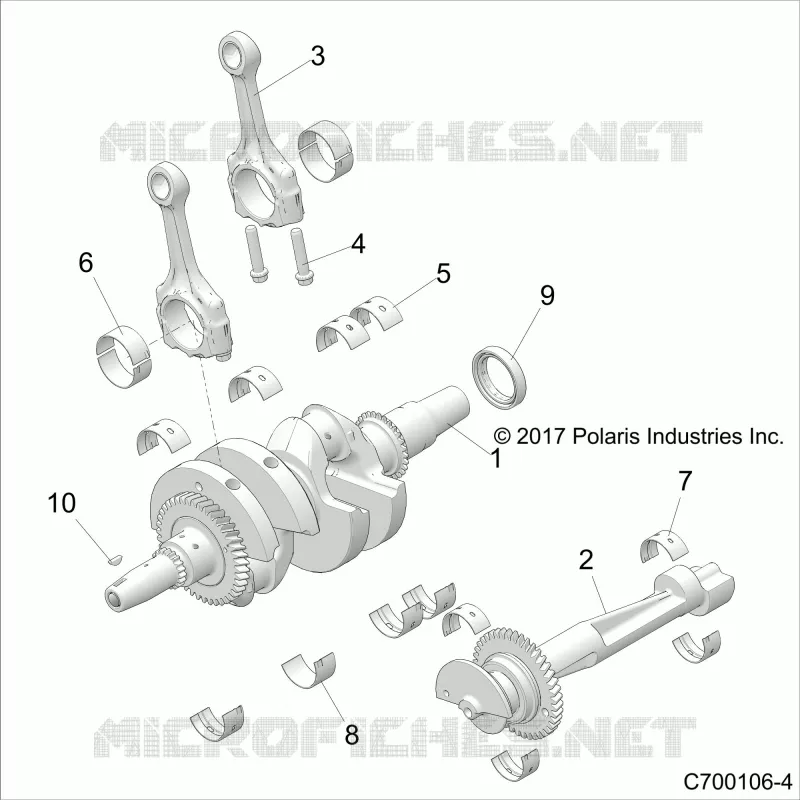

Find the detailed ENGINE, CRANKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
