BRAKE LINES for POLARIS SPORTSMAN 570 EFI UTE from 2019

BRAKE LINES

1

LINE-BRK AUX T 90F 70B 70B G2

1913041

$440,99 Unit Price incl. VAT

2

LINE-BRK SV T 20B 45B 45B G2

1913034

$367,49 Unit Price incl. VAT

3

LINE-BRK MCT 22 30B CF1 0 JF

1913044

$120,74 Unit Price incl. VAT

4

FITTING-CROSS ATV BRAKE BANJO

7052662

9999999

Not Available

5

LINE-BRK FR 33 20SB 70B 190 G2

1913035

$125,99 Unit Price incl. VAT

6

SCREW 10-24X5/8 (10)

7517756

$2,09 Unit Price incl. VAT

7

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

8

LINE-BRK FL 26 OF 70B G2

1913036

$141,74 Unit Price incl. VAT

9

SCREW

7512084

$2,09 Unit Price incl. VAT

10

BANJO BOLT; 10 MM X 1.25-6G

1910958

$14,69 Unit Price incl. VAT

11

SEAL

5413212

9999999

Not Available

12

BANJO BOLT; 10 MM X 1.00

1910499

$10,49 Unit Price incl. VAT

13

CLIP-RETAINING DUAL .250 LINE

7670126

$9,44 Unit Price incl. VAT

14

CLIP

7670102

$4,19 Unit Price incl. VAT

15

TIE CABLE; 14 IN

7080761

$5,24 Unit Price incl. VAT

16

CLIP-HALF-Y

7081940

$7,34 Unit Price incl. VAT

17

TUBING-CONVOLUTED .50ID 25CM

836005225

Not Available

18

SCREW

7512024

$9,44 Unit Price incl. VAT

19

SCREW

7515153

9999999

Not Available

20

NYLOK FLANGED NUT

7542153

$3,14 Unit Price incl. VAT

21

HEX NUT

7542105

$7,34 Unit Price incl. VAT

22

SEALED BRAKE SWITCH

4015069

4081239

Not Available

23

SWITCH-BRK M10X1.25 SGL NO RES

4017278

4081314

$153,29 Unit Price incl. VAT

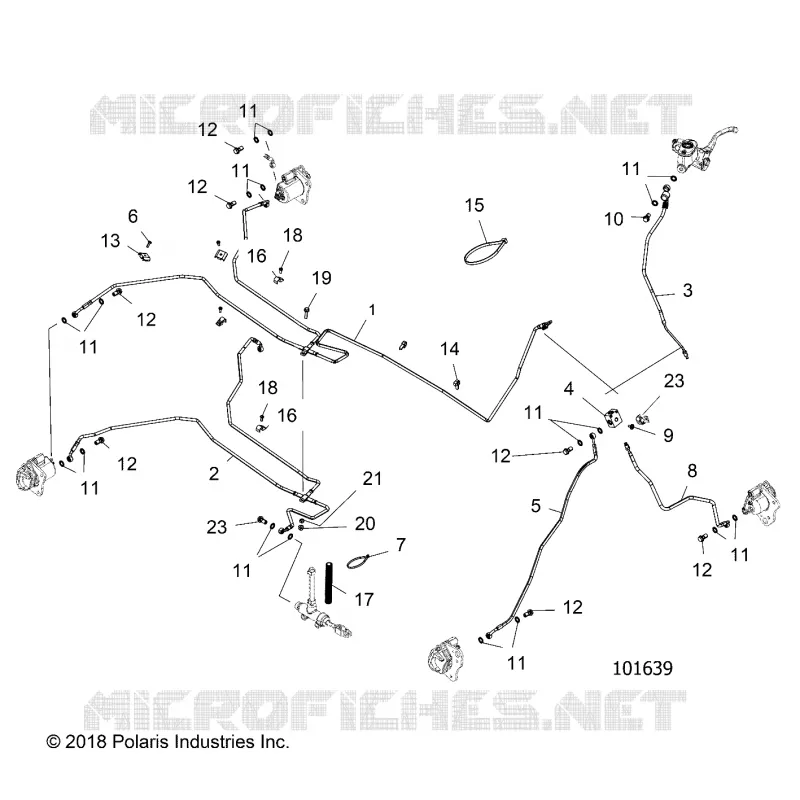

Find the detailed BRAKE LINES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
