ENGINE MOUNTING for POLARIS TRAIL BOSS 330 QUADRICYCLE - A05CA32EA from 2005

ENGINE MOUNTING

1

FUEL LINE; 1/4 ID

84500031525

Not Available

2

FITTING TEE

7052075

$17,84 Unit Price incl. VAT

3

NYLOK NUT

7542122

$2,09 Unit Price incl. VAT

4

FLAT WASHER

7558301

$2,09 Unit Price incl. VAT

5

BRKT-CARB MNTPLTD

5247946

9999999

Not Available

6

SCREW AND WASHER

3084205

9999999

Not Available

7

NUT

7547108

$9,44 Unit Price incl. VAT

8

CABLE GND-ENGINE

4010132

9999999

Not Available

9

SCREW

7517386

$2,09 Unit Price incl. VAT

10

BOLT

7512315

$9,44 Unit Price incl. VAT

11

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

12

MOUNT RUBBER ENGINE 45 DURO

3021181

9999999

Not Available

13

MOTOR MOUNT INSULATOR

5430802

9999999

Not Available

14

WASHER

7555823

$7,34 Unit Price incl. VAT

15

BRKT-ENGINE MNT TOPPLATED

5247344

9999999

Not Available

16

NARROW BAND CLAMP

7080511

$9,44 Unit Price incl. VAT

17

CLUTCH INTAKE BOOT

5411721

9999999

Not Available

18

ENGINE SHORT BLOCK ES320PFE103

3089535

9990000

Not Available

19

FLAT WASHER

7555815

$7,34 Unit Price incl. VAT

20

MOUNT RUBBER FRONT

3110046

9999999

Not Available

21

MOUNT ENGINE REAR BLK

1013413067

Not Available

22

NUT-3/8-16 FLG LOCK-Y

7547089

9999999

Not Available

23

SCREW

7515417

9999999

Not Available

24

MOUNT-LOWER FRONT ENG;PLTD

5247342

9999999

Not Available

25

BUSHING

5430261

$13,64 Unit Price incl. VAT

26

WASHER LOCK

7575202

$9,44 Unit Price incl. VAT

27

BOLT

7512566

9999999

Not Available

28

WASHER

5210748

$7,34 Unit Price incl. VAT

29

CABLE BATT/ENG. BLK.

4010095

9999999

Not Available

30

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

31

LINE FUEL-1/4 DP SAE J30R9

8450103

8450117-250

$99,74 Unit Price incl. VAT

32

FUEL LINE; 600 CM

8450040600

Not Available

33

SMALL IN-LINE FILTER

2530009

$12,59 Unit Price incl. VAT

34

NYLOK NUT

7546601

$2,09 Unit Price incl. VAT

35

VENT LINE;1/8;BULK

8360009

8360009-600

$83,99 Unit Price incl. VAT

36

VALVE CHECK

7051011

9999999

Not Available

37

MOUNT CARBURETOR

3110050

$19,94 Unit Price incl. VAT

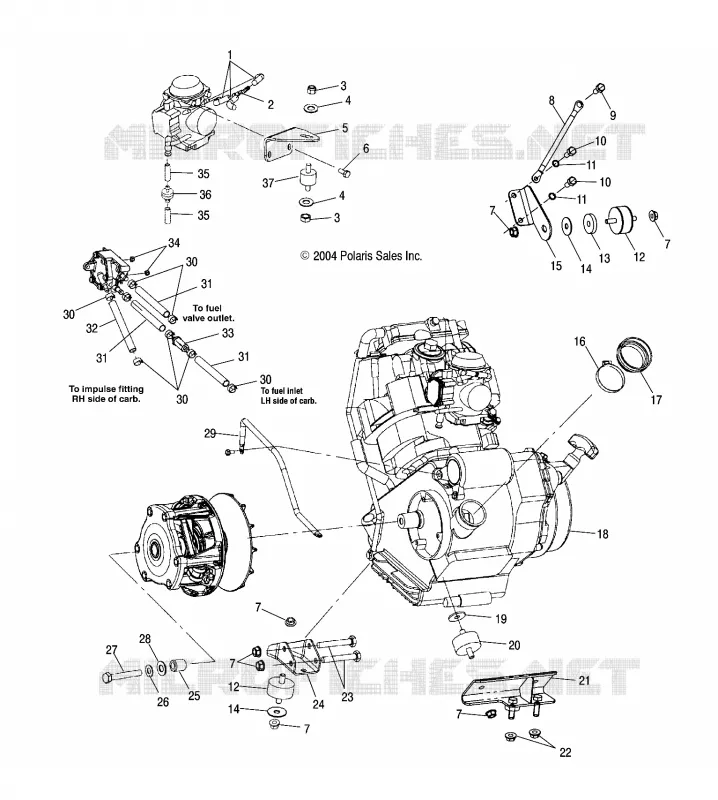

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
