SUSPENSION 500 AND 500 CLASSIC UPDATED 2/90 (4916791679015A)
-
RAIL ASM. LH
1540615
9999999
Not Available
1
RAIL ASM LH SILVER (Incl. 64-66 70-72) (400)
1540553
Not Available
1
RAIL ASM LH GOLD (Incl. 64-66 70-72)
1540560
Not Available
2
RAIL ASMRH SILVER
1540554
9999999
Not Available
2
RAIL ASM RH GOLD (Incl. 64-66 70-72)
1540561
Not Available
2
RAIL ASMRH
1540616
9999999
Not Available
3
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
4
BOLT
7515307
$7,34 Unit Price incl. VAT
5
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
6
STRAP LIMITER
5410397
9999999
Not Available
7
WASHER
7555716
$3,14 Unit Price incl. VAT
8
SHAFT MOUNTING
5010149
9999999
Not Available
9
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
10
RETAINER SPRING
5210953
$11,54 Unit Price incl. VAT
11
BOGIE WHEEL BRACKET
5130570
$89,24 Unit Price incl. VAT
12
SUSPENSION SHOCK
7041142
9999999
Not Available
13
ARM FRONT TORQUE Substituted by 1540667-067
1540667
Not Available
14
WASHER
7555743
9999999
Not Available
15
NUT FLEXLOC
7542402
9999999
Not Available
16
ADJUSTER BOLT
7515455
9999999
Not Available
17
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
18
WHEEL; IDLER
1594021
9999999
Not Available
19
SPACER-IDLER-OUTER
5332641
9999999
Not Available
20
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
21
WASHER FLAT
7555732
9999999
Not Available
22
SPACER OUTER
5332784
9999999
Not Available
23
SCREW
7515433
$3,14 Unit Price incl. VAT
24
ARM SHOCK PIVOT Substituted by 1540664-067
1540664
Not Available
25
WASHER
7555804
$7,34 Unit Price incl. VAT
26
BUSHING
7556301
$6,29 Unit Price incl. VAT
27
SPACER
5332786
$13,64 Unit Price incl. VAT
28
SHAFT-PIVOT ARM
5020392
5020723
$47,24 Unit Price incl. VAT
29
SHAFT-PIVOT ARM
5020415
9999999
Not Available
30
AXLE
5020426
9999999
Not Available
31
SHAFT REAR IDLER
5020395
9999999
Not Available
32
TUBE; SUSPENSION
5332783
9999999
Not Available
33
BUSHING R.SHOCK
5333030
9999999
Not Available
34
BOLT
7512329
$7,34 Unit Price incl. VAT
35
IDLER WHEEL; 5.35 IN
1543018
$115,49 Unit Price incl. VAT
36
SPACER IDLER R.INNER Substituted by 5333086
5332734
Not Available
37
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
38
WHEEL IDLER
1594033
Not Available
38
WHEEL IDLER BLUE
1594038
9999999
Not Available
39
SHOCK ASM.
7041237
9999999
Not Available
40
ARM REAR TORQUE Substituted by 1540666-067
1540666
Not Available
41
ARM REAR PIVOT Substituted by 1540665-067
1540665
Not Available
42
WHEEL CARRIER ASSEMBLY
1543022
$115,49 Unit Price incl. VAT
43
TUBE
5431171
9999999
Not Available
44
SPRING; LH
7041235
7041235-067
Not Available
45
SPRING; RH
7041236
9999999
Not Available
46
BOLT
7512659
9999999
Not Available
47
WASHER
7555726
$3,14 Unit Price incl. VAT
48
SPACER-CARR.WHEEL
5332730
9999999
Not Available
49
ROD SUSPENSION Substituted by 1540662-067
1540662
Not Available
50
SPRING SHIELD
5430671
9999999
Not Available
51
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
52
PUSH ON CLIP
7080394
$4,19 Unit Price incl. VAT
53
SPRING-SHOCK
7041127
9999999
Not Available
54
BOLT
7512404
$7,34 Unit Price incl. VAT
55
SPACER
5332787
9999999
Not Available
56
ROLLER-SPRING
5430540
9999999
Not Available
57
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
58
BUSHING SUSPENSION
5010212
Not Available
59
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
60
SCREW
7512227
$6,29 Unit Price incl. VAT
61
SLIDE RED (HIFAX)
5521104
5521452
$73,49 Unit Price incl. VAT
62
SHAFT R.TORQUE ARM Substituted by 5020727
5020559
Not Available
63
NUT LOCK
7542403
9999999
Not Available
64
RIVET (50)
7661609
9999999
Not Available
65
BUMPER-SUSPENSION
5410315
9999999
Not Available
66
PALNUT(10)
7670009
9999999
Not Available
67
COVER-RAIL TIP
5430627
9999999
Not Available
68
RIVET(10)
7621435
$2,09 Unit Price incl. VAT
69
SPACER R.PIVOT ARM
5333026
9999999
Not Available
71
BLOCK-IDLER BOLT ADJ.
5130530
$62,99 Unit Price incl. VAT
72
BOLT
7512247
9999999
Not Available
73
TRACK (650) (650)
5410498
Not Available
73
TRACK; 133
5410461
5410823
Not Available
73
TRACK
5410492
5410498
Not Available
74
BOLT
7515438
$9,44 Unit Price incl. VAT
75
INSERT-WHEEL
5430789
5431531
$19,94 Unit Price incl. VAT
76
BOLT(10)
7515432
9999999
Not Available
77
KNOB SPRING ADJ.
5630361
Not Available
78
NUT FLANGE LOCK
7542449
$7,34 Unit Price incl. VAT
79
SPACER
5333028
9999999
Not Available
80
SCREW
7515415
9999999
Not Available
81
SCREW 3/8-16X3 1/2HXHD TAP
7515459
$10,49 Unit Price incl. VAT
82
TUBE
5130748
Not Available
83
BOLT
7515496
$17,84 Unit Price incl. VAT
84
ROD; SPRING ADJ.
5130746
9999999
Not Available
85
ROLLER SPRING ADJUSTED
5431168
9999999
Not Available
86
SHOCK SPACER REAR
5211224
9999999
Not Available
87
CLIP TRACK
5240011
Not Available
87
SLIDER; BLACK
5521320
9999999
Not Available
87
SLIDER BLUE(2)
5521322
9999999
Not Available
87
PIVOT TUBE BUSHING
5020561
9999999
Not Available

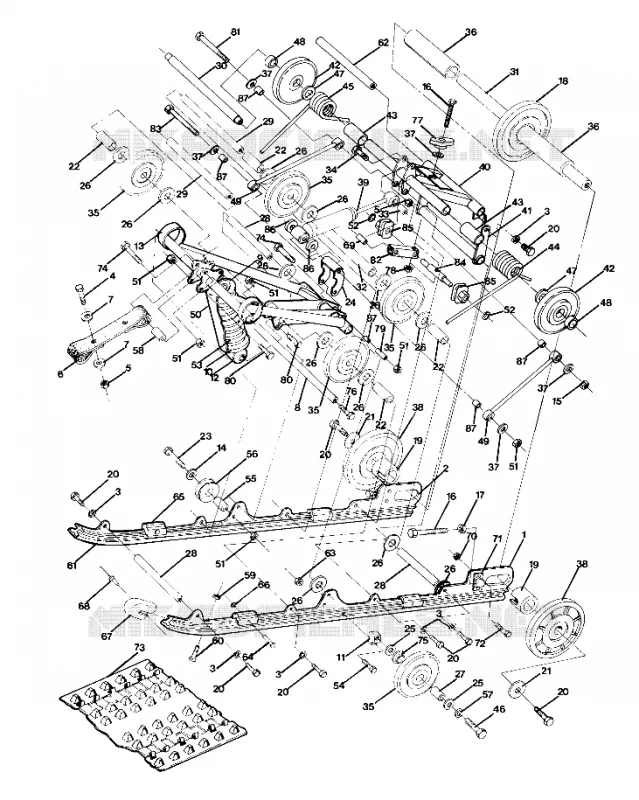

Find the detailed SUSPENSION 500 AND 500 CLASSIC UPDATED 2/90 (4916791679015A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
