1
Engine displacement
autre
2
Year
1996
3
Trim
EURO XLT SKS - E960556
4
Parts Catalog

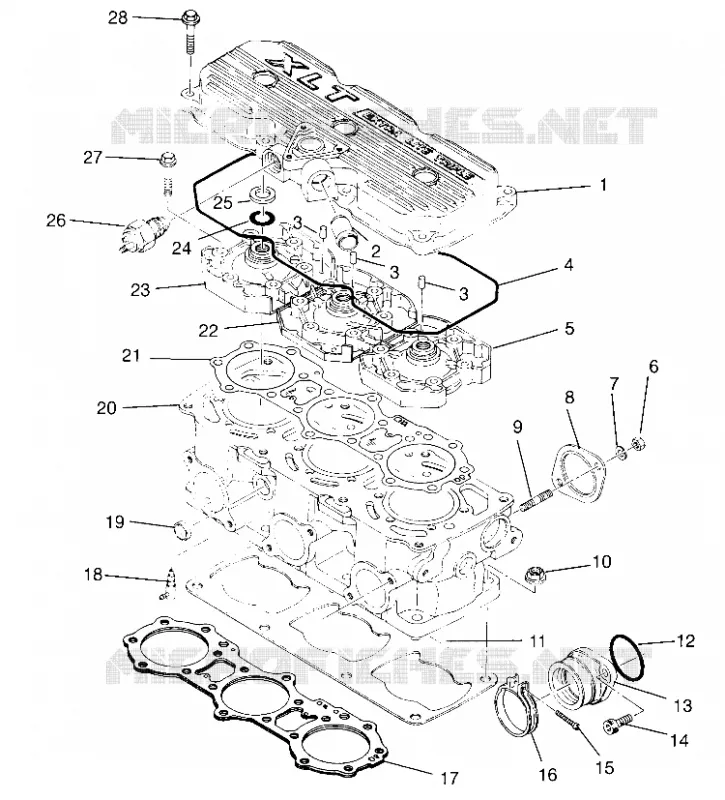

CYLINDER XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C009)
5
Parts Diagram
Parts Catalog
CRANKCASE XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C008)
by
OIL PUMP XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C014)
CYLINDER XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C009)
1
2
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
2
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
2
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
COVERHEAD(3 CYL)
3085190
9999999
Not Available
2
PIPE WATER CPL. (Water)
3084431
Not Available
3
PIN DOWEL
3084721
9999999
Not Available
4
O-RING (HEADCOVER)
3084434
9999999
Not Available
5
HEAD CYL. (MAG) (Mag)
3084674
Not Available
6
NUT
3080285
9999999
Not Available
7
LOCK WASHER
3080530
9999999
Not Available
8
GASKET EXH
3084439
9999999
Not Available
9
STUD
3084270
9999999
Not Available
10
FLANGE NUT
3082911
7547013
$3,14 Unit Price incl. VAT
11
GASKET CYLINDER
3084593
9999999
Not Available
12
O-RING
3084272
5418045
$36,74 Unit Price incl. VAT
13
ADAPTER
3084438
9999999
Not Available
14
SOCKET HEAD BOLT
3081330
9999999
Not Available
15
PAN HEAD SCREW
3081497
9999999
Not Available
16
BAND ASSEMBLY ADAPTER
3082257
9999999
Not Available
17
GASKET #1HEAD
3085003
9999999
Not Available
18
VALVE CHECK
3083337
7051020
$68,24 Unit Price incl. VAT
19
PLUG
3084428
9999999
Not Available
20
CYLINDER
3085017
9999999
Not Available
21
GASKET HEAD
3085005
9999999
Not Available
22
HEAD CYL. (CEN) (Cen)
3084675
Not Available
23
HEAD CYL. (PTO) (PTO)
3084676
Not Available
24
O RING
3085192
9999999
Not Available
25
SPACER
3084722
9999999
Not Available
26
SWITCH THERMAL
3084284
9999999
Not Available
27
BOLT FLANGE (10)
3084435
9999999
Not Available
28
BOLT; FLANGE
3084437
9999999
Not Available

Find the detailed CYLINDER XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
