1
Engine displacement
650
2
Year
1990
3
Trim
FIN 650 - F900758
4
Parts Catalog
MAGNETO 650 (4916801680026A)
5
Parts Diagram
Parts Catalog
PISTON AND CRANKSHAFT 650 (4916801680025A)
by
RECOIL STARTER 650 (4916801680027A)
MAGNETO 650 (4916801680026A)
1
PLATE MAG ASM (Incl. 2-16)
3082958
Not Available
2
COIL EXCITING
3082959
Not Available
3
COIL PULSATING
3082960
Not Available
4
COLLAR
3082961
Not Available
5
SCREW-WASHER ASM(10)
3082962
9999999
Not Available
6
COIL CONTROL
3082963
Not Available
7
COIL LIGHTING Substituted by 3081252
3082964
Not Available
8
ASM. SCREW AND WASHER(10)
3082365
9999999
Not Available
9
COIL-LIGHTING
3082965
Not Available
10
COLLAR
3083872
Not Available
12
CLAMP [No Longer Available]
3082968
Not Available
13
ASM. SCREW&WASHER(10)
3081260
9999999
Not Available
14
CLAMP
3081146
9999999
Not Available
15
GROMMET
3082969
9999999
Not Available
16
COUPLER MALE
3081513
9999999
Not Available
17
FLYWHEEL
3082970
9999999
Not Available
18
BOLT&WASHER ASM.
3083866
9999999
Not Available
19
COUPLER 6P MALE
3083408
Not Available
20
WASHER
3083357
9999999
Not Available
21
CDI UNIT (Incl. 16 22)
3083721
Not Available
22
COUPLER 6P FEMALE
3083406
Not Available
23
COIL ASM IGNITION (Incl. 24)
3082974
Not Available
24
COUPLER
3082975
Not Available
25
SCREW & WASHER ASM.
3083867
Not Available
26
SUBSTITUTED BY 4083595
3083282
$52,49 Unit Price incl. VAT

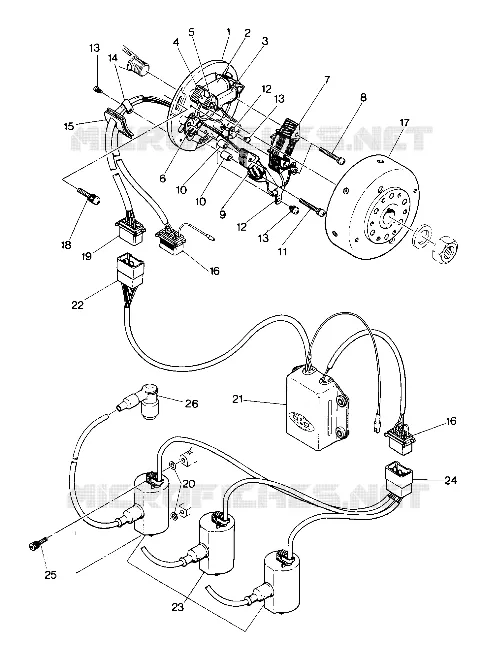

Find the detailed MAGNETO 650 (4916801680026A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
