WALKER EVANS IFS SHOCK
-
40
41
42
43
44
45
-
SHOCK-IFS WALKER/EVANS
7042180
9999999
Not Available
1
O-RING BODY
1800027
$3,66 Unit Price incl. VAT
2
3/8 AN WASHER (10)
1800050
$7,34 Unit Price incl. VAT
3
CONVEX PISTON WITH BAND ASSEMBLY
1800130
9999999
Not Available
4
SHAFT BUSHING
1800038
9999999
Not Available
5
O-RING SHAFT SEAL HEAD (10)
1800037
$3,14 Unit Price incl. VAT
6
SHAFT SEAL U CUP
1800035
9999999
Not Available
7
D/TYPE WIPER
1800034
$68,24 Unit Price incl. VAT
8
END CAP SNAP RING
1800041
$15,74 Unit Price incl. VAT
9
EYELET
1800103
9999999
Not Available
10
WASHER-.090 X .875(10)
1800117
9999999
Not Available
11
WEAR BAND
1800026
1800297
$62,99 Unit Price incl. VAT
12
CRIMP NUT 3/8 IN
1800031
$7,34 Unit Price incl. VAT
13
WASHER-.090 X 1.000(10)
1800118
9999999
Not Available
14
O-RING RESERVOIR
1800028
$3,14 Unit Price incl. VAT
15
RESERVOIR PISTON
1800016
9999999
Not Available
16
END CAP
1800106
9999999
Not Available
17
SCREW-BUTTON HEAD 8/32(10)
1800109
$6,29 Unit Price incl. VAT
18
O-RING(10)
1800108
9999999
Not Available
19
VALVE-NEEDLE
1800107
9999999
Not Available
20
RESERVOIR SNAP RING (10)
1800019
9999999
Not Available
21
WEAR BAND
1800029
9999999
Not Available
22
BOLT-BALL CHECK
1800124
9999999
Not Available
23
VALVE-.025 X 1.100(10)
1800091
9999999
Not Available
24
BALL-CHECK(1)
1800125
9999999
Not Available
25
BODY-RESERVOIR 4.5
1800120
9999999
Not Available
26
IFS-THREADED BODY
1800100
9999999
Not Available
27
ASM-SHAFT SEAL HOUSING
1800131
9999999
Not Available
28
O-RING
1800095
$2,09 Unit Price incl. VAT
29
SHAFT-9.123 L
1800102
9999999
Not Available
30
SPRING RETAINING RING
1800116
$120,74 Unit Price incl. VAT
31
END BEARING
1800040
$152,24 Unit Price incl. VAT
32
WEAR SLEEVE
1800047
$73,49 Unit Price incl. VAT
33
SPRING RETAINER
1800046
$68,24 Unit Price incl. VAT
34
LOOP-BODY
1800098
9999999
Not Available
35
FITTING-1/8 NPT 45
1800115
9999999
Not Available
36
ASM-HOSE
1800110
9999999
Not Available
37
HOUSING-ADJUSTOR
1800126
9999999
Not Available
38
SPRING-D-TENT(10)
1800128
$20,99 Unit Price incl. VAT
39
KNOB
1800123
9999999
Not Available
40
BALL-D-TENT(10)
1800127
$12,59 Unit Price incl. VAT
41
SHIM-VALVE .010X.700 (10)
1800052
9999999
Not Available
42
O-RING(10)
1800094
9999999
Not Available
43
O-RING(10)
1800129
9999999
Not Available
44
SCREW-10/32 ALLEN(10)
1800122
9999999
Not Available
45
DRUM
1800121
9999999
Not Available

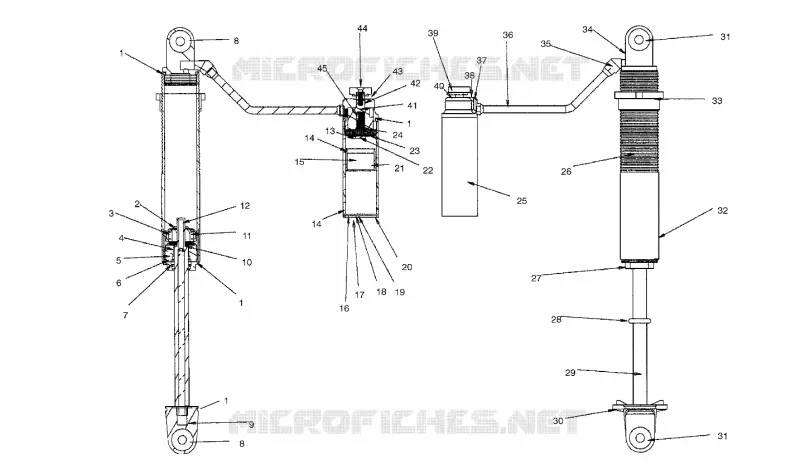

Find the detailed WALKER EVANS IFS SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

440 PRO X 440 2003
