1
Engine displacement
autre
2
Year
1993
3
Trim
EURO RXL SKS - E930568
4
Parts Catalog
COOLING SYSTEM RXL / 0930768 AND RXL SKS / 0930568 (4922992299013A)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI RXL / 0930768 AND RXL SKS / 0930568 (4922992299011A)
by
STEERING
COOLING SYSTEM RXL / 0930768 AND RXL SKS / 0930568 (4922992299013A)
1
EXCHANGER COOLING
2511208
9999999
Not Available
2
FOAM TAPE
5810814
9999999
Not Available
3
CLAMP; HOSE
7080498
9999999
Not Available
4
HOSE COOLING
5410758
9999999
Not Available
5
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
6
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
7
RIVET
7661625
7661638
$2,09 Unit Price incl. VAT
8
COOLING WELD RH
2511224
Not Available
8
COOLING WELDLH
2511223
9999999
Not Available
9
GUARD COOL.EXT.
5222863
9999999
Not Available
10
CLAMP-HOSE
7080225
9999999
Not Available
11
HOSE-CROSSOVER
5410324
9999999
Not Available
12
EDGE TRIM; 6 FT; BLACK
5521131
9999999
Not Available
13
TUBING CONVOL 1 X2.5
5521242
9999999
Not Available
14
HOSE BRK.COOL.SIDE
5410705
9999999
Not Available
15
HOSE;ENG/BRK.COOLER
5410740
9999999
Not Available
16
DESC NOT_AVAILABLE
845004816
Not Available
17
BRKT; SURGE TANK
5222803
9999999
Not Available
18
HOSE;87CM.(COOLANT)
845004887
Not Available
19
GROMMET RUBBER
5410021
9999999
Not Available
20
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
21
STRAP BLK
7080272
9999999
Not Available
22
HOSE SIDE (COOL.-TUNNEL) Substituted by 5410803
5410694
Not Available
23
TANK SURGE COOLANT
5431487
9999999
Not Available
24
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
25
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
26
VENT LINE;1/8;BULK
8360009
8360009-600
$83,99 Unit Price incl. VAT
27
OIL CAP GASKET
5810141
$4,19 Unit Price incl. VAT
28
CAP SURGETANK
5431433
Not Available
29
BOLT
7512240
9999999
Not Available

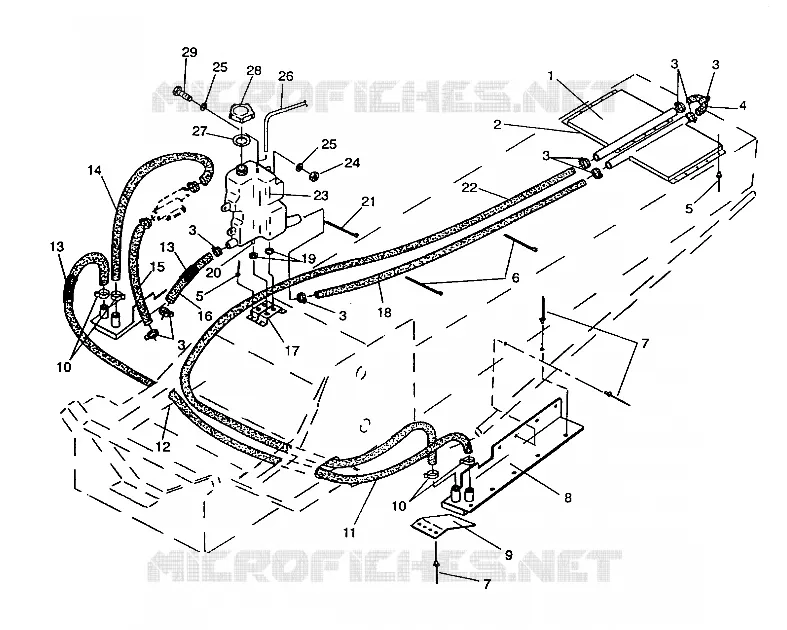

Find the detailed COOLING SYSTEM RXL / 0930768 AND RXL SKS / 0930568 (4922992299013A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
