1
Engine displacement
500
2
Year
1997
3
Trim
500 RMK - 0972964
4
Parts Catalog
RAIL MOUNTING (SUSPENSION) 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972 (4938393839C002)
5
Parts Diagram
Parts Catalog
SUSPENSION (SKS/RMK) 500 SKS 0972564, EUROPEAN 500 SKS E972564 AND 500 RMK (4938393839C001)
by
FRONT TORQUE ARM (500/RMK) 500 0972764, EUROPEAN 500 E972764 AND 500 RMK 09 (4938393839C004)

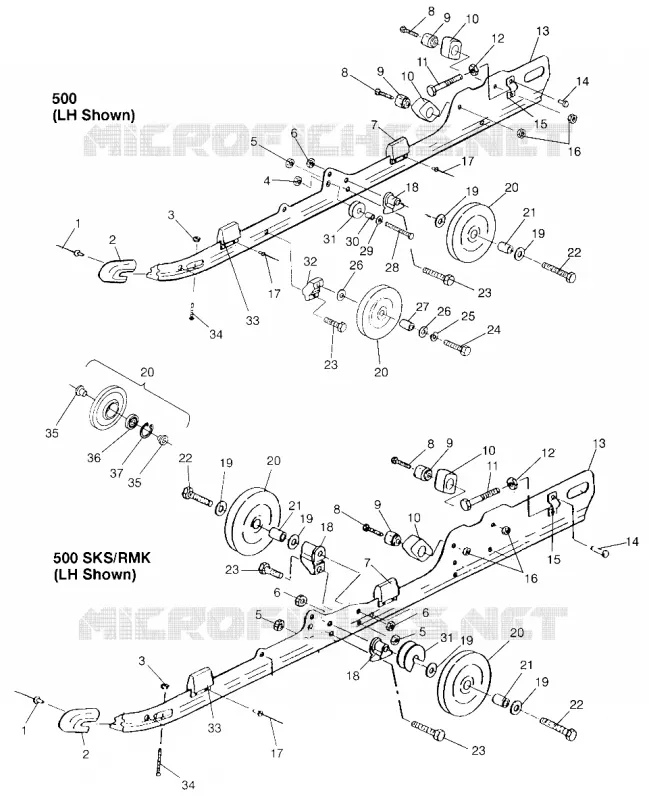

RAIL MOUNTING (SUSPENSION) 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972 (4938393839C002)
1
RIVET(10)
7621435
$2,09 Unit Price incl. VAT
2
COVER RAIL TIP
5431421
9999999
Not Available
3
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
4
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
5
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
6
NYLOK NUT
7542525
$9,44 Unit Price incl. VAT
7
REINF.; BUMPER
5222629
9999999
Not Available
7
BUMPER; RAIL
5810554
9999999
Not Available
8
BOLT(10)
7515537
$15,74 Unit Price incl. VAT
9
BUMPER MOUNT
5131113
$52,49 Unit Price incl. VAT
10
PIVOT ARM BUMPER
5410925
$26,24 Unit Price incl. VAT
11
ADJUSTER BOLT
7515455
9999999
Not Available
12
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
13
RAIL ASMLH133"
1540946
9999999
Not Available
13
RAIL ASMRH133
1540947
9999999
Not Available
13
RAIL RH 121 XTRA 10 (XLT) (Incl. 2 7 15 33)
1541147
Not Available
13
RAIL LH 121 XTRA 10
1541146
9999999
Not Available
14
RIVET
7621501
$4,19 Unit Price incl. VAT
15
BLOCK-IDLER BOLT ADJ.
5130530
$62,99 Unit Price incl. VAT
16
NUT LOCK
7542403
9999999
Not Available
17
RIVET
7621476
$2,09 Unit Price incl. VAT
18
SPACER
5630399
$20,99 Unit Price incl. VAT
19
FLAT WASHER
7555852
$4,19 Unit Price incl. VAT
20
IDLER WHEEL; 5.35 IN
1543018
$115,49 Unit Price incl. VAT
21
WHEEL SPACER
5333116
$13,64 Unit Price incl. VAT
22
BOLT
7512538
9999999
Not Available
23
BOLT
7512404
$7,34 Unit Price incl. VAT
24
BOLT
7512659
9999999
Not Available
25
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
26
WASHER
7555801
$7,34 Unit Price incl. VAT
27
SPACER
5332786
$13,64 Unit Price incl. VAT
28
SCREW
7515433
$3,14 Unit Price incl. VAT
29
WASHER
7555743
9999999
Not Available
30
SPACER
5332787
9999999
Not Available
31
SPRING ROLLER
5431366
$19,94 Unit Price incl. VAT
31
ROLLER SPRING
5432170
9999999
Not Available
32
BOGIE WHEEL BRACKET
5130570
$89,24 Unit Price incl. VAT
33
BUMPER SUSPENSION
5811097
9999999
Not Available
34
BOLT KIT
7515175
$7,34 Unit Price incl. VAT
35
WHEEL INSERT
5431531
$19,94 Unit Price incl. VAT
36
BEARING
3514303
$20,99 Unit Price incl. VAT
37
RETAINING RING
7718407
$9,44 Unit Price incl. VAT

Find the detailed RAIL MOUNTING (SUSPENSION) 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972 (4938393839C002) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
