CHASSIS, MAIN FRAME AND SKID PLATE
1
2
3
4
5
6
7
8
8
9
10
11
12
13
13
14
14
15
16
17
17
18
18
19
20
21
1
MAIN FRAME WELD REAR MATTE BLACK
1018109458
Not Available
2
WELD-BRACE BOLT IN REAR BLK
1018959329
Not Available
3
SKID PLATE; FRONT; PLASTIC; GLOSS BLACK
5438909070
Not Available
4
BUMPER SUPPORT WELD REAR MATTE BLACK
1017473458
Not Available
5
SKID PLATE WASHER
7556065
$8,39 Unit Price incl. VAT
6
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
7
FRONT BUMPER SUPPORT; MATTE BLACK
1017471458
Not Available
8
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
9
HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM
7519285
$4,19 Unit Price incl. VAT
10
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
11
BRKT-DOUBLER RR CAB MNT;LH;BLK
5255089458
Not Available
12
BRKT-DOUBLER RR CAB MNT;RH;BLK
5255091458
Not Available
13
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518702
$7,34 Unit Price incl. VAT
14
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
15
FRAME WELD FRONT MATTE BLACK RZR XP 4
1018110458
Not Available
16
BRKT-CPLR FRAME EXT SIDE M BLK
5253873458
Not Available
17
SCREW
7516732
$3,14 Unit Price incl. VAT
18
HEX FLANGE BOLT; 10 MM X 1.5 MM X 55 MM
7518474
$9,44 Unit Price incl. VAT
19
HEX FLANGE NUT; 10 MM X 1.5 MM
7547313
$2,09 Unit Price incl. VAT
20
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT
21
SKID PLATE; REAR; PLASTIC; GLOSS BLACK
5438911070
Not Available

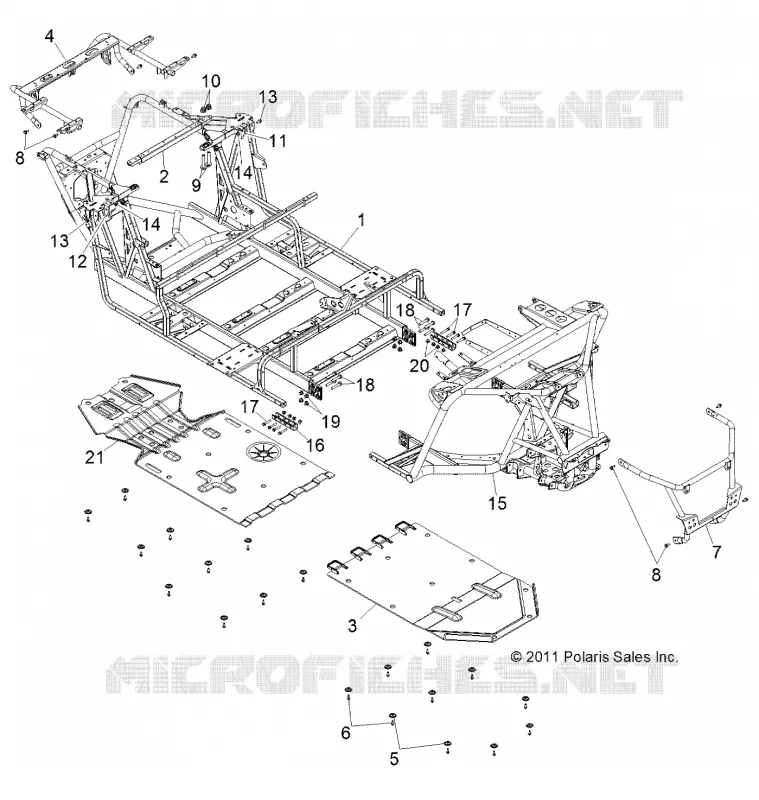

Find the detailed CHASSIS, MAIN FRAME AND SKID PLATE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

RZR 4 900 INTL 900 2014
