1
Engine displacement
600
2
Year
1999
3
Trim
600 RMK - 099SR6DS
4
Parts Catalog
FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
BRAKE
by
CHAINCASE
FRONT SUSPENSION
1
1
2
3
4
5
5
6
6
7
7
7
7
8
8
8
8
9
10
10
10
11
11
11
11
12
13
13
14
15
16
17
17
17
17
18
18
18
18
19
19
19
19
20
21
22
23
24
25
26
27
28
29
29
29
29
30
31
32
32
32
33
33
34
35
36
36
37
37
37
37
38
39
40
40
40
40
41
42
42
42
42
43
44
45
46
47
48
1
1
2
3
4
5
5
6
6
7
7
7
7
8
8
8
8
9
10
10
10
11
11
11
11
12
13
13
14
15
16
17
17
17
17
18
18
18
18
19
19
19
19
20
21
22
23
24
25
26
27
28
29
29
29
29
30
31
32
32
32
33
33
34
35
36
36
37
37
37
37
38
39
40
40
40
40
41
42
42
42
42
43
44
45
46
47
48
1
1
2
3
4
5
5
6
6
7
7
7
7
8
8
8
8
9
10
10
10
11
11
11
11
12
13
13
14
15
16
17
17
17
17
18
18
18
18
19
19
19
19
20
21
22
23
24
25
26
27
28
29
29
29
29
30
31
32
32
32
33
33
34
35
36
36
37
37
37
37
38
39
40
40
40
40
41
42
42
42
42
43
44
45
46
47
48
1
STRAP SPACER BOTTOM
5211345
9999999
Not Available
2
NUT FLEXOC;
7542703
9999999
Not Available
3
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
4
BOLT
7512551
9999999
Not Available
5
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
6
NUT FLEXLOCK
7542503
9999999
Not Available
7
BAR SWAY BLK
5224742067
Not Available
7
BAR SWAY
5224757067
Not Available
8
BUSHING; SWAY BAR
5432412
9999999
Not Available
8
SWAY BAR BUSHING
5432038
9999999
Not Available
9
RIVET (50)
7621477
9999999
Not Available
10
NUT LOCK
7542403
9999999
Not Available
11
ARM RH STRG BLK.
5241661067
Not Available
11
ARM LH STRG BLK.
5241660067
Not Available
12
RIVET(50)
7661643
7661130
$2,09 Unit Price incl. VAT
13
WASHER
7555721
$2,09 Unit Price incl. VAT
14
BUSHING TUBE
5010310
9999999
Not Available
15
RUBBER PIVOT
5410872
9999999
Not Available
16
BOLT
7512557
9999999
Not Available
17
ARM TRLG LH CRC.
1822517
9999999
Not Available
17
ARM TRLG RH CRC. Substituted by 2201471 (Incl. 13 14)
1822518
Not Available
18
SWAYBAR SLIDE; 5/8
5432561
9999999
Not Available
18
SWAY BAR SLIDE; 9/16
5432674
9999999
Not Available
19
STOP RH STRG BLK.
5241778067
Not Available
19
STOP LH STRG BLK
5241777067
Not Available
20
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
21
BUSHING
7556509
$3,14 Unit Price incl. VAT
22
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
23
SPINDLE SHAFT; MEDIUM GLOSS BLACK
6230102067
Not Available
24
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
25
RETAINER SPRING BODY THREADED
1500063
9999999
Not Available
26
ADJUSTABLE PRELOAD SPRING RING
5431734
$104,99 Unit Price incl. VAT
27
SPRING-COMP IFS 10.75/100 BLK
7041551067
Not Available
28
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
29
SHOCK GAS IFS (XLT SKS)
7041538
Not Available
29
SHOCK GAS IFS
7041543
9999999
Not Available
30
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
31
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
32
SCR-3/8-24X2 HX/CP GR5-Y-SP
7517583
$7,34 Unit Price incl. VAT
33
SCREW
7515415
9999999
Not Available
34
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
35
WASHER
7555832
$4,19 Unit Price incl. VAT
36
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
37
RODRADUPPERBLK
1822375067
Not Available
37
ROD RAD UPPER BLK
1822446067
Not Available
38
NUT JAM(10)
7542520
9999999
Not Available
39
ROD END 7/16 LINED
7061010
9999999
Not Available
40
ROD RAD LOWER BLK
1822377067
Not Available
40
RADIUS ROD; LOWER; MEDIUM GLOSS BLACK
1822444067
Not Available
41
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
42
ROD END;1/2 LINED
7061011
7061071
$99,74 Unit Price incl. VAT
42
RODEND 1/2 W/LINER 1.05 WIDE
7061027
7061052
$99,74 Unit Price incl. VAT
43
RIVET
7621452
9999999
Not Available
44
PAN BRACE; LOWER; MEDIUM GLOSS BLACK
5242575067
Not Available
45
BOLT
7512684
9999999
Not Available
46
BRKT RAD.ROD BTM.
5242578
9999999
Not Available
47
BRACE FR.BULKH. BLK Substituted by 5242112-067
5241641067
Not Available
48
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT

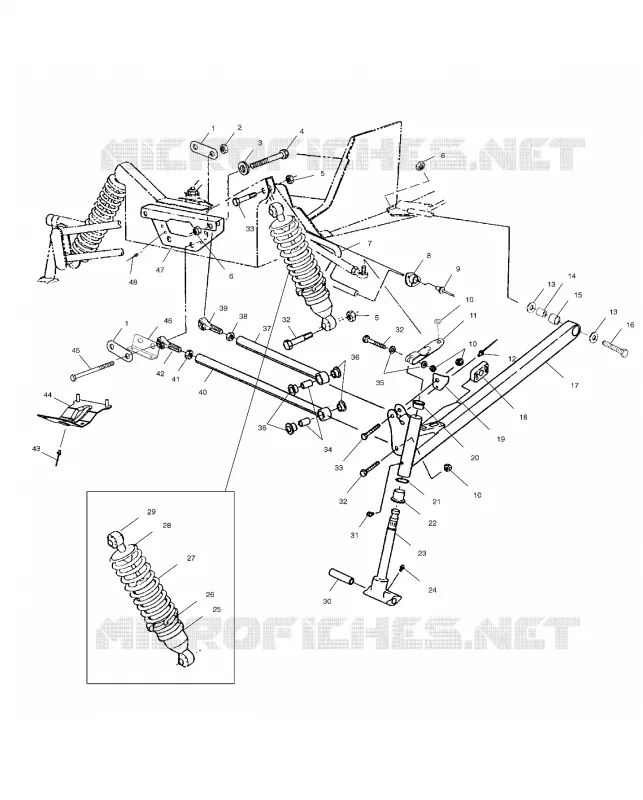

Find the detailed FRONT SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
