by
FRONT SUSPENSION AND SKI TRAIL 0962761, TRAIL TOURING 0962262, AND EUROPEAN (4931763176B001)
1
BOLT(10)
7515515
9999999
Not Available
2
NUT; NYLOC
7542453
7542439
$2,09 Unit Price incl. VAT
3
RETAINER SPRING BODY THREADED
1500063
9999999
Not Available
3
SPRING .306 COMP(LT) BLK.
7041405067
Not Available
3
ADJUSTABLE PRELOAD SPRING RING
5431734
$104,99 Unit Price incl. VAT
3
SPRING RETAINER; SLOTTED
5020618
$36,74 Unit Price incl. VAT
4
SHOCK GAS IFS
7041423
9999999
Not Available
5
BOLT
7515491
7515433
$3,14 Unit Price incl. VAT
6
BRACE BLKHD/STRG BLK.
5211589067
Not Available
7
STRAP SPACER TOP
5211344
$13,64 Unit Price incl. VAT
8
STRAP SPACER BOTTOM
5211345
9999999
Not Available
9
BOLT
7512582
9999999
Not Available
10
BOLT
7512684
9999999
Not Available
11
BAR SWAY 9/16-41
5224678067
Not Available
12
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
13
COMPRESSION SPRING
7041261067
Not Available
14
SPRING PROTECTOR SLEEVE
5431032
9999999
Not Available
15
CAM ADJUSTING SPRING
5630334
9999999
Not Available
16
SHOCK IFS GAS/CAM
7041388
Not Available
17
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
18
STOP LH STRG BLK.
5240397067
Not Available
18
STOP RH STRG BLK.
5240398067
Not Available
19
BUSHING-SWAYBAR
5410383
9999999
Not Available
20
WASHER
7555851
7555832
$4,19 Unit Price incl. VAT
21
NUT; FLEXLOC B
7542456
9999999
Not Available
22
ARM STEERING
5241244067
Not Available
22
STEERING ARM
5220326067
Not Available
23
RIVET
7621433
$2,09 Unit Price incl. VAT
24
NUT; FLEXLOC
7542452
7542411
$6,29 Unit Price incl. VAT
25
SLIDE-SWAYBAR
5410384
9999999
Not Available
26
TUBE TRAILING ARM
5010187
9999999
Not Available
27
WASHER
7555721
$2,09 Unit Price incl. VAT
28
PIVOT-TRAILING ARM
5410382
9999999
Not Available
29
BOLT
7512557
9999999
Not Available
30
ARM TRLG LH. (Incl. 17 19)
1822262
Not Available
30
ARM TRLG RH
1822264
9999999
Not Available
30
ARM;TRLG;RH
1822338
9999999
Not Available
30
ARM;TRLG;LH
1822337
9999999
Not Available
31
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
32
BUSHING
7556509
$3,14 Unit Price incl. VAT
33
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
34
SPINDLE BLK.
6230073067
Not Available
35
STOP RUBBER
5521276
9999999
Not Available
36
SCREW
7515462
9999999
Not Available
37
SKAG PLATE; MEDIUM GLOSS BLACK
1011829067
Not Available
38
SKAG; BLK.
1820318067
Not Available
38
SKAG PR 3## CRABIDE E-Z STEER (Incl. 27 32 47)
2870976
Not Available
39
SKI WELD BLK
1820332067
Not Available
40
NUT; CASTLE
7542457
7542438
$3,14 Unit Price incl. VAT
41
PIN; COTTER
7661209
7661205
$1,56 Unit Price incl. VAT
42
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
43
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
44
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
45
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
46
ROD RAD UPPER
1822297067
Not Available
46
ROD RAD UPPER BLK. (Trail)
1822333067
Not Available
47
ROD;RAD;LOWER
1822292067
Not Available
47
ROD RAD LOWER
1822334067
Not Available
48
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
49
ROD END
7060162
7061052
$99,74 Unit Price incl. VAT
50
BRKT PANSUPPORT BLK.
5222866067
Not Available
51
WASHER
7555904
$1,56 Unit Price incl. VAT
52
RIVET
7621467
$2,09 Unit Price incl. VAT
53
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
54
MT LH SHOCK EXT.BLK.
1012052067
Not Available
54
MT RH SHOCK EXT.BLK.
1012053067
Not Available
55
PLATE SHOCK MT.EXT BLK.
5211449067
Not Available
56
NUT FLEXOC;
7542703
9999999
Not Available
57
NUT FLEXLOCK
7542503
9999999
Not Available
58
RIVET
7661637
$2,09 Unit Price incl. VAT
59
ROD END
7060163
9999999
Not Available
60
NUT JAM(10)
7542520
9999999
Not Available

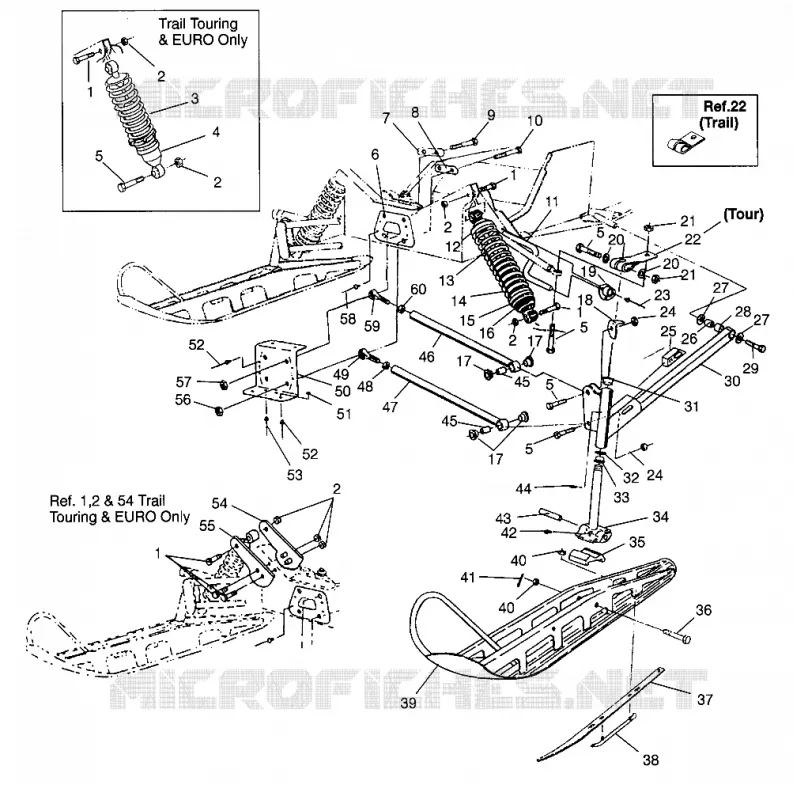

Find the detailed FRONT SUSPENSION AND SKI TRAIL 0962761, TRAIL TOURING 0962262, AND EUROPEAN (4931763176B001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
