HANDLEBAR HEADLIGHT POD (400L) XPRESS 400L W97CA38C (4939603960B011)
5

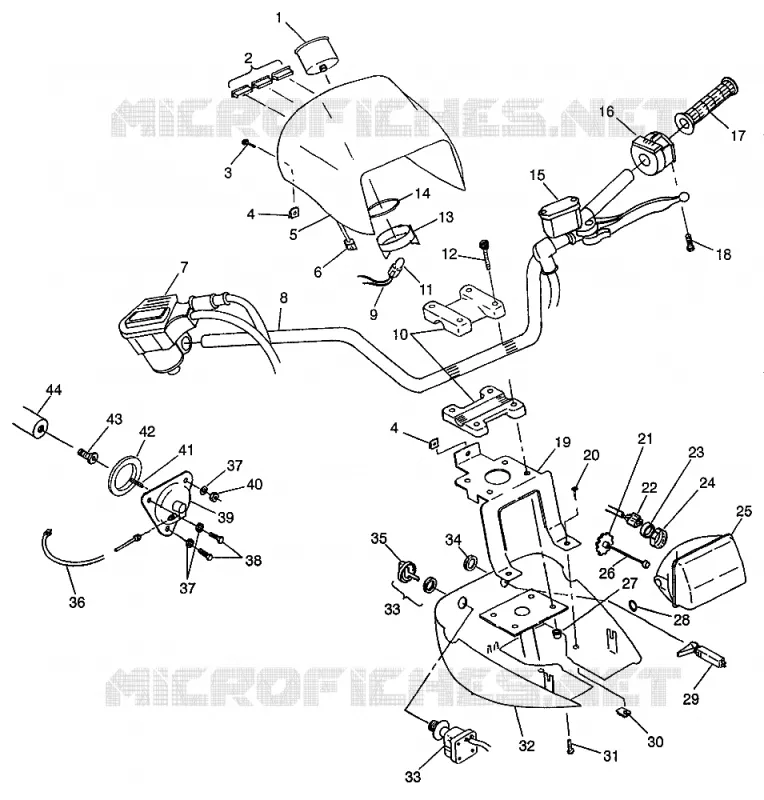

Parts Diagram
Parts Catalog
AIR BOX (300) XPRESS 300 W97CA28C (4939603960B005)
by
CONTROLS
HANDLEBAR HEADLIGHT POD (400L) XPRESS 400L W97CA38C (4939603960B011)
1
2
2
2
2
2
2
2
2
2
3
4
4
5
6
15
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
25
25
26
27
28
29
29
29
29
30
31
32
33
33
34
35
36
37
37
38
39
40
41
42
43
15
1
2
2
2
2
2
2
2
2
2
3
4
4
5
6
15
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
25
25
26
27
28
29
29
29
29
30
31
32
33
33
34
35
36
37
37
38
39
40
41
42
43
15
1
SPEEDO.ASM; 3"
3280172
9999999
Not Available
2
INDIC LOW OIL&HI-BEAM.
4040052
9999999
Not Available
2
INDIC NEUT./REV.
4040054
$62,99 Unit Price incl. VAT
2
HOT TEMPERATURE INDICATOR
4040053
$62,99 Unit Price incl. VAT
3
SCREW
7511881
$2,09 Unit Price incl. VAT
4
NUT (10)
7670086
9999999
Not Available
5
POD H/L UP BLU-GRN.
5431812215
Not Available
6
HARNESS WIRE UPR.INDIC(2X4)
2460556
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
TUBE H BAR BLK.
5224607067
Not Available
9
HARNESS SPEEDO
2460387
9999999
Not Available
10
BLOCK H BAR RETAINER BLK
5630616067
Not Available
11
BULB TAILLIGHT/TACH/SPEEDO (10)
4030015
$8,39 Unit Price incl. VAT
12
SCREW
7515188
9999999
Not Available
13
CLAMPBACKSPEEDO.
3280175
9999999
Not Available
14
GASKET SHOCK MT.
3280174
9999999
Not Available
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
HI/LO/OFF HANDLEBAR SWITCH; LEFT
4110193
9999999
Not Available
17
GRIP; HANDLEBAR
5431030
5433834-070
$52,49 Unit Price incl. VAT
18
SCREW
2010055
9999999
Not Available
19
BRKT POD MTG BLK.
5240586067
Not Available
20
SCREW
7517317
$6,29 Unit Price incl. VAT
21
ADJUSTING KNOB
4032079
$52,49 Unit Price incl. VAT
22
HARNESS WIRE LWR.INDIC(2X4)
2460555
Not Available
23
HEADLIGHT BOOT
5411120
$52,49 Unit Price incl. VAT
24
COLLAR LOCK
4032077
$52,49 Unit Price incl. VAT
25
ASM HEADLIGHT W/ADJUST ROD-KNO
4032075
9999999
Not Available
25
HEADLIGHT BULB
2870448
$36,74 Unit Price incl. VAT
26
ROD ADJUSTING
4032078
9999999
Not Available
27
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
28
O-RING
5410163
$3,14 Unit Price incl. VAT
29
CHOKE CONTROL CABLE
7080579
9999999
Not Available
29
CHOKE CONTROL KIT
2200188
$52,49 Unit Price incl. VAT
30
NUT U-TYPE
7670089
9999999
Not Available
31
SCREW(10)
7522021
9999999
Not Available
32
POD H/L LOW BLK.
5431811070
Not Available
33
IGNITION SWITCH
4110194
9999999
Not Available
34
NUT-CHOKE SLIDE
7080229
$36,74 Unit Price incl. VAT
35
COVER; KEY
5431964
5465307
$26,24 Unit Price incl. VAT
36
CABLE SPEEDO.
3280216
9999999
Not Available
37
WASHER
7555725
9999999
Not Available
38
BOLT
7515378
9999999
Not Available
39
ADAPTER DRIVE(1 1.0)
3280218
9999999
Not Available
40
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
41
KEY SPEEDO.DRIVE
3280217
9999999
Not Available
42
SEAL ANGLE DRIVE
3280164
9999999
Not Available
43
SPEEDO DRIVE BUSHING
5020741
9999999
Not Available
44
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

Find the detailed HANDLEBAR HEADLIGHT POD (400L) XPRESS 400L W97CA38C (4939603960B011) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
