ENGINE AND MUFFLER MOUNTING (4914781478005A) for POLARIS TRAIL BOSS 250

FRAME ASSEMBLY WITH RACKS (4914781478003A)

FRONT WHEEL ASSEMBLY (4914781478015A)

MOUNT MOTOR

3110026

9999999

Not Available

MOTOR MOUNT INSULATOR

5430802

9999999

Not Available

BOLT

7515321

9999999

Not Available

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

MOUNT ENG. TOP

5220471

9999999

Not Available

WASHER

7555801

$7,34 Unit Price incl. VAT

NUT LOCK

7542403

9999999

Not Available

BOLT

7512566

9999999

Not Available

WASHER LOCK

7575202

$9,44 Unit Price incl. VAT

WASHER

5210748

$7,34 Unit Price incl. VAT

BUSHING

5430261

$13,64 Unit Price incl. VAT

CLUTCH DRIVE

1321490

1321976

$1 081,49 Unit Price incl. VAT

SEAL ENG./CLUTCH

5410411

9999999

Not Available

NUT

3080285

9999999

Not Available

LOCK WASHER

3080530

9999999

Not Available

MANIFOLD WELD. [No Longer Available]

1260534

Not Available

ENG EC25-04 ELEC.START [No Longer Available]

1211455

Not Available

CABLE TIE

7080346

9999999

Not Available

CLUTCH INTAKE BOOT

5410421

9999999

Not Available

SCREW

7512490

$7,34 Unit Price incl. VAT

WASHER SPRINGLOCK

7553001

7552603

$1,56 Unit Price incl. VAT

PLATE;FR.MTR.MT.

5220881

9999999

Not Available

SPRING

7042029

$10,49 Unit Price incl. VAT

HEADPIPE WELD.

1260540

9999999

Not Available

SPRING; EXHAUST

7042031

7041687

$12,59 Unit Price incl. VAT

MUFFLER/ARRESTER WELD.

1260535

9999999

Not Available

SHIELD MUFFLER BLACK Substituted by 5220671-067

5222117

Not Available

ASM. BOLT&WASHER

3083729

9999999

Not Available

ASM. BOLT AND WASHER

3083730

9999999

Not Available

COLLAR

3083732

9999999

Not Available

MOUNTING RUBBER

3083731

9999999

Not Available

BOLT

7512666

$4,19 Unit Price incl. VAT

BOLT

7515316

$4,19 Unit Price incl. VAT

WASHER RUBBER

5410436

9999999

Not Available

MOUNT REAR

5220757

9999999

Not Available

MOUNT ENGINE

3110028

9999999

Not Available

FITTING; TEE

7052005

9999999

Not Available

VENT LINE;1/8;BULK

8360009

8360009-600

$83,99 Unit Price incl. VAT

SPARKPLUG RN4YC

3070167

9999999

Not Available

INSUL.CABLE SOL.

5410346

9999999

Not Available

CABLE GROUND/ENG.

4010067

9999999

Not Available

VIBRATION DAMPENER

5410467

9999999

Not Available

SUPPORT R.FENDER

5220902

9999999

Not Available

BRKT RH SUPPORT RACK

5220901

9999999

Not Available

DAMPENER

5410241

5412508

$9,44 Unit Price incl. VAT

BUSHING

5010192

$12,59 Unit Price incl. VAT

WASHER

7555716

$3,14 Unit Price incl. VAT

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

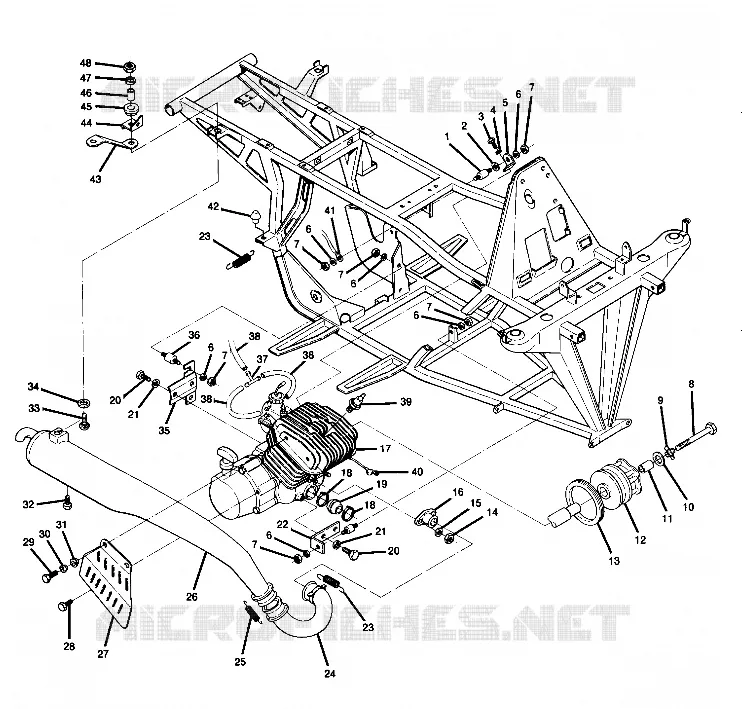

Find the detailed ENGINE AND MUFFLER MOUNTING (4914781478005A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
