1
Engine displacement
autre
2
Year
1996
3
Trim
XLT RMK - 0960956
4
Parts Catalog
REAR TORQUE ARM XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E9605 (4931813181C002)
5
Parts Diagram
Parts Catalog
MASTER CYLINDER XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960 (4931813181B009)
by
DRIVE CLUTCH XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C003)
REAR TORQUE ARM XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E9605 (4931813181C002)
1
BOLT NYLOC BLACK
7515493
9999999
Not Available
2
SHAFT R.TORQUE UPPER
5020845
9999999
Not Available
3
ARMR.TORQUEBLK
1541024067
Not Available
4
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
5
SHAFT LOW RR TORQUE
5020843
9999999
Not Available
6
EYE BOLT
7010050
9999999
Not Available
7
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
8
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
9
LOCK;BOLT;MECHANICAL
5211649
9999999
Not Available
10
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
11
ROLLER SPRING ADJUSTED
5431168
9999999
Not Available
12
PUSH ON CLIP
7080394
$4,19 Unit Price incl. VAT
13
COLLAR-BRG. LOCK
5010155
9999999
Not Available
14
SCREW-SOCKETSET
7512257
$7,34 Unit Price incl. VAT
15
WASHER; THRUST
7555862
9999999
Not Available
16
CARRIER WHEEL
1543023
9999999
Not Available
17
TORISON SPRING; RIGHT; .421 DIA
7041462067
Not Available
17
SPRING LH TORS(.406DIA)
7041463067
Not Available
17
SPRING RH TORS(.406DIA)
7041464067
Not Available
17
SPRING LH TORS(.421DIA)
7041461067
Not Available
18
WASHER THRUST
7555787
9999999
Not Available
19
TORSION SPRING SLEEVE
5431923
9999999
Not Available
20
BOLT
7515307
$7,34 Unit Price incl. VAT
21
WASHER
7555716
$3,14 Unit Price incl. VAT
22
STRAP LIMITER
5411061
9999999
Not Available
23
PIVOT TUBE BUSHING
5020561
9999999
Not Available
24
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
25
WAVE SPRING WASHER
7555795
$2,09 Unit Price incl. VAT
26
SPACER
5333420
9999999
Not Available
27
ROD SHOCK (XTRA 10)133
1541021067
Not Available
28
BOLT
7515472
$4,19 Unit Price incl. VAT
29
NUT FLEX-LOC
7542303
9999999
Not Available
30
BUSHING
5430537
$7,34 Unit Price incl. VAT
31
BUSHING R.SHOCK
5333030
9999999
Not Available
32
BOLT
7512329
$7,34 Unit Price incl. VAT
33
SHOCK GAS R.TRACK
7041438
9999999
Not Available

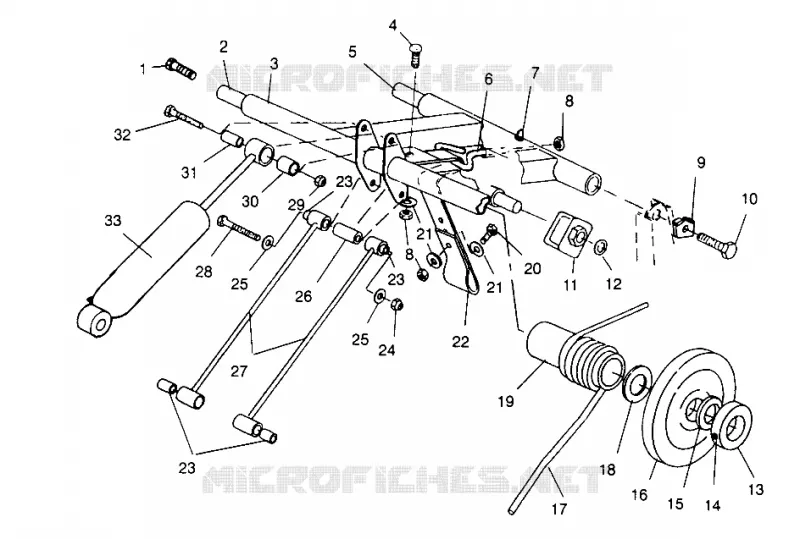

Find the detailed REAR TORQUE ARM XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E9605 (4931813181C002) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
