1
Engine displacement
autre
2
Year
1993
3
Trim
LITE DELUXE - 0933431
4
Parts Catalog
DRIVE CLUTCH ASSEMBLY LITE/0933433,STARLITE/0933427 AND LITE DELUXE/093343 (4922972297019A)
5
Parts Diagram
Parts Catalog
REAR TORQUE ARM LITE/0933433,STARLITE/0933427 AND LITE DELUXE/093 (4922972297018A)
by
DRIVEN CLUTCH ASSEMBLY LITE/0933433,STARLITE/0933427 AND LITE DELUXE/09334 (4922972297020A)
DRIVE CLUTCH ASSEMBLY LITE/0933433,STARLITE/0933427 AND LITE DELUXE/093343 (4922972297019A)
1
CLUTCH DRIVE #27
1321538
9999999
Not Available
2
BOLT
7512265
9999999
Not Available
3
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
4
BEARING COVER
3576510
$16,79 Unit Price incl. VAT
5
SPRING-(ORANGE)
7041060
9999999
Not Available
5
SPRING CLUTCH SIL/GOLD
7041286
9999999
Not Available
6
ROLLER PIN
5020422
$4,19 Unit Price incl. VAT
7
BUTTON
5430728
5430445
$11,54 Unit Price incl. VAT
8
WASHER(10)
5430945
5438247
$3,14 Unit Price incl. VAT
9
ROLLER/BUSHING ASSEMBLY
1321457
$73,49 Unit Price incl. VAT
10
SPACER .020
5210752
$3,14 Unit Price incl. VAT
10
SPACER .050
5210754
$6,29 Unit Price incl. VAT
10
SPACER .032
5210753
$4,19 Unit Price incl. VAT
11
BUSHING MOVEABLE 1/2 INCH
3576504
$41,99 Unit Price incl. VAT
12
WEIGHT; .010(6)
5630272
9999999
Not Available
12
WEIGHT #10M RED(6)
5630325
9999999
Not Available
13
SHOULDER BOLT
7512266
$5,76 Unit Price incl. VAT
14
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
15
GEAR RING (Twin ES)
3083075
Not Available
16
BOLT
7515351
$7,34 Unit Price incl. VAT

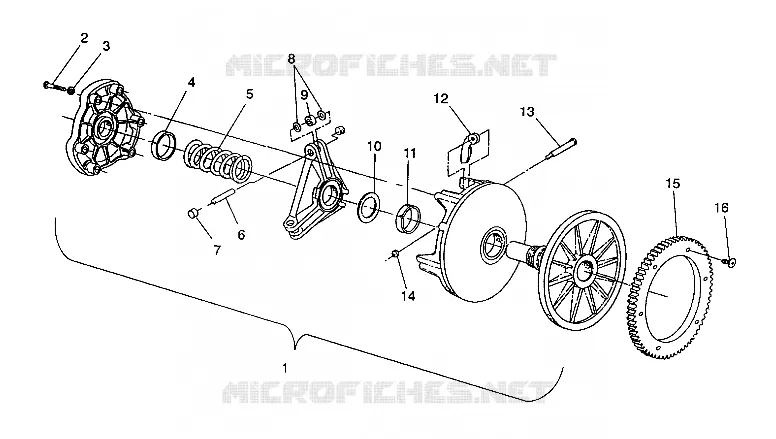

Find the detailed DRIVE CLUTCH ASSEMBLY LITE/0933433,STARLITE/0933427 AND LITE DELUXE/093343 (4922972297019A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
