1
Engine displacement
750
2
Year
2014
3
Trim
750 IQ TURBO LXT
4
Parts Catalog
DRIVE TRAIN, GEARCASE ASM.
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, CLUTCH, SECONDARY
by
DRIVE TRAIN, GEARCASE COVER ASM. AND DIPSTICK
DRIVE TRAIN, GEARCASE ASM.
1
1
2
3
4
5
6
7
8
9
9
9
10
11
12
13
14
14
15
16
16
17
18
19
20
21
22
23
24
25
25
25
25
26
27
28
1
OIL SEAL; 45 MM; 1.772 X 2.441 X .275
3610108
9999999
Not Available
2
ASM-CASE SVC
1332612
9999999
Not Available
3
SHAFT-PINION
5136412
9999999
Not Available
4
VENT TUBE; .155 X .75; DIA
5334764
$62,99 Unit Price incl. VAT
5
CHAIN TIGHTENER ASSEMBLY
1332427
$135,44 Unit Price incl. VAT
6
WASHER-THREAD SEAL;3/8-16-UNC
7556340
$6,29 Unit Price incl. VAT
7
SCREW(10)
7515511
$7,34 Unit Price incl. VAT
8
NUT-3/8-16 HX FLG GRF ZY
7547304
9999999
Not Available
9
OIL SEAL; 1.00 X 1.250 X .125
3610110
9999999
Not Available
9
HUB CARRIER ASSEMBLY; UPPER
1332485
9999999
Not Available
9
BEARING
3514471
9999999
Not Available
10
SPACER-UPPER SPROCKET
5134518
9999999
Not Available
11
RING-RTNG INT 3000X268
7710552
9999999
Not Available
12
SPROCKET-24T 3/4W 24SPL PM
3222128
9999999
Not Available
13
SHIFT FORK ASSEMBLY
1332315
9999999
Not Available
14
RING-RTNG 7200-150
7710555
9999999
Not Available
15
PINION-FRWRD/REVRS ENGAGMENT
5135601
9999999
Not Available
16
WASHER-.623X1.300X.066 THR-Y
7556354
9999999
Not Available
17
GEAR-SPUR 31T17T SPL CS
5135059
9999999
Not Available
18
ASM-18T SPKT/18T SPLN;REV;W/BU
1332385
9999999
Not Available
19
POSITON HUB INDICATOR
5435503
9999999
Not Available
20
SHAFT-SHIFT
5134327
9999999
Not Available
21
SCREW(10)
7512018
$6,29 Unit Price incl. VAT
22
REVERSE BACKING PLATE; STEEL
5250017
9999999
Not Available
23
PLUG
7052115
$10,49 Unit Price incl. VAT
24
CHAIN-HYVO 23-149;.375X.75X80P
3222134
$167,99 Unit Price incl. VAT
25
HUB CARRIER ASSEMBLY; LOWER
1332306
9999999
Not Available
25
RING-RTNG EXT 7200-175
7710553
9999999
Not Available
25
BALL BEARING 45 X 75 X 16 MM
3514496
9999999
Not Available
25
O-RING 1.23 X .443 X .103
5412229
9999999
Not Available
26
RING-RTNG INT 3000X300
7710554
9999999
Not Available
27
SPROCKET-44T PM
3221186
9999999
Not Available
28
RING-RETAINING EXT 7200-200
7710558
9999999
Not Available

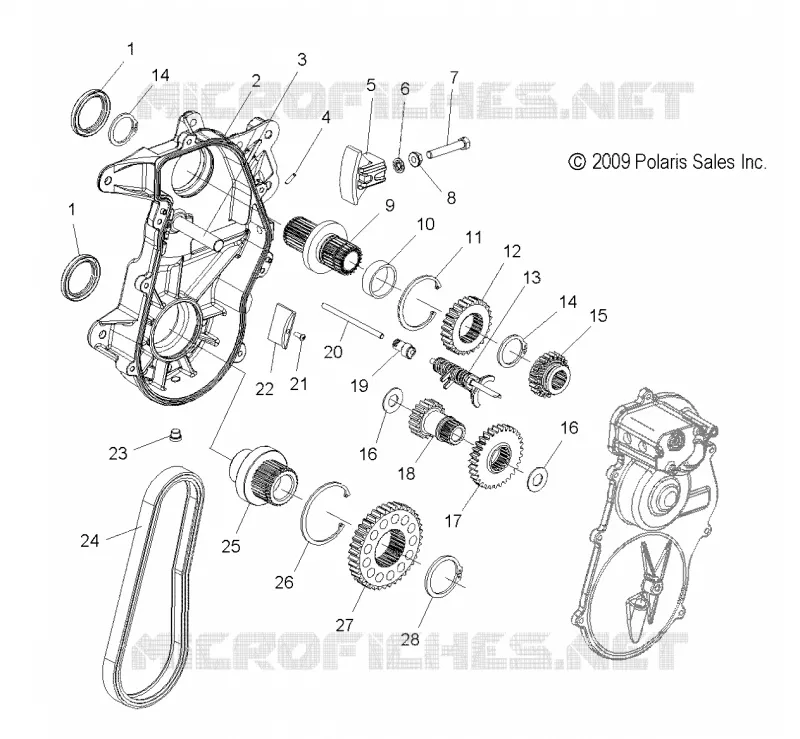

Find the detailed DRIVE TRAIN, GEARCASE ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
