FUEL TANK ASM. for POLARIS SPORTSMAN 570 EPS ZUG/LOF from 2019

FUEL TANK ASM.

1

ASM-FUEL LINE;HARD

2521802

$115,49 Unit Price incl. VAT

2

BRKT-SEAT BASE;CAB MNT;PP;LH

5452276

$10,49 Unit Price incl. VAT

3

BRKT-SEAT BASE;CAB MNT;PP;RH

5452277

$10,49 Unit Price incl. VAT

4

GAS TANK CAP

5439075

$47,24 Unit Price incl. VAT

5

FUEL TANK ASSEMBLY; 570 EFI

2522071

2522719

$1 700,99 Unit Price incl. VAT

5

FUEL PUMP;SERVICE KIT;ATV;1UP

2207671

2211917

$671,99 Unit Price incl. VAT

6

FLAT WASHER

7555960

$7,34 Unit Price incl. VAT

7

SCREW

7515179

$4,19 Unit Price incl. VAT

8

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

9

FOAM-COVER

5813265

9999999

Not Available

10

FITTING-VENT LINE;90

5453464

$10,49 Unit Price incl. VAT

11

FUEL LINE-54 CENTIMETRS

845004054

Not Available

12

FOAM-SEAL 1.5 X 12

5813255

9999999

Not Available

13

SEAL-FOAM FUEL FILL NECK

5814816

9999999

Not Available

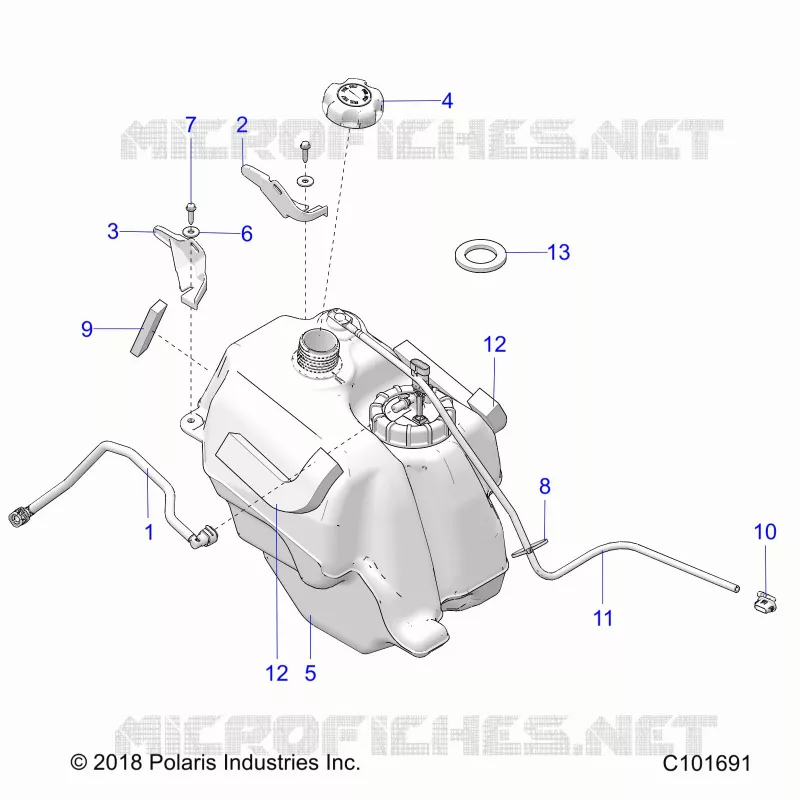

Find the detailed FUEL TANK ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
