Engine displacement
600
2
Year
2003
3
Trim
600 / 700 / 800 PRO X
4
Parts Catalog
SUSPENSION
5
Parts Diagram
Parts Catalog
RAIL MOUNTING (SUSPENSION)
by
SHOCK (IFS)(RYDE FX)
SUSPENSION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
1
1
2
2
2
2
2
2
3
3
3
4
5
5
5
5
5
5
6
7
8
9
10
10
11
12
12
13
13
14
14
15
16
16
17
18
19
19
20
20
21
22
23
23
24
25
26
27
28
29
29
30
31
1
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
2
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
3
SPACER; IDLER
5432535
$20,99 Unit Price incl. VAT
4
BUSHING
7555918
$3,14 Unit Price incl. VAT
5
PLAIN WHEEL ASSEMBLY
1594087
9999999
Not Available
5
BEARING
3514012
3515142
$34,64 Unit Price incl. VAT
5
RETAINING RING
7710444
$15,74 Unit Price incl. VAT
6
IDLER SHAFT; .784 X 13.22
5132066
9999999
Not Available
7
IDLER SPACER; LONG
5333285
$20,99 Unit Price incl. VAT
8
WASHER .406 X 1.25 X .125
7556130
$11,54 Unit Price incl. VAT
9
BOLT 3/8-16X1.25(10)
7517731
$2,09 Unit Price incl. VAT
10
SCR-3/8-24X9.875 HX/LP GR8-Y
7517921
$41,99 Unit Price incl. VAT
11
BOLT
7515328
7515339
$9,44 Unit Price incl. VAT
12
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
13
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
14
SCREW
7517247
9999999
Not Available
15
PALNUT
7547030
$9,44 Unit Price incl. VAT
16
TRACK 121"X1" SHOCKWAVE SNOW X
5411994
5413198
$925,04 Unit Price incl. VAT
16
CLIP GUIDE(10)
5222840
5251274
$13,64 Unit Price incl. VAT
17
PIVOT ARM SHAFT
5020723
$47,24 Unit Price incl. VAT
18
TUBE-CROSS SHAFT;5/16X9.75;BLK
5334197067
Not Available
19
WHEEL ASSEMBLY
1590368
$141,74 Unit Price incl. VAT
20
BUSHING
7556301
$6,29 Unit Price incl. VAT
21
SHAFT-.750X.390X8.665 AL
5133232
9999999
Not Available
22
SCREW
7515417
9999999
Not Available
23
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
24
BUSHING .378 X .616 X 1.720
5133233
$20,99 Unit Price incl. VAT
25
WELD-SHOCK PIVOT ARM3.50BLK
1541638067
Not Available
26
SHOCK MOUNT WELD; MEDIUM GLOSS BLACK
1541711067
Not Available
27
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
28
CLAMP-RESERVOIR
5132968
9999999
Not Available
29
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
30
SHAFT-.740X.390X8.490 ANODIZE
5334026
9999999
Not Available
31
PIVOT ARM WELD; REAR; 4.25; GS BLK
1541713067
Not Available

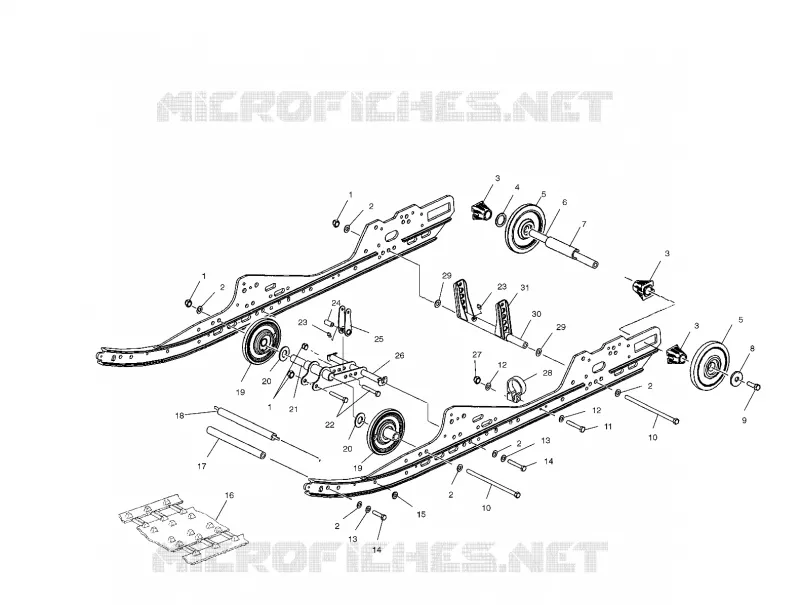

Find the detailed SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
