1
Engine displacement
300
2
Year
1997
3
Trim
XPRESS 300 - W97CA28C
4
Parts Catalog

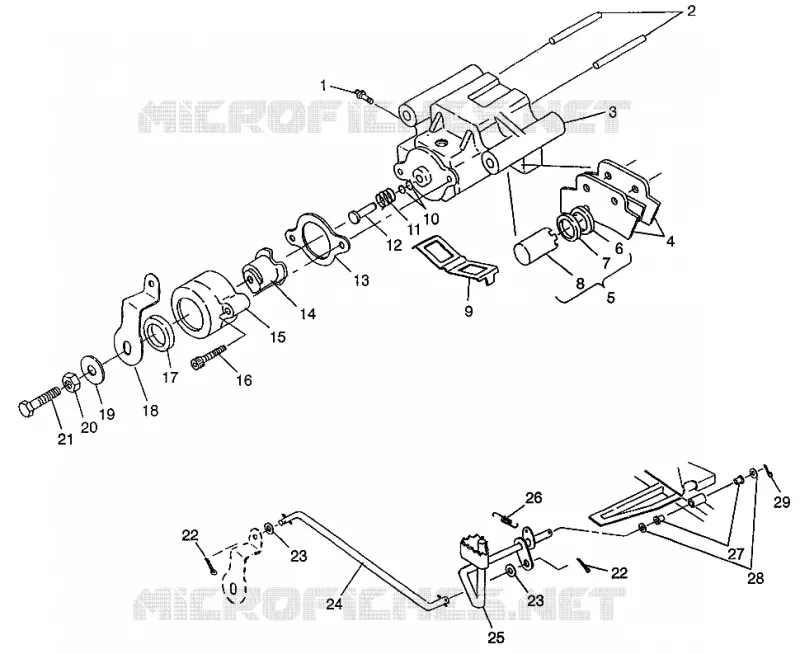

REAR BRAKE XPRESS 300 W97CA28C AND XPRESS 400L W97CA38C (4939603960C010)
5
Parts Diagram
Parts Catalog
GEARCASE/BRAKE AND CHAIN COVER MOUNTING XPRESS 300 W97CA28C AND XPRESS 400 (4939603960C009)
by
GEARCASE XPRESS 300 W97CA28C AND XPRESS 400L W97CA38C (4939603960D001)
REAR BRAKE XPRESS 300 W97CA28C AND XPRESS 400L W97CA38C (4939603960C010)
1
2
3
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
25
26
27
28
29
1
2
3
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
25
26
27
28
29
1
BLEEDER SCREW
7080352
$5,76 Unit Price incl. VAT
2
PIN DOWEL
7661820
9999999
Not Available
3
CALIPER R.BRAKE MACH
5131272
9990005
Not Available
4
REAR SEVERE DUTY BRAKE PAD KIT
2200899
9999999
Not Available
4
BRAKEPAD KIT; REAR
2200464
$56,16 Unit Price incl. VAT
5
PISTON SEAL KIT
2200463
$167,99 Unit Price incl. VAT
6
RING MOLDED
5410766
$20,99 Unit Price incl. VAT
7
RING; SQUARE;(1DIAM.)
5410767
2200463
$167,99 Unit Price incl. VAT
8
SUBSTITUTED BY 2200463
5020667
$167,99 Unit Price incl. VAT
9
SPRINGANTI-RATTLE
5240993
9999999
Not Available
10
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
11
SPRING BRAKE COMP.
7041219
9999999
Not Available
12
PIN BRAKE CALIPER
5020666
9999999
Not Available
13
BRAKE GASKET
5830009
9999999
Not Available
14
RAMP MOVE.BRAKE(D/C)
5630651
9999999
Not Available
15
RAMP STAT.BRAKE(D/C)
5630652
9999999
Not Available
16
SCREW
7512173
9999999
Not Available
17
BRAKE SEAL
3610026
9999999
Not Available
18
ARM BRAKE CALIPER
5211692
9999999
Not Available
19
WASHER; SPRING
7555828
9999999
Not Available
20
NUT
7542129
9999999
Not Available
21
BOLT
7515145
9999999
Not Available
22
PIN-COTTER(10)
7661205
$1,56 Unit Price incl. VAT
23
WASHER
7555827
$7,34 Unit Price incl. VAT
24
ROD BRAKE
5241621
9999999
Not Available
25
BRAKE FOOT BLK
1040514067
Not Available
26
SPRING
7042029
$10,49 Unit Price incl. VAT
27
PEDAL PIVOT BUSHING
5431107
$16,79 Unit Price incl. VAT
28
WASHER
7555919
$7,34 Unit Price incl. VAT
29
COTTER PIN
7661401
$1,56 Unit Price incl. VAT

Find the detailed REAR BRAKE XPRESS 300 W97CA28C AND XPRESS 400L W97CA38C (4939603960C010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
