TUNNEL ASSEMBLY 500 SPX (4922552255001A)
1
2
3
4
5
6
7
7
7
7
7
7
7
8
8
8
8
9
10
11
12
12
12
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
27
28
29
30
31
31
31
31
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
1
BOLT
7512240
9999999
Not Available
2
BRACE TUNNEL REINF.
5222412
Not Available
3
RIVET(10)
7621222
9999999
Not Available
4
WEARPLATE TUNNEL (400 & 650)
5222061
Not Available
5
TUNNEL ASM STRT.LIQ.BLK.
1011920
Not Available
6
RIVET (10)
7661825
9999999
Not Available
7
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
8
DECAL LH TUNNEL STRIPE [No Longer Available] (SP)
7073344
Not Available
8
DECAL RH TUNNEL STRIPE [No Longer Available] (SP)
7073345
Not Available
9
PLUG HOLE
7080398
$10,49 Unit Price incl. VAT
10
BUMPER; REAR
5224334
9999999
Not Available
11
DECAL TRACK SEAT(BLK.) [No Longer Available]
7073038
Not Available
12
FOOTREST ASM RH
1011862
Not Available
12
FOOTREST ASM LH
1011861
Not Available
13
SNOWFLAP; SILVER
5410689092
Not Available
14
RIVET
7621418
$2,09 Unit Price incl. VAT
15
CAP BUMPER
5430930
9999999
Not Available
16
DECAL R.BUMPER#500S/P# [No Longer Available] (SP)
7073342
Not Available
17
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
18
SCREW
7511863
9999999
Not Available
19
BRKT R.FUEL TANK BLK.
5222375067
Not Available
20
BULKHEAD (500 SPX) Substituted by 1011851-067
1011851
Not Available
21
BOLT
7512103
$6,29 Unit Price incl. VAT
22
SNAP-MALE
7080227
9999999
Not Available
23
RIVET(10)
7621301
9999999
Not Available
24
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
25
BRKT GASTANK WELD.
1011733067
Not Available
26
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
27
SUPPORTMUFFLERBLK.
1011831067
Not Available
28
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
29
PANEL TUNNEL BACK Substituted by 5220478-067
5220478
Not Available
30
BRKT F.SUSP. BLK.
5211323067
Not Available
31
BRKT RH R.SUSP.
1011858067
Not Available
31
BRKT LH R.SUSP
1011857067
Not Available

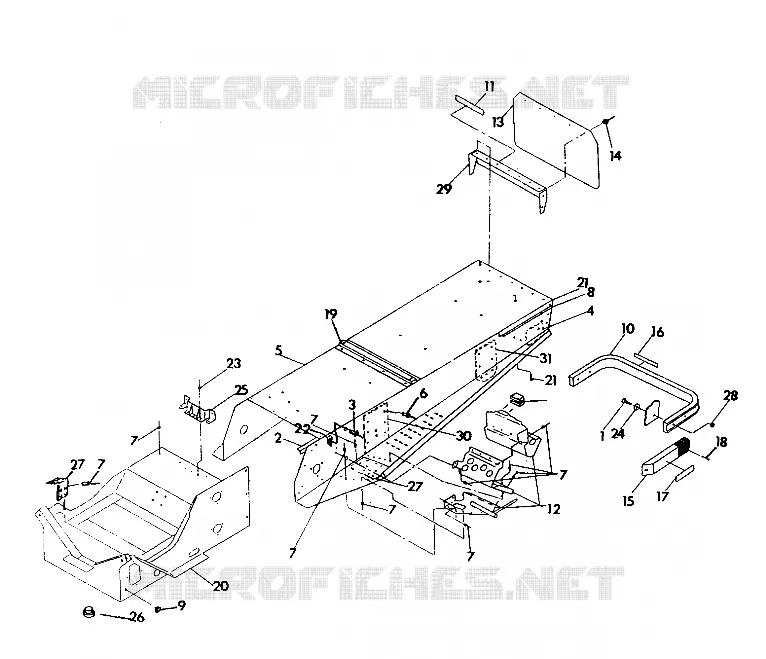

Find the detailed TUNNEL ASSEMBLY 500 SPX (4922552255001A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
