1
Engine displacement
550
2
Year
2003
3
Trim
550 SUPERSPORT EDGE
4
Parts Catalog
CHASSIS
5
Parts Diagram
Parts Catalog
TOOL KIT
by
SEAT GAS TANK
CHASSIS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
-
-
-
-
1
2
3
4
5
6
7
7
8
8
9
9
10
11
11
12
13
14
15
16
16
17
17
18
18
19
20
21
21
22
22
22
22
22
22
23
24
24
25
26
26
27
27
28
28
29
29
30
31
32
33
34
35
-
-
-
-
1
2
3
4
5
6
7
7
8
8
9
9
10
11
11
12
13
14
15
16
16
17
17
18
18
19
20
21
21
22
22
22
22
22
22
23
24
24
25
26
26
27
27
28
28
29
29
30
31
32
33
34
35
-
-
-
-
1
2
3
4
5
6
7
7
8
8
9
9
10
11
11
12
13
14
15
16
16
17
17
18
18
19
20
21
21
22
22
22
22
22
22
23
24
24
25
26
26
27
27
28
28
29
29
30
31
32
33
34
35
-
-
-
-
1
2
3
4
5
6
7
7
8
8
9
9
10
11
11
12
13
14
15
16
16
17
17
18
18
19
20
21
21
22
22
22
22
22
22
23
24
24
25
26
26
27
27
28
28
29
29
30
31
32
33
34
35
-
Asm. Chassis Natural (M-10)
10138201124
Not Available
-
Asm. Chassis Edge Natural
1013817309
Not Available
-
Asm. Chassis M-10 Natural/Yellow (X)
10138751124
Not Available
-
Asm. Chassis Edge X Natural/Yellow
10138741124
Not Available
1
SCREW
7517632
$10,49 Unit Price incl. VAT
2
SCR-3/8-16X1-P30-SPEC-Y
7517854
$10,49 Unit Price incl. VAT
3
WELD-TORQUE STOP
1013399
9999999
Not Available
4
NUT
7542404
$3,14 Unit Price incl. VAT
5
STOP TORQUE COURSE 3/8-16
3021104
$36,74 Unit Price incl. VAT
6
OIL TANK AND HOSE SUPPORT BRACKET
5246330
9999999
Not Available
7
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
8
CAPLUG-1 5/8
7080934
9999999
Not Available
9
PAD-SUSP FRONT BLK RH
5245001067
Not Available
9
PAD-SUSP FRONT BLK LH
5244999067
Not Available
10
BRKT-AIRBOX
5246177
9999999
Not Available
11
BRACE-LOWER TUNNEL BLK LH
5244997067
Not Available
11
BRACE-LOWER TUNNEL BLK RH
5244998067
Not Available
12
CAPLUG 3/4
7080592
9999999
Not Available
13
BOLT
7512240
9999999
Not Available
14
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
15
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
16
ASM-REAR BUMPER;SCR YLW
2632165216
Not Available
16
BUMPER ASSEMBLY; REAR
2632165309
Not Available
17
RIVET
7621472
$2,09 Unit Price incl. VAT
18
SNOW FLAP; SHORT
54339611038
Not Available
18
FLAP-SNOW EDGE X
5433979
9999999
Not Available
19
SCREW .75
7517441
$4,19 Unit Price incl. VAT
20
REFLECTOR ASSEMBLY; RED
2670133
9999999
Not Available
21
ASM-SNOWSKIRT/REFLECTOR BLK LH
2632443070
Not Available
21
ASM-SNOWSKIRT/REFLECTOR BLK RH
2632444070
Not Available
22
RIVET
7661637
$2,09 Unit Price incl. VAT
23
BRACE-TUNNEL ROLL
5245118
9999999
Not Available
24
GRIP-TUNNEL EDGE RH
5132904
9999999
Not Available
24
GRIP-TUNNEL ROLL EDGE LH
5132903
9999999
Not Available
25
STRAP
5433150
$47,24 Unit Price incl. VAT
26
FOOTREST SUPPORT LEFT
5246310
9999999
Not Available
26
SUPPORT-FOOTREST RH
5246311
9999999
Not Available
27
TOE CLIP CONSOLE MOUNT; LEFT
5245457
9999999
Not Available
27
CONSOLE MOUNT; TOE CLIP; RIGHT
5245458
9999999
Not Available
28
FOOTREST RH
5242740
9999999
Not Available
28
FOOTREST; LEFT
5245288
9999999
Not Available
29
MOUNT KIT; TRAILING ARM; LEFT
2202059
9999999
Not Available
29
KIT-MOUNT TRAILING ARM RH
2202060
9999999
Not Available
30
BARBED PLUG; .625
7081085
$13,64 Unit Price incl. VAT
31
GUARD-BELT EDGE W/BEND
5245836
9999999
Not Available
32
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
33
RIVET INTERLOCK(50)
7661639
7661130
$2,09 Unit Price incl. VAT
34
PLUG-HOLE 1.25
7081076
9999999
Not Available
35
BULKHEAD-FRONT MACH
5132292
9999999
Not Available

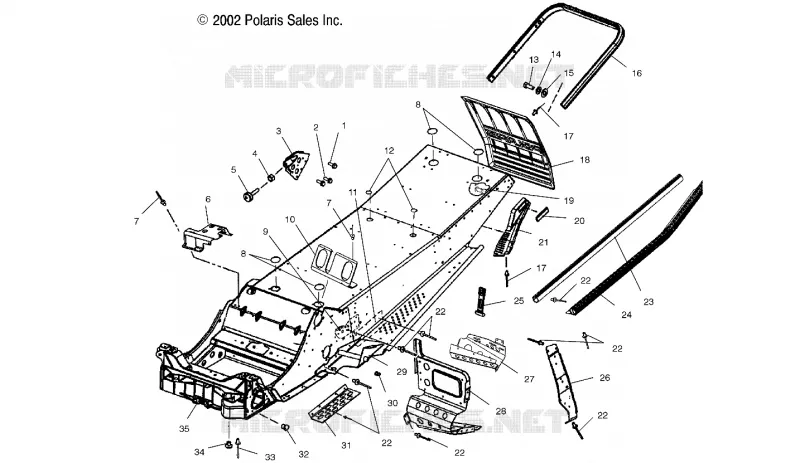

Find the detailed CHASSIS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
