1
Engine displacement
570
2
Year
2015
3
Trim
SPORTSMAN 570 EFI X2 EPS EU
4
Parts Catalog
FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
HEADLIGHT POD
by
REAR BRAKE CALIPERS
FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER
-
1
1
1
2
2
2
2
3
3
4
5
6
7
8
1
2
3
3
4
4
5
5
6
7
-
MASTER CYLINDER ASSEMBLY
2203051
2010440
$325,49 Unit Price incl. VAT
1
PISTON KIT
2203052
2206551
$262,49 Unit Price incl. VAT
2
LEVER AND PARK LEVEL KIT
2203053
$173,24 Unit Price incl. VAT
3
PARK LEVER KIT
2203054
$68,24 Unit Price incl. VAT
4
MASTER CYLINDER COVER
2203055
$141,74 Unit Price incl. VAT
5
KIT-M/C COVER SCREWS;HB
2203056
$52,49 Unit Price incl. VAT
6
KIT-CLAMP HB 11/16 98-19608
2203093
$94,49 Unit Price incl. VAT
7
KIT-SCREWS CLAMP HB
2203058
$68,24 Unit Price incl. VAT
8
KIT-PIVOT PIN;HB
2203059
$73,49 Unit Price incl. VAT

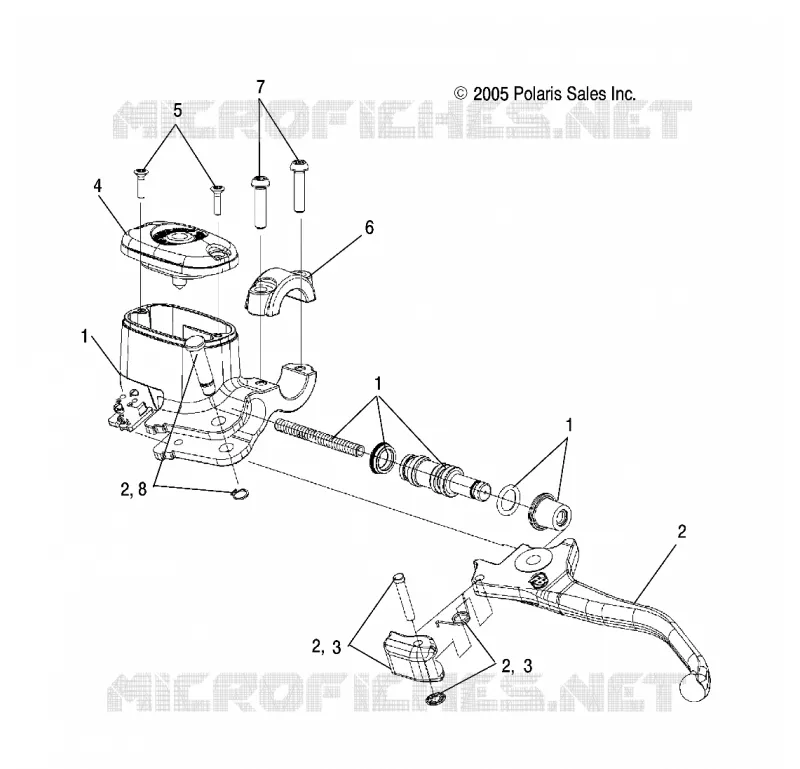

Find the detailed FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
