TUNNEL 500 CARB 0962764, 500 CARB SKS 0962564, EUROPEAN 500 CARB SKS E96256 (4931873187A005)
1
BUMPER HOOD
5410768
9999999
Not Available
2
MT CONSOLE RH
1011952067
Not Available
3
SCREW
7512057
9999999
Not Available
4
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
5
RECOIL GUIDE
5431385
$19,94 Unit Price incl. VAT
6
RIVET
7661637
$2,09 Unit Price incl. VAT
7
RIVET SEMI-TUBE (50)
7661841
9999999
Not Available
8
TUNNEL LQ.X10 EV BLK.
1012361067
Not Available
8
TUNNEL LIQ. Substituted by 1012378-067 (500)
1012378
Not Available
9
PANEL ASM TUNNELBACK
1012360067
Not Available
9
PANEL TUNNELBACK
5241053067
Not Available
10
FLAP;SNOW;(XTRA-10)
5432149
9999999
Not Available
11
RIVNUT
7542130
9999999
Not Available
12
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
13
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
14
BOLT
7512240
9999999
Not Available
15
BUMPER REAR STD.
5224674067
Not Available
15
BUMPER ASM REAR (TOUR)
2670171
Not Available
15
BUMPER REAR
2670170
9999999
Not Available
16
BOLT
7515363
7512325
$4,19 Unit Price incl. VAT
17
SCREW
7510504
$10,49 Unit Price incl. VAT
18
GRIP; HAND
5431015
9999999
Not Available
19
COVERBACKREST ASM.
2681790
9999999
Not Available
20
BACKREST ASM.
2681789
9999999
Not Available
21
KNOB ASMBACKREST
2670130
9999999
Not Available
22
SCREW
7515352
9999999
Not Available
23
KNOB; BACKREST
5630386067
Not Available
24
SPACER
5431285
9999999
Not Available
25
BAR GRAB LH BLK.
1011729067
Not Available
25
BAR GRAB RH BLK.
1011730067
Not Available
26
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
27
WASHER FLAT
7555783
$7,34 Unit Price incl. VAT
28
NUT; LOCK
7541929
7541925
$1,56 Unit Price incl. VAT
29
NUT NYLOK
7542327
9999999
Not Available
30
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
31
RIVET
7621418
$2,09 Unit Price incl. VAT
32
SCREW
7512026
$2,09 Unit Price incl. VAT
33
SKIRT SNOW LH
5432049070
Not Available
33
SKIRT SNOW RH
5432050070
Not Available
34
RIVET SEMI-TUBE (10)
7661840
9999999
Not Available
35
PAD LH R.SUSP.
5241268067
Not Available
35
PAD RH R.SUSP.
5241269067
Not Available
36
MT CONSOLE LH
1011951067
Not Available
37
SUPPORT BUMPERSIDE BLK.
5240294067
Not Available
38
STOP BUMPER
5410826
Not Available
39
DESC NOT_AVAILABLE
7552301
Not Available
40
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
41
SCREW
7511863
9999999
Not Available
42
CAP BUMPER BLK.
5430930070
Not Available
43
FOOTREST ASM LH BLK. Substituted by 1012544
1011934
Not Available
43
FOOTREST ASM RH BLK. Substituted by 1012545
1011935
Not Available
44
RIVET(10)
7621222
9999999
Not Available
45
NUT SERT
7541938
9999999
Not Available
46
BRKT RH R.SUSP
1012410067
Not Available
46
PAD RH FR.SUSP.MTG.
5241304067
Not Available
46
PAD LH FR.SUSP.MTG.
5241303067
Not Available
46
BRKT LH R.SUSP
1012409067
Not Available
47
DECAL TOP TUNNEL STRIP
7073978
Not Available
48
SNAP-MALE
7080227
9999999
Not Available
49
BRACE REINF.TUNNEL
5240242
Not Available
50
GUARD ADAPTER GUIDE
5222857
9999999
Not Available
51
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
52
PLUG HOLE
7080398
$10,49 Unit Price incl. VAT
53
BULKHEAD; (500)
1012336067
Not Available
53
BULKHEAD
1012428067
Not Available
54
ROPE GUIDE BRACKET; MEDIUM GLOSS BLACK
5222687067
Not Available

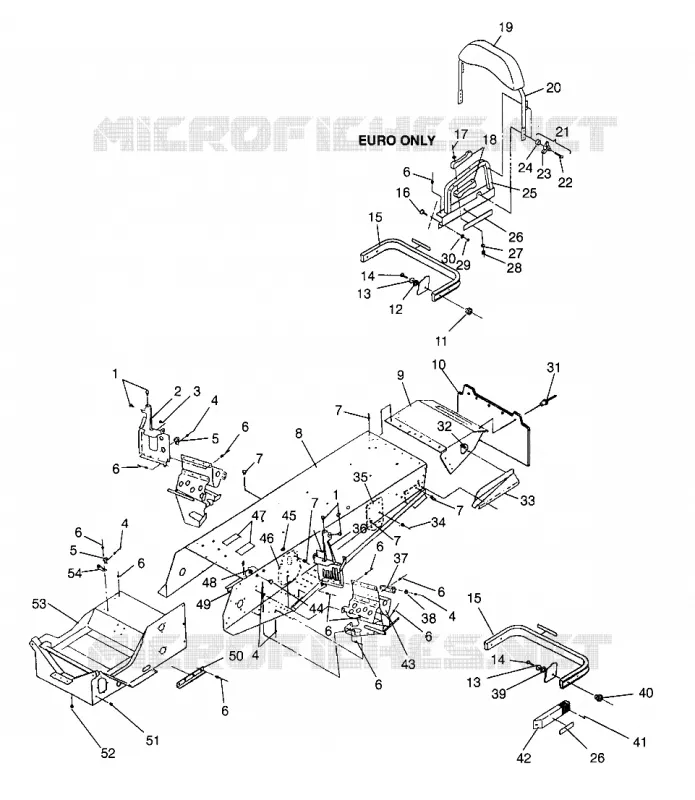

Find the detailed TUNNEL 500 CARB 0962764, 500 CARB SKS 0962564, EUROPEAN 500 CARB SKS E96256 (4931873187A005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

RMK 500 1996
