1
Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN TOURING 500 EFI QUAD - A09DN50EA
4
Parts Catalog
TURN SIGNALS, HORN and MIRRORS
5
Parts Diagram
Parts Catalog
GAUGES INDICATORS
by
ENGINE, AIR INJECTION SYSTEM
TURN SIGNALS, HORN and MIRRORS
1
2
3
4
5
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
1
HANDLEBAR MIRROR ASSEMBLY; LEFT
2633314
$80,84 Unit Price incl. VAT
2
HANDLEBAR MIRROR ASSEMBLY; RIGHT
2633315
$80,84 Unit Price incl. VAT
3
HEX NUT; NYLOK
7546804
$2,09 Unit Price incl. VAT
4
TURN SIGNAL; FRONT; RIGHT; BLACK
2410722
9999999
Not Available
5
SCREW
7517561
$3,14 Unit Price incl. VAT
6
BRKT-TURN SIGNAL MNTRHBLK
5250013067
Not Available
7
NUT-M12-1.25 HXFL ZINC CLEAR
7547345
$12,59 Unit Price incl. VAT
8
BRKT-TURN SIGNAL MNTLHBLK
5250012067
Not Available
9
TURN SIGNAL; FRONT; LEFT; BLACK
2410721
9999999
Not Available
10
HORN-DISC
4011579
4082229
$87,14 Unit Price incl. VAT
11
SCREW
7515399
9999999
Not Available
12
WASHER-1/2 INT LK-(1224)-Z
7556377
$6,29 Unit Price incl. VAT
13
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
14
BRKT-REG PLATETOURING QUADBK
5251799067
Not Available
15
LICENSE PLATE LIGHT; BLACK
2410629
9999999
Not Available
16
SPCR-LP LIGHT;5.0X8.0X4.0;AL
5134403
$6,29 Unit Price incl. VAT
17
SPACER-LP LIGHT
5812520
9999999
Not Available
18
NYLOK NUT
7546601
$2,09 Unit Price incl. VAT

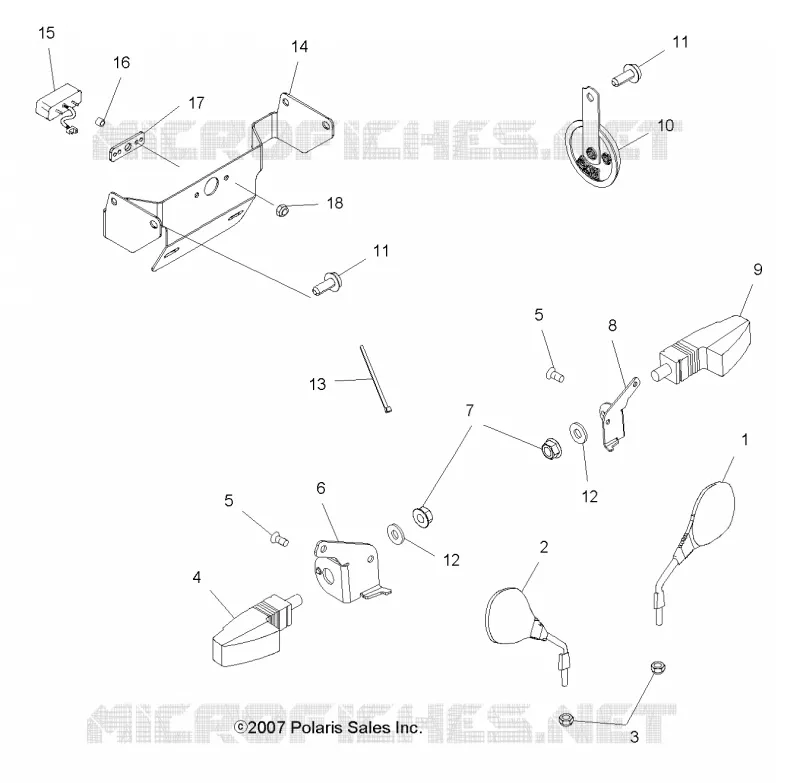

Find the detailed TURN SIGNALS, HORN and MIRRORS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
