1
Engine displacement
500
2
Year
1991
3
Trim
500 SP - 0910664
4
Parts Catalog
OIL PUMP 500 AND 500 CLASSIC (4919251925028A)
5
Parts Diagram
Parts Catalog
RECOIL STARTER 500 AND 500 CLASSIC (4919251925027A)
by
FUEL PUMP 500 AND 500 CLASSIC (4919251925029A)
OIL PUMP 500 AND 500 CLASSIC (4919251925028A)
1
PUMP OIL (Incl. 2-91
3083964
Not Available
2
NUT(10)
3083120
9999999
Not Available
3
WASHER-SPRING(10)
3083121
1205792
$614,24 Unit Price incl. VAT
4
LEVER CONTROL
3083965
Not Available
5
SPRING-RETURN
3083123
9999999
Not Available
6
COLLAR; CAMSHAFT
3083404
9999999
Not Available
7
SCREW-AIR VENT
3083125
9999999
Not Available
8
PACKING(10)
3083126
9999999
Not Available
9
O-RING
3083127
9999999
Not Available
10
BUSHING
3083353
9999999
Not Available
11
SPACER
3083130
9999999
Not Available
12
GEAR SMALL
3083131
5141635
$141,74 Unit Price incl. VAT
13
ASM. SCREW & WASHER (10)
3083783
9999999
Not Available
14
PIPE RUBBER(L=145) Substituted by 3083534
3083163
Not Available
15
HOSE CLAMP
3083141
$2,09 Unit Price incl. VAT
16
VALVE CHECK
3083894
9999999
Not Available
17
BANJO BOLT
3083137
9999999
Not Available
18
GASKET; ALUMINUM
3083138
7555998
$2,09 Unit Price incl. VAT
19
SPACER 3.6MM
3083673
5141621
$8,39 Unit Price incl. VAT
19
SPACER 2.3 MM
3083672
5141620
$6,29 Unit Price incl. VAT
19
SPACER 1.15MM
3083671
5141619
$6,29 Unit Price incl. VAT

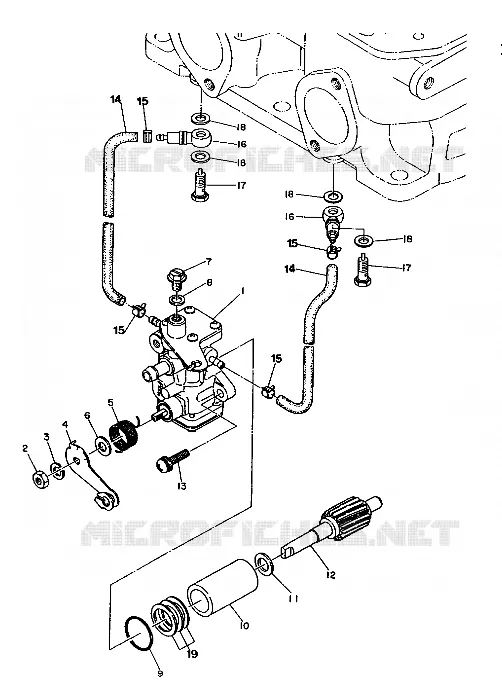

Find the detailed OIL PUMP 500 AND 500 CLASSIC (4919251925028A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
