1
Engine displacement
500
2
Year
1992
3
Trim
500 SP EFI - 0920674
4
Parts Catalog
RECOIL STARTER 500 SP/500 SKS (4921262126042A)
5
Parts Diagram
Parts Catalog
PISTON AND CRANKSHAFT 500 SP/500 SKS (4921262126041A)
by
EFI PARTS 500 SP/500 SKS (4921262126048A)
RECOIL STARTER 500 SP/500 SKS (4921262126042A)
3
SPIRAL SPRING
3083376
3023393
$278,24 Unit Price incl. VAT
4
REEL ASSEMBLY
3083377
$104,99 Unit Price incl. VAT
5
RATCHET
3083378
9999999
Not Available
6
RETURN SPRING
3083463
9999999
Not Available
7
FRICTION SPRING
3083379
9999999
Not Available
8
FRICTION PLATE
3083464
9999999
Not Available
9
NUT FLANGE(10)
3083381
9999999
Not Available
10
ROPE GUIDE
3083107
3040171
$6,08 Unit Price incl. VAT
11
100 FT. NYLON STARTER ROPE
2870621
$47,24 Unit Price incl. VAT
12
PULLEY; STARTING
3083312
9999999
Not Available
13
BOLT&WASHER ASM.
3083382
9999999
Not Available
14
BOLT&WASHER ASM.
3084224
9999999
Not Available
15
CLAMP
3083384
9999999
Not Available
16
WASHER
3082520
9999999
Not Available

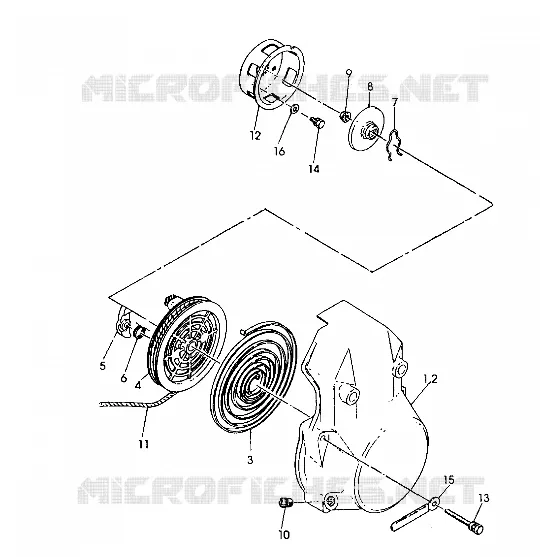

Find the detailed RECOIL STARTER 500 SP/500 SKS (4921262126042A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
