OIL PUMP ASSEMBLY (4914771477034A)
5
Parts Diagram
Parts Catalog
CRANKSHAFT AND PISTON ASSEMBLY (4914771477033A)
by
BODYWORK (4914771477001A)
OIL PUMP ASSEMBLY (4914771477034A)
1
2
3
4
5
6
7
8
9
10
11
11
11
11
12
13
13
13
14
15
16
17
18
19
20
22
23
24
25
26
27
27
27
27
27
28
28
28
28
29
29
29
29
29
30
30
31
32
33
33
33
33
34
34
34
34
35
36
37
38
39
39
39
39
40
41
42
43
44
45
46
47
1
2
3
4
5
6
6
6
6
6
6
6
6
6
7
8
9
10
11
12
13
14
14
15
16
17
1
OIL PUMP ASM. Substituted by 3085542 (F1B) (Incl. 4 5 7 13-18)
3083806
Not Available
1
SEAT ASM;(350-2X4)
2681466
9999999
Not Available
2
NUT(10)
3083120
9999999
Not Available
2
DECAL(CPSC) WARN HVY.LOAD [No Longer Available]
7072786
Not Available
3
COVER SEAT(2X4-350)
2681467
Not Available
3
WASHER-SPRING(10)
3083121
1205792
$614,24 Unit Price incl. VAT
4
LATCHSEAT
1011558
9999999
Not Available
4
SCREW-AIR VENT
3083125
9999999
Not Available
5
SPRING; LATCH
7041158
9999999
Not Available
5
PACKING(10)
3083126
9999999
Not Available
6
SPACER 3.6MM
3083673
5141621
$8,39 Unit Price incl. VAT
6
BRACKET; LEVER RETAINER
5211033
9999999
Not Available
6
SPACER 2.3 MM
3083672
5141620
$6,29 Unit Price incl. VAT
6
SPACER 1.15MM
3083671
5141619
$6,29 Unit Price incl. VAT
7
O-RING
3083127
9999999
Not Available
7
BLIND RIVET
7621403
$2,09 Unit Price incl. VAT
8
BUSHING
3083353
9999999
Not Available
8
BUMPER RUBBER
5410414
$6,29 Unit Price incl. VAT
9
CAP
3083758
9999999
Not Available
9
DECAL(CPSC) PASS.WRN. [No Longer Available]
7072805
Not Available
10
BOLT
7512232
$2,09 Unit Price incl. VAT
10
SPACER
3083428
9999999
Not Available
11
GEAR SMALL
3083429
9999999
Not Available
11
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
12
CAB REAR
5431271143
Not Available
12
ASM. SCREW & WASHER (10)
3083783
9999999
Not Available
13
SPEED NUT
7670060
9999999
Not Available
13
PIPE RUBBER Substituted by 3083446
3083139
Not Available
14
HOSE CLAMP
3083141
$2,09 Unit Price incl. VAT
14
DECAL 2X4 350L [No Longer Available]
7072857
Not Available
15
DECAL(CPSC) AGE WARN. Substituted by 7074827
7072933
Not Available
15
LEVER CONTROL
3083935
Not Available
16
SPRING-RETURN
3083123
9999999
Not Available
16
COVER FUEL TANK Substituted by 5431263-143
5431264119
Not Available
17
COLLAR CAMSHAFT
3083757
9999999
Not Available
17
COVER OIL TANK&H/L
5431202143
Not Available
18
DECAL(CPSC) WARNING Substituted by 7073147
7072720
Not Available
19
DECAL WARNING(CPSC) [No Longer Available]
7072693
Not Available
20
EMBLEM 35 YR.(ATV) [No Longer Available]
5431199
Not Available
22
CAB FR GRY(4WHL) Substituted by 2631549-143
5431248143
Not Available
23
DECAL SIDE PANEL [No Longer Available]
7072884
Not Available
24
LABEL #U.S.A.# [No Longer Available]
7073025
Not Available
25
DECAL(CPSC)TIRE PRESS.
7073069
9999999
Not Available
26
CLIP; PUSH-ON
7670052
9999999
Not Available
27
BOLT BLACK
7512282
9999999
Not Available
28
MUDFLAP FRONT RH
5850092
9999999
Not Available
28
MUDFLAP LH FRONT
5850082
9999999
Not Available
29
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
30
BRKT; MUD FLAP
5211131
9999999
Not Available
31
PLUG RUBBER-HOLE .5DIA
5410012
9999999
Not Available
32
DECAL(CPSC) WARN R.RACK [No Longer Available]
7072788
Not Available
33
MUDFLAP LH LOW REAR
5850076
Not Available
33
MUDFLAP RH LOW REAR
5850077
9999999
Not Available
34
COVER LH (WINE)SIDE Substituted by 5433382-111
5430970111
Not Available
34
COVER RH(WINE)SIDE
5430971111
Not Available
35
DECAL FILTER ELEMENT [No Longer Available]
7072791
Not Available
36
BRKT REAR HOLDDOWN
5220880
9999999
Not Available
37
TAPE FOIL R.CAB (Inside)
5810416
Not Available
38
MUDFLAP RH REAR Substituted by 5850090-070
5850090
Not Available
39
TAPE FOIL
5810310
9999999
Not Available
39
MUDFLAP;LH REAR
5850089
9999999
Not Available
40
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
41
LID TOOL BOX
5430769092
Not Available
42
STRAP TOOL COMPARTMENT
5410425
9999999
Not Available
43
CLIP LID HINGE
7670050
9999999
Not Available
44
BOX TOOL COMP.
5430882
9999999
Not Available
45
RIVET
7621462
$2,09 Unit Price incl. VAT
46
GROMMET
5410413
Not Available
47
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT

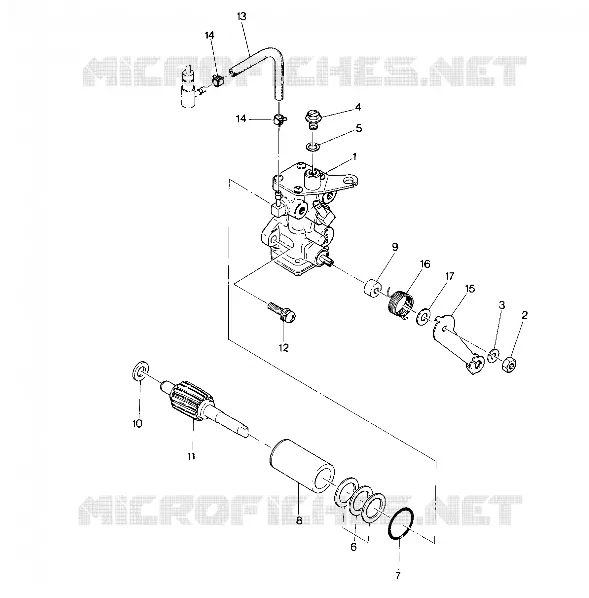

Find the detailed OIL PUMP ASSEMBLY (4914771477034A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
