SUSPENSION, REAR TORQUE ARM for POLARIS 800 INDY 129 XCR from 2020

SUSPENSION, REAR TORQUE ARM

1

TRAILING ARM; REAR; BLACK

1543906329

Not Available

2

PLAIN WHEEL ASSEMBLY

1590001

$141,74 Unit Price incl. VAT

2

BEARING-6007

3514445

1590001

$141,74 Unit Price incl. VAT

2

RING-RETAINING

7710486

9999999

Not Available

3

WASHER

7555939

9999999

Not Available

4

TORSION SPRING SLEEVE

5434989

$7,34 Unit Price incl. VAT

5

NUT-HH M10X1.5 NYLOC ZOD

7547442

$7,34 Unit Price incl. VAT

6

WASHER 10.5 X 24 X 1.2446

7556545

$6,29 Unit Price incl. VAT

7

SHAFT-RTA MOUNT

5141400

$26,24 Unit Price incl. VAT

8

CRANK BUSHING

5438876

$13,64 Unit Price incl. VAT

9

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$12,59 Unit Price incl. VAT

10

SCR-M8X1.25X65-HX/FL-Y CL 10.9

7519212

$9,44 Unit Price incl. VAT

11

ASM-ARM 83.2 NARROW

1544129

$73,49 Unit Price incl. VAT

12

WASHER-.344X.688X.063 FL-ZOD

7556524

$1,56 Unit Price incl. VAT

13

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

14

RIGHT HAND TORSION SPRING .375; BLACK

7045210329

Not Available

14

SPRING-TOR .359S 80 11# LH BLK

7045190329

Not Available

14

TORSION SPRING; BLACK

7045209329

Not Available

14

TORSION SPRING .375S 80 RIGHT SIDE BLACK

7045208329

Not Available

14

SPRING-TOR .359S 80 11# RH BLK

7045191329

Not Available

14

TORSION SPRING .375/80/13 LFT SIDE BLK

7045207329

Not Available

15

SPACER-.520X.770X1.125 HDPE

5334285

$4,19 Unit Price incl. VAT

16

ROLLER-SPRING TRI-ADJ LH

5434589

$68,24 Unit Price incl. VAT

16

ROLLER-SPRING TRI-ADJ RH

5434590

$62,99 Unit Price incl. VAT

17

PUSH ON CLIP

7080394

$4,19 Unit Price incl. VAT

18

HEX HEAD FLANGE BOLT 10MM X 1.5MM X230MM

7518472

$11,54 Unit Price incl. VAT

19

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

20

PULL ROD BUSHING

5142128

$15,74 Unit Price incl. VAT

21

SCREW

7519154

$13,64 Unit Price incl. VAT

22

ROD-SHOCK HD MACH

5142778

9999999

Not Available

23

SCR-HXFL-M8X1.25X65 8.8 ZOD

7519971

7521332-65

$3,14 Unit Price incl. VAT

24

SHOCK PIVOT ARM BUSHING

5142127

$20,99 Unit Price incl. VAT

25

SHOCK PIVOT ARM WELD; BLACK

1544017329

Not Available

26

WASHER-FL 8.4X16.0X.91 HRD ZOD

7557059

$6,29 Unit Price incl. VAT

27

HEX NUT; 8 MM X 1.25 MM

7547480

$4,19 Unit Price incl. VAT

28

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

29

PULL ROD BUSHING

5142128

$15,74 Unit Price incl. VAT

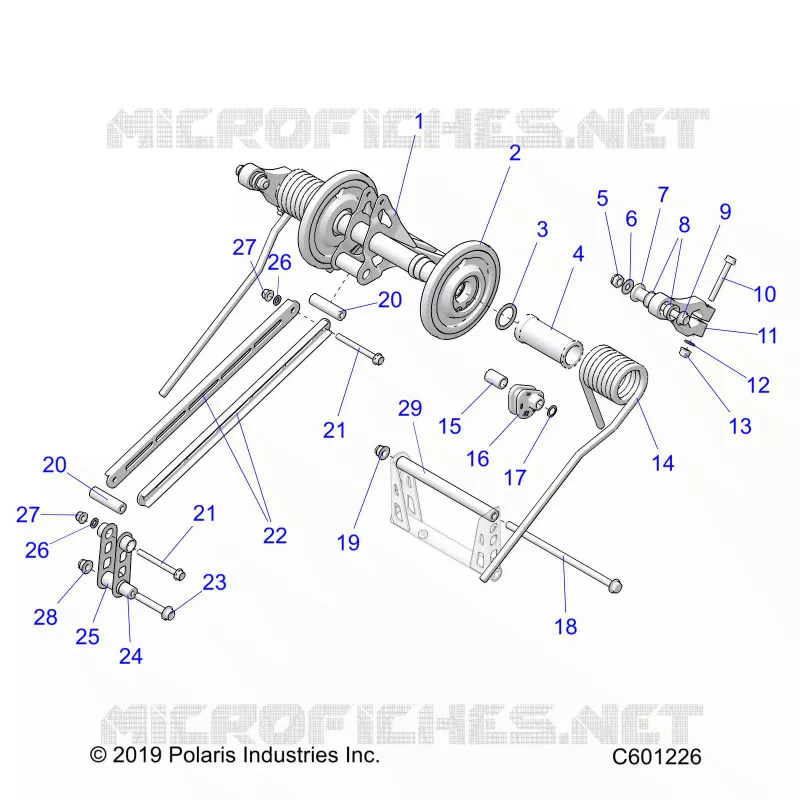

Find the detailed SUSPENSION, REAR TORQUE ARM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
