CHASSIS, BULKHEAD ASM. for POLARIS 550 INDY LXT ES from 2019

CHASSIS, BULKHEAD ASM.

-

LORD 406 REPAIR KIT; 50 ML

2204171

2830614

$517,64 Unit Price incl. VAT

-

MIXING NOZZLES KIT

2204172

2830615

$14,69 Unit Price incl. VAT

-

ADJESIVE CARTRIDGE KIT

2204400

672204400

Not Available

1

SCREW

7516732

$3,14 Unit Price incl. VAT

2

DART CLIP

7670067

$7,34 Unit Price incl. VAT

3

ASM-CLIP F/C;RH

1018222

$635,24 Unit Price incl. VAT

4

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

5

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$11,54 Unit Price incl. VAT

6

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

7

BRACE LOWER RIGHT MACHINED

5138693

$167,99 Unit Price incl. VAT

8

FLOOR-BULKHEAD VENTED

5256779

$47,24 Unit Price incl. VAT

9

FLOOR VENT

5256780

$83,99 Unit Price incl. VAT

10

RIVET

7661637

$2,09 Unit Price incl. VAT

11

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$7,34 Unit Price incl. VAT

12

TUBE-CROSS M10X1.5 377.44MM

5137910

$99,74 Unit Price incl. VAT

13

BRACE LOWER LEFT ASSEMBLY

1017942

$125,99 Unit Price incl. VAT

14

FENDER CLIP ASSEMBLY; LEFT

1018221

$635,24 Unit Price incl. VAT

15

HEX FLANGE SCREW; 8 MM X 1.25 MM X 25 MM

7519243

$7,34 Unit Price incl. VAT

16

BRKT-PIPE/CHASSIS

5252680

$10,49 Unit Price incl. VAT

17

WHEEL STUD; 8 MM X 1.25 MM X 48

7519204

$36,74 Unit Price incl. VAT

18

REINFORCEMENT-CLIP PLATED LH

5255215

$62,99 Unit Price incl. VAT

18

REINFORCEMENT-CLIP RH

5255216

$41,99 Unit Price incl. VAT

19

TIE ROD BOOT

5414360

$73,49 Unit Price incl. VAT

20

PLATE-BOOT SEAL;RH;BLK

5255479067

Not Available

20

PLATE-BOOT SEAL;LH;BLK

5255478067

Not Available

21

SCR-M8X1.25X30 8.8 TR/TX ZOD

7518953

$3,14 Unit Price incl. VAT

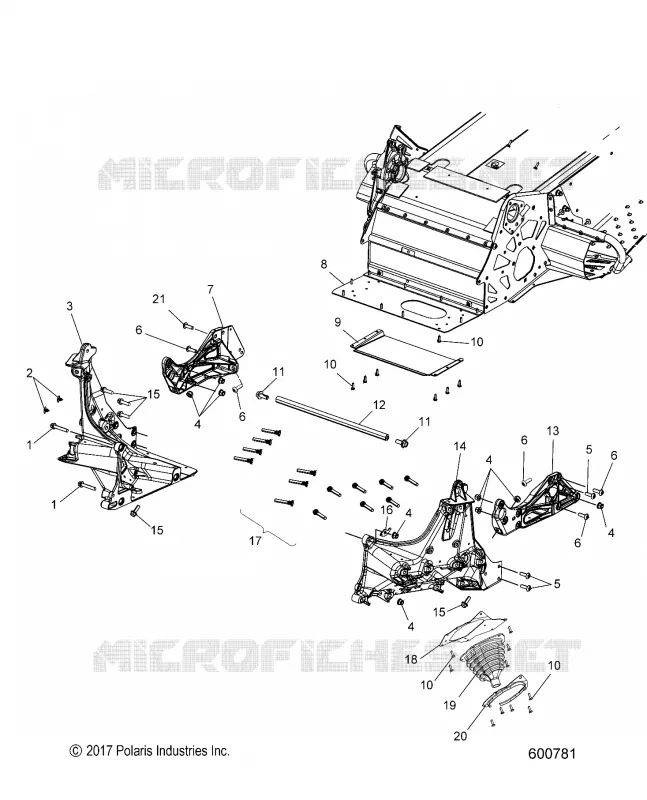

Find the detailed CHASSIS, BULKHEAD ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
