1
Engine displacement
500
2
Year
2001
3
Trim
500 WIDETRAK LX
4
Parts Catalog
NOSEPAN
5
Parts Diagram
Parts Catalog
SEAT GAS TANK
by
NOSEPAN
NOSEPAN
1
2
3
3
4
4
5
5
5
6
7
8
8
8
8
9
10
10
11
12
12
12
12
13
13
13
13
14
15
16
16
16
16
17
18
19
20
20
21
22
22
23
24
24
24
25
26
27
1
2
3
3
4
4
5
5
5
6
7
8
8
8
8
9
10
10
11
12
12
12
12
13
13
13
13
14
15
16
16
16
16
17
18
19
20
20
21
22
22
23
24
24
24
25
26
27
1
BRACE HINGE; MEDIUM GLOSS BLACK
1012783067
Not Available
2
FOIL TAPE 1 X15
5811747
9999999
Not Available
3
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
4
BOLT
7512276
$9,44 Unit Price incl. VAT
5
POP RIVET
7621402
$2,09 Unit Price incl. VAT
6
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
7
NYLON WASHER
7555932
$4,19 Unit Price incl. VAT
8
GUIDE HOOD LH
5243007
9999999
Not Available
8
GUIDE HOOD RH
5243006
9999999
Not Available
9
RIVET
7621472
$2,09 Unit Price incl. VAT
10
RIVET (50)
7621601
1015421
$3,66 Unit Price incl. VAT
11
HOOD LATCH STRAP
5410370
$47,24 Unit Price incl. VAT
12
PAN BRACE; RIGHT
5220523067
Not Available
12
PAN BRACE LEFT
5220522067
Not Available
13
CAP BUMPER LH BLK.
5432887
9999999
Not Available
13
CAP BUMPER RH BLK.
5432888
9999999
Not Available
14
BOLT SOCKET HEAD
7512290
$9,44 Unit Price incl. VAT
15
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
16
EXTRUSION-BUMPER FORM LH BLK
5243818067
Not Available
16
EXTRUSION-BUMPER FORMED RH BLK
5243461067
Not Available
17
RIVET
7661637
$2,09 Unit Price incl. VAT
18
BRKT HOSE PROTECTOR
5243418
9999999
Not Available
19
SHIELD-SHOCK TOWER
5243287
9999999
Not Available
20
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
21
PAN BRACE; LOWER; MEDIUM GLOSS BLACK
5242575067
Not Available
22
RIVET(10)
7621463
7621429
$2,09 Unit Price incl. VAT
23
BUMPER FR HYB BLK.
5432891
9999999
Not Available
24
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
25
BRACE-PAN UPPER
5243073
9999999
Not Available
26
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
27
BOLT KIT
7515175
$7,34 Unit Price incl. VAT

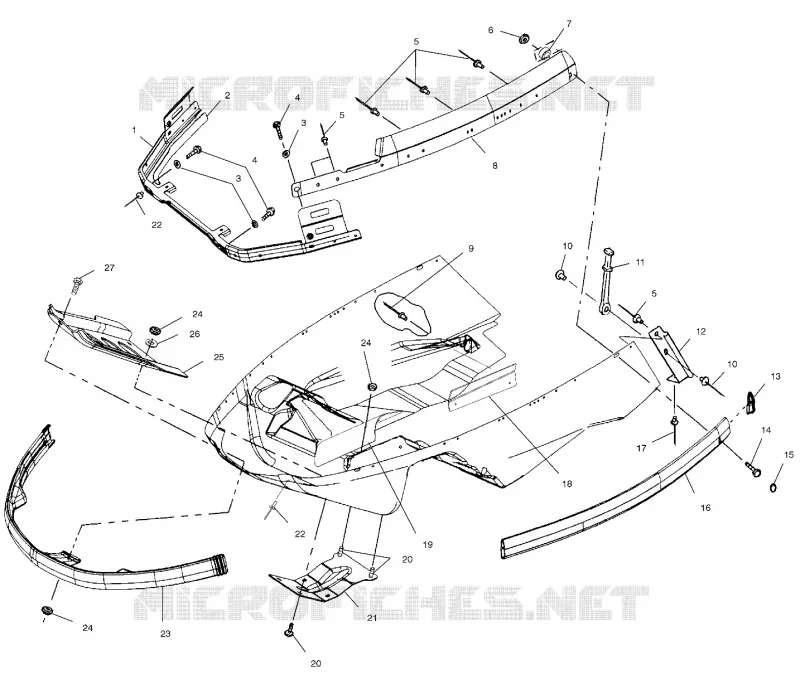

Find the detailed NOSEPAN POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
