IFS SHOCK (7043206) for POLARIS 700 CLEANFIRE DRAGON from 2007

IFS SHOCK (7043206)

1

HOSE ASSEMBLY; 9 IN

1800192

9999999

Not Available

2

LOOP-BODY

1800098

9999999

Not Available

3

END BEARING

1800040

$152,24 Unit Price incl. VAT

3

END CAP SNAP RING

1800041

$15,74 Unit Price incl. VAT

4

SCREW ALLEN (100338)

1800299

9999999

Not Available

5

BOLT; NEEDLE (600124)

1800301

9999999

Not Available

6

O-RING BODY

1800027

$3,66 Unit Price incl. VAT

7

BODY (600152)

1800304

9999999

Not Available

8

NEEDLE 2.25 (100114)

1800300

9999999

Not Available

9

SPRING RETAINER

1800046

$68,24 Unit Price incl. VAT

10

CRIMP NUT 3/8 IN

1800031

$7,34 Unit Price incl. VAT

11

TEFLON WEAR BAND

1800297

$62,99 Unit Price incl. VAT

12

WEAR SLEEVE

1800047

$73,49 Unit Price incl. VAT

13

SHAFT SEAL U CUP

1800035

9999999

Not Available

14

D/TYPE WIPER

1800034

$68,24 Unit Price incl. VAT

15

ASM-SHAFT SEAL HOUSING

1800131

9999999

Not Available

16

SHAFT 5/8 IN

1800303

9999999

Not Available

17

SPRING RETAINING RING

1800116

$120,74 Unit Price incl. VAT

18

EYELET

1800103

9999999

Not Available

19

O-RING SHAFT SEAL HEAD (10)

1800037

$3,14 Unit Price incl. VAT

20

CONVEX PISTON WITH BAND ASSEMBLY

1800130

9999999

Not Available

21

BODY-RESERVOIR 4.5

1800120

9999999

Not Available

22

O-RING RESERVOIR

1800028

$3,14 Unit Price incl. VAT

23

RESERVOIR SNAP RING (10)

1800019

9999999

Not Available

24

O-RING(10)

1800108

9999999

Not Available

25

SCREW-BUTTON HEAD 8/32(10)

1800109

$6,29 Unit Price incl. VAT

25

VALVE-NEEDLE

1800107

9999999

Not Available

26

END CAP

1800106

9999999

Not Available

27

KNOB

1800218

$104,99 Unit Price incl. VAT

28

SCREW

1800203

9999999

Not Available

29

O-RING KNOB

1800221

9999999

Not Available

30

BLEED SCREW

1800211

9999999

Not Available

30

O-RING BLEED SCREW

1800210

$3,14 Unit Price incl. VAT

30

PISTON-RES. W/BLEED SCREW

1800214

9999999

Not Available

31

PISTON

1800217

9999999

Not Available

32

SCREW W/THRU HOLE

1800219

$20,99 Unit Price incl. VAT

33

BALL-D-TENT(10)

1800127

$12,59 Unit Price incl. VAT

34

HOUSING-ADJ.

1800220

9999999

Not Available

35

SPRING-D-TENT(10)

1800128

$20,99 Unit Price incl. VAT

35

BALL-D-TENT(10)

1800127

$12,59 Unit Price incl. VAT

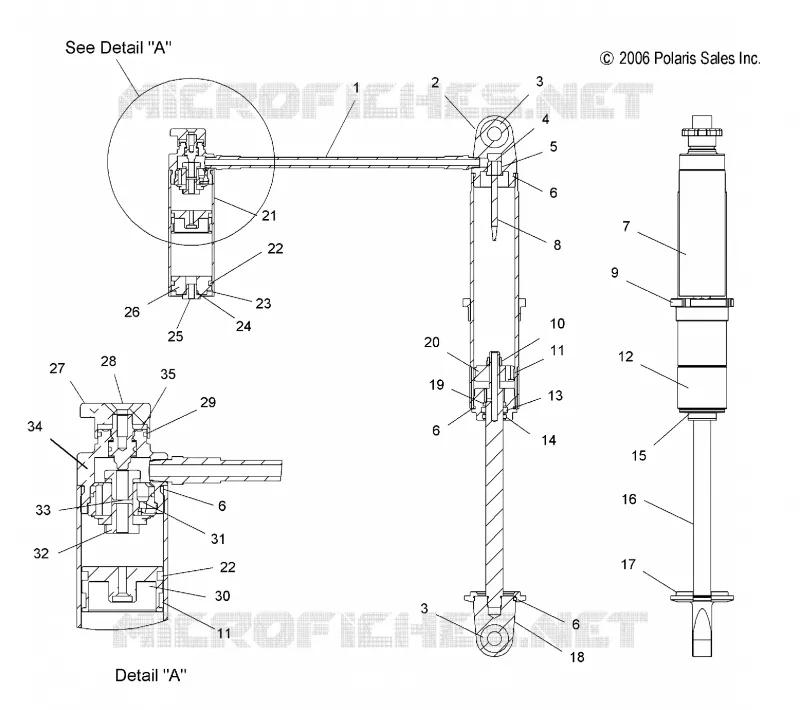

Find the detailed IFS SHOCK (7043206) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
