RANGER 4X4 500 EFI - R10TH50AG/AR
4
Parts Catalog
CHASSIS, FRAME AND FRONT BUMPER
5
Parts Diagram
Parts Catalog
BRAKES, LINES AND MASTER CYLINDER
by
DRIVE TRAIN, CLUTCH COVER
CHASSIS, FRAME AND FRONT BUMPER
1
1
1
1
1
1
1
1
1
2
3
4
5
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
19
20
21
22
1
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
2
WELD-CAB/SEAT BASEBLK
1017380067
Not Available
3
FLOOR SUPPORT WELD; RIGHT; BLACK
1016255329
Not Available
4
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
5
M10 X 1.25 X 60 SCREW
7518563
$5,76 Unit Price incl. VAT
6
SCR-1/4-20X1/2 TR/TX/TAP/R B
7518981
$7,34 Unit Price incl. VAT
7
WELD-CAB SUPPORTFRTBLK
1017325067
Not Available
8
WELD-FLOOR SUPPORT;500;LH;BLK
1016412329
Not Available
9
WELD-MAIN FRAMEBLK
1017345067
Not Available
10
BOLT-M10X1.5X75 HX HD FLG
7518473
$9,44 Unit Price incl. VAT
11
BUMPER CAP
5434191
$12,59 Unit Price incl. VAT
12
FASCIA SCREEN; GLOSS BLACK
5438241070
Not Available
13
SCR-10-24X3/4 PH/TX/TRI-SEMS Y (10)
7518196
$2,09 Unit Price incl. VAT
14
BUMPER SCREEN; UPPER; GLOSS BLACK
5438240070
Not Available
15
SCREW
7517281
$13,64 Unit Price incl. VAT
16
BUMPER GUARD BRACKET; GLOSS BLACK
5438181070
Not Available
17
FRONT BUMPER WELDMENT; BLACK ENGINE
1016310521
Not Available
18
BRKT-OIL TANKSUPPORTBLK
5253891329
Not Available
19
HEX FLANGE NUT; 10 MM X 1.5 MM
7547313
$2,09 Unit Price incl. VAT
20
FOAM-HOOD SUPPORT
5813421
9999999
Not Available
21
SCREW #14 X 1 HI/LO
7518158
$9,44 Unit Price incl. VAT
22
SCREW
7517317
$6,29 Unit Price incl. VAT

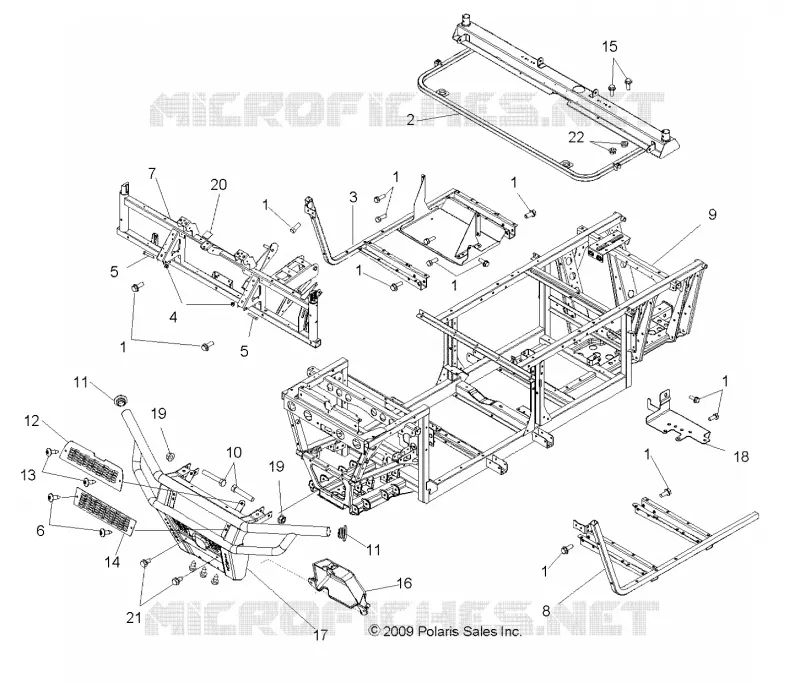

Find the detailed CHASSIS, FRAME AND FRONT BUMPER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
