REAR SUSPENSION for POLARIS 600 IQ LXT from 2012

REAR SUSPENSION

1

CLIP-TRACK FLAT 012-0107 (10

5251273

$18,89 Unit Price incl. VAT

1

TRACK 136"X1.352 COBRA

2877378

9999999

Not Available

1

HACKSAW TRACK 136 IN X 15 IN X 1 IN

5413318

9999999

Not Available

1

LONG GUIDE TRACK CLIP

5251274

$13,64 Unit Price incl. VAT

2

NYLOK NUT

7547263

$6,29 Unit Price incl. VAT

3

SPACER; IDLER

5432535

$20,99 Unit Price incl. VAT

4

BUSHING

7555918

$3,14 Unit Price incl. VAT

5

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

5

ASSEMBLED WHEEL; GLOSS BLACK

1590388070

Not Available

5

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

6

IDLER SPACER; LONG

5333285

$20,99 Unit Price incl. VAT

7

ILDER SHAFT

5020744

9999999

Not Available

8

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

8

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

8

ASM-WHEEL SCRL 7.25 6004 BRSLV

1590388244

Not Available

9

WASHER .406 X 1.25 X .125

7556130

$11,54 Unit Price incl. VAT

10

BOLT 3/8-16X1.25(10)

7517731

$2,09 Unit Price incl. VAT

11

SCR-3/8-24X9.875 HX/LP GR8-Y

7517921

$41,99 Unit Price incl. VAT

12

WASHER .390 IN X .750 IN X .0

7556188

9999999

Not Available

13

WASHER FLAT(10)

7555893

$1,56 Unit Price incl. VAT

14

REAR PIVOT ARM;4.00;BLK

1541928067

Not Available

15

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

16

SHAFT

5333404

$47,24 Unit Price incl. VAT

17

WASHER .385 X 88 X .075

7556242

$4,19 Unit Price incl. VAT

18

PIVOT ARM SHAFT; 2.375; GS BLK

1542122067

Not Available

19

TUBE; .397 X .562 X 8.515; NITRIDE

5334162

9999999

Not Available

20

ZERK FITTING

7080510

$10,49 Unit Price incl. VAT

21

SHAFT .795 X 8.665

5134517

$52,49 Unit Price incl. VAT

22

H-BRACKET WELD; BLACK

1542465329

Not Available

23

SCR-3/8-16X1.50-HX/CP-GR5-P80Y

7518005

$5,76 Unit Price incl. VAT

24

SHAFT-C BORE;.688X8.665;2045

5134078

$62,99 Unit Price incl. VAT

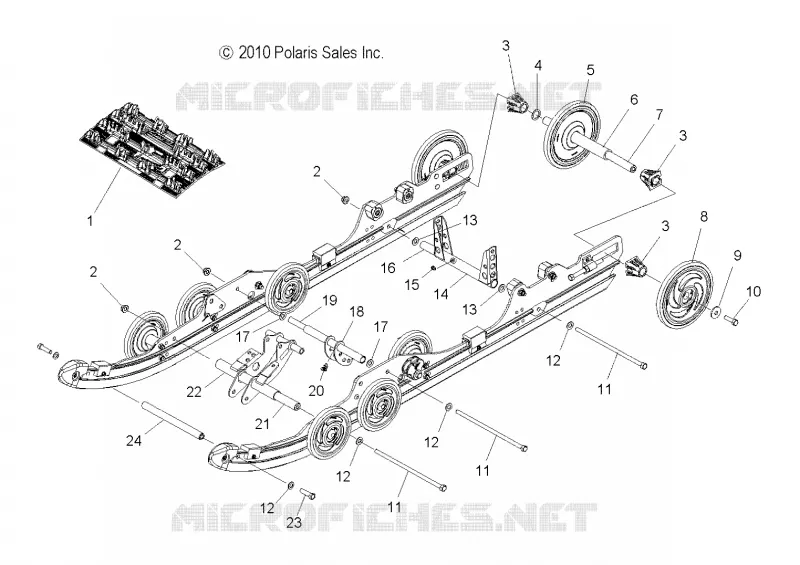

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
